INTRODUCTION

Nanoscience encompasses the study and manipulation of nanomaterials, which display feature sizes of < 100 nm in at least one dimension.¹ Among nanomaterials, metals are particularly interesting due to their unique optical, chemical, and electronic properties that allow applications in areas such as plasmonics, catalysis, biomedicine, information storage, and sensing.^2,3

The optical and catalytic behavior of gold nanoparticles (Au NPs) relative to the bulk element represents a remarkable example of how properties change as we move from the macroscopic to the nanoscopic dimension.³ While the optical properties of Au NPs in the visible range have been exploited for centuries (such as in stained glass windows and the Lycurgus cup), the demonstration of their catalytic activity towards CO oxidation in 1987⁴ represented a milestone in the field of nanocatalysis, followed by a burst on the utilization of Au NPs as catalysts for a wide range of transformations.⁵

The catalytic activity of Au NPs is largely due to the increase in the particles surface-to-volume ratio.⁶ On the other hand, the unique optical properties of Au NPs arise from the interaction of their free electrons with light, in which the oscillating electric field component from the incoming electromagnetic wave drives the free electrons in the metal into collective oscillations, which is the surface plasmon resonance (SPR) excitation.^7-8 The SPR excitation leads to adsorption and scattering of the incident electromagnetic wave close to the resonance frequency (in the far field) as well as the generation of intense electromagnetic fields close to the surface of the nanostructure (in the near field).^9,10

It has been established that many properties (including optical and catalytic) in metal NPs are dependent upon several physical and chemical parameters that include size, shape, composition, and structure (solid or hollow interiors).¹¹ Thus, the understanding on how properties vary as a function of these parameters is crucial to optimize performance and enable new applications.

Although undergraduate level laboratory experiments have been proposed on the synthesis of metal nanoparticles and investigation of their optical and/or catalytic properties,^12-21 activities in which students can establish a correlation between size and observed properties remain limited. Here, we present an undergraduate level experiment in which the students synthesize Au NPs having three different sizes, followed by an investigation on how their optical and catalytic properties change as a function of size. Specifically, the proposed experiment consists of three main parts. In the first, students perform the synthesis of three Au NPs samples having increasingly bigger sizes by a seeded growth approach. In the second, students qualitatively and quantitatively investigate the variations in the optical properties due to the formations of Au NPs and also as a function of their size (by both visual inspection and UV-VIS spectroscopy). In the third, students employ the hydrogenation of 4-nitrophenol by sodium borohydride as a model reaction to investigate the size-dependent catalytic activity of the synthesized Au NPs.²² This activity should be performed by groups of two or three students in three lab sessions of 3 h each. The first, second and third lab sessions should be organized as follows: i) the synthesis of Au NPs having different sizes and investigation of their optical properties; ii) evaluation of the catalytic activity; and iii) data analysis and discussion. This experiment covers concepts on the synthesis, stabilization, and characterization of Au NPs, their size-dependent optical and catalytic properties at the nanoscale, chemical kinetics, and the role of catalyst.

Experimental overview

Full experimental details regarding the synthesis of Au NPs having different sizes, the investigation of their optical properties and catalytic activity are given in the student guide. In summary, the synthesis of aqueous suspensions containing Au NPs 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm in diameter was performed by a seeded growth approach.²³ The change in optical properties due to the formation of Au NPs as compared to the AuCl₄^- precursor solution and the bulk metal should be first detected by visualizing the change in color for the suspension containing the Au NPs relative to the solution containing the AuCl₄^- precursor. Furthermore, the size dependent optical properties of the Au NPs can be directly visualized as the change in color of the Au NPs suspensions, in which the red color becomes darker as the size of the Au NPs increases. In order to quantify the change in optical properties due to the formation of Au NPs and also their dependence on size, UV-VIS spectra in the 300-800 nm range were obtained from an aqueous solution containing the AuCl₄^- precursor and also from aqueous suspensions containing the Au NPs. The catalytic activities as a function of Au NPs size was investigated employing the hydrogenation of 4-nitrophenol to 4-aminophenol as a model reaction. In this case, the reaction kinetics was monitored by UV-VIS spectroscopy in the 350 to 500 nm range,^24,25 in which the variations in the absorbance at 400 nm were monitored as a function of time. The same concentration of Au was employed in all cases.

Hazards

Chloroauric acid trihydrate is corrosive and hygroscopic. It can cause eyes and skin burns upon contact. It also causes gastrointestinal tract burns if swallowed and burns to the respiratory tract by inhalation. Sodium citrate may cause irritation to skin, eyes, and respiratory tract. Sodium borohydride is flammable and toxic. It is also a strong reducing agent, is corrosive, and may cause burns to any area of contact. 4-nitrophenol is poisonous via inhalation, swallowing, and contact with the skin. The experiment described in this work uses dilute solutions, which may be prepared ahead of time to minimize the risk that the solids and concentrated solutions pose to students. Labeled waste containers should be made available. Gloves, lab coat, and safety glasses should be worn throughout the experiment. All laboratory exercises should be carried out under the supervision of trained and qualified personnel.

Student learning objectives

The key learning objectives of this multidisciplinary experiment are: i) synthesis of metal nanoparticles with controlled sizes; ii) stabilization of nanoparticles; iii) introduce the concept of surface plasmon resonance to describe the unique optical properties of Au NPs in the visible range, which gives a visual example on the change in properties in nanoscaled systems relative to their macroscopic counterparts; iv) chemical kinetics (pseudo-first-order rate laws, role of catalyst, calculation of rate constants and turnover frequencies); and v) investigation of Au NPs optical properties and catalytic activities as a function of size.

RESULTS AND DISCUSSION

Part 1 - Synthesis of Au NPs and size-dependent optical properties

Figure 1A-C shows TEM images for the Au NPs samples obtained after the three stages of growth. First, Au NPs seeds were obtained by the reduction of AuCl₄^-_(aq) in the presence of citrate,²³ as depicted in Figure 1A. Then, they served as physical templates for further Au growth by producing Au NPs that are larger in diameter relative to the Au NPs seeds (Figure 1B). Similarly, a second deposition step was carried out employing the Au NPs obtained after the first deposition step as seeds for further growth (Figure 1C). As shown in the TEM images (Figure 1A-C), the diameter of the Au NPs corresponded to 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm for the Au NPs seeds, Au NPs after the first deposition step and, Au NPs after the second deposition step, respectively. This result indicates that the described approach was effective to produce Au NPs with well-controlled sizes. It is important to note that, in all cases, the Au NPs were spherical and relatively monodisperse.

Figure 1. TEM images of Au NPs seeds (A) and Au NPs after the first (B) and second (C) deposition steps. In (A-C), the Au NPs diameters corresponded to 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm, respectively

Figure 2A shows digital photographs from the starting AuCl₄^-_(aq) solution (shown on the left) and aqueous suspensions containing Au NPs 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm in diameter (shown from left to right, respectively). The red color displayed by the suspensions containing Au NPs (while the solution containing AuCl₄^- was light yellow) illustrate the change in optical properties due to the formation of Au NPs. The vivid color difference between bulk and nanosized Au NPs makes the SPR excitation easy to measure and visually appealing to undergraduate students. It can also be visualized that the Au NPs suspension became gradually darker as their size was increased. The UV-VIS extinction spectra are in agreement with these observations (Figure 2B). While the starting AuCl₄^-_(aq) solution did not display any detected signals in the visible range in the employed concentration range, all Au NPs displayed a relatively broad band centered at 522 nm. This band is assigned to the dipole mode of the localized surface plasmon resonance (LSPR) excitation in Au NPs.²³ The LSPR band became more intense with size as expected from the increased contribution from scattering to the extinction.¹⁶ Therefore, both the digital photographs and UV-VIS spectra could be employed to illustrate the size-dependent optical properties of Au NPs.

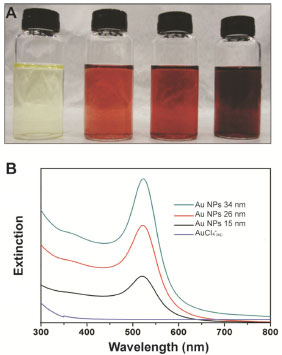

Figure 2. (A) Digital photographs of the AuCl₄^-_(aq) solution and aqueous suspensions containing Au NPs 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm in diameter (shown from left to right, respectively). (B) UV-VIS extinction spectra recorded for the AuCl₄^-_(aq) solution and aqueous suspensions containing Au NPs 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm in diameter (blue, black, red, and green traces, respectively)

As the described synthesis procedures are reproducible, only one set of samples (from one group, for example) can be submitted to TEM analysis so that the entire class can use the same TEM results. This can be performed from one week to another and be provided to the students for the second part of the experiment. In addition to TEM, the students can also calculate the NPs size from the UV-VIS extinction spectra according to the following equation:

where d is the diameter and λ the SPR wavelength.²⁶ Indeed, the results calculated from this equation agreed with those obtained from the TEM results (d = 14.8, 24.1, and 31.8 nm for Au NPs 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm, respectively).

Part 2 and 3 - Size-dependent catalytic activities and data analysis

The catalytic activities of Au NPs were evaluated employing the reduction of 4-nitrophenol by sodium borohydride as a model reaction. The hydrogenation of 4-nitrophenol was chosen due to several factors: i) it is well-established that it can be catalyzed by noble metal nanoparticles due to the particle-mediated electron transfer from borohydride ions to 4-nitrophenol;^24,25,27,28 ii) the product from this transformation, 4-aminophenol, is an important intermediate in the synthesis of analgesic and antipyretic drugs;²⁹ iii) wastewaters generated from several industries (such as explosives and dyestuffs) contain 4-nitrophenol;³⁰ and iv) the color changes associated with the conversion of 4-nitrophenol to 4-aminophenol enables one to easily monitor the reaction kinetics by UV-VIS spectroscopy,^25,27-29 Here, an excess of sodium borohydride was employed so that 4-nitrophenol is converted to 4-nitrophenolate ions, as shown in Figure 3A (the concentration of sodium borohydride was 2000 folds higher relative to 4-nitrophenol). This transformation is accompanied by a change in color from pale yellow to dark yellow as well as a shift in the absorbance peak from 317 nm (for 4-nitrophenol) to 400 nm (for 4-nitrophenolate ions) in the UV-VIS spectra (Figure 3B). Under this condition, the reaction kinetics approaches the pseudo-first-order regime, in which the variation in the concentration of sodium borohydride during the reaction becomes negligible. Thus, the decrease in the absorbance for the band at 400 nm can be employed to monitor the reaction kinetics (extent of the reaction) and the rate constants can be estimated from the slope of the linear correlation between ln(C_t/C₀) and time according to the following equation, which represents the pseudo-first-order rate law:

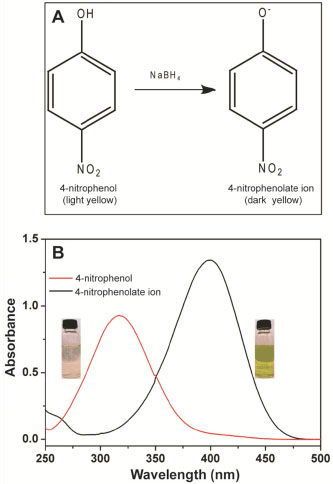

Figure 3. (A) Scheme for the formation of 4-nitrophenolate ions upon the addition of an excess of sodium borohydride to a 4-nitrophenol aqueous solution, leading to a change in color from light to dark yellow. (B) UV-VIS spectra and digital micrographs obtained from aqueous solutions of 4-nitrophenol (red trace) and 4-nitrophenolate ions (black trace)

where A_t correspond to the absorbance at 400 nm as a function of the time t; A₀ the initial absorbance, and k the rate constant. The pseudo-first-order rate law can be expressed as:

where C is the concentration, and integrated to give:

As the Beer-Lambert law gives:

where e is the molar absorptivity of the substance and b the optical path, Equation 2 is then obtained by replacing 5 into 4.

Figure 4 shows the plots of ln(C_t/C₀) and the UV-VIS absorption spectra as a function of time for the Au NPs that were 15 ± 2.2 (Figure 4A and B), 26 ± 2.4 (Figure 4C and D), and 34 ± 3.0 nm in diameter (Figure 4E and F). As all catalytic investigations were performed employing the same concentration of Au, and the differences in catalytic activity can be associated with the variations in size and thus available surface area for catalysis. In all cases, the decrease in the intensity of the band at 400 nm with time was observed due to the consumption of 4-nitrophenolate ions. It can be detected that the disappearance of the band at 400 nm became slower as the Au NPs size increased, in agreement with the decrease in catalytic activity with size. The calculated rate constants (k) decreased as the Au NPs size increased, and corresponded to 0.0150 ± 0.0008, 0.0146 ± 0.0012, and 0.0107 ± 0.0010 s^-1 for Au NPs 15 ± 2.2, 26 ± 2.4, and 34 ± 3.0 nm in diameter, respectively. Interestingly, the decrease in the catalytic activity as the size increased from 15 to 26 nm was less pronounced as compared to the decrease in catalytic activity as the size increased from 26 to 34 nm. It is noteworthy that no changes in the 400 nm band intensity were observed under similar conditions in the absence of Au NPs, indicating that the presence of the catalyst is essential for the reaction to take place in this timeframe (no reaction occurs in the absence of catalyst under similar conditions).

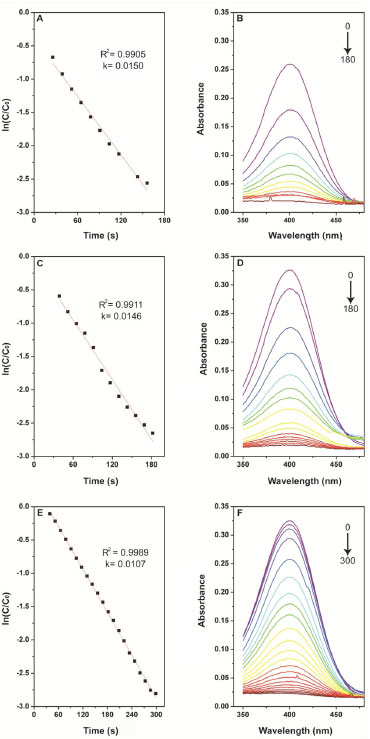

Figure 4. Plots of ln(C/C₀) and UV-VIS spectra recorded as a function of time at room temperature for Au NPs 15 ± 2 (A and B), 26 ± 2 (C and D), and 34 ± 3 nm in diameter (E and F). The rate constants (k) were calculated from the slope of the curves shown in red in (A), (C), and (E)

Another parameter that can be employed to describe the catalytic activity of Au NPs is the TOF (turnover frequency). The TOF can be defined as the number of completed catalytic cycles per atom of the catalyst as a function of time.³¹ Here, the TOF was calculated according to the equation 2:

where N_4NP denotes the amount in mols of 4-nitrophenol converted to 4-aminophenol, N_Au the amount in mols of Au, and t the time. N_4NP was calculated from a UV-VIS calibration curve for 4-nitrophenolate concentration as depicted in Figure 5A. Figure 5B shows the calculated TOF as a function of time for Au NPs. TOF values decreased with the increase in the Au NPs size, in agreement with the decrease in catalytic activity with size. In this case, while a slight decrease in the TOF values was observed as the Au NPs size increased from 15 to 26 nm, TOFs for Au NPs 34 nm in diameter were notably smaller. While Au NPs 15 and 26 nm in diameter reached the maximum TOF (TOF_MAX) at ~ 26 s, this value corresponded to 91 s for Au NPs 34 nm in size. Table 1 summarizes the catalytic activities estimated as a function of Au NPs size and specific surface area. The specific surface area (S) was calculated according to the equation 3:

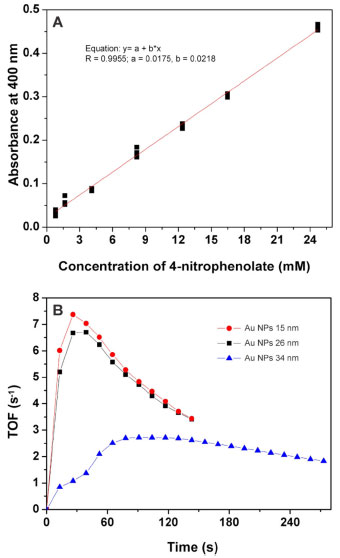

Figure 5. (A) UV-VIS calibration curve for 4-nitrophenolate concentration and (B) calculated TOFs as a function of time for Au NPs 15 ± 2, 26 ± 2, and 34 ± 3 nm in diameter (red, black, and blue traces, respectively)

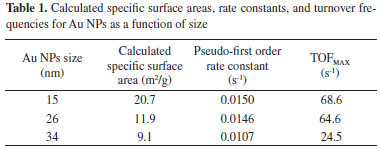

where R corresponds to the Au NPs radius, and d_Au to the density of gold (19.32 × 10⁶ g/m³). Because in the proposed laboratory experiment we wanted to demonstrate students how the catalytic activity is dependent upon the size of metal nanoparticle catalysts, we believe this concept can be more easily visualized/illustrated by calculating the turnover frequency as a function of the Au concentration. In this case, as the diameter of the Au NPs increased, the surface area and thus the catalytic activity decreased (as expressed by the TOF and pseudo-first order rate constants).

It is important to note that students are encouraged to experiment with Au NPs of all size regimes. While the rate constants were similar for Au NPs 15 and 26 nm in size, a decrease was still observed. Moreover, it is worth showing students that the rate constants do not simply decrease linearly as the Au NPs size increases. Finally, there is a noticeable change in optical properties as Au NPs size increase from 15 to 26 nm.

CONCLUSIONS

We proposed herein an undergraduate level activity that consists on three main parts, involving the synthesis of Au NPs of controllable sizes followed by the investigation of their size-dependent optical properties and catalytic activity. In the first part of the activity, students perform the synthesis of three Au NPs samples having different (increasingly bigger) sizes by a seeded growth approach. In this case, spherical Au NPs 15 ± 2, 26 ± 2, and 34 ± 3 nm in diameter were obtained. In the second part of this activity, students qualitatively and quantitatively investigate the variations in the optical properties due to the formations of Au NPs and also as a function of their size (by both visual inspection and UV-VIS spectroscopy). In the last part of the experiment, students employ the reduction of 4-nitrophenol by sodium borohydride as a model reaction to investigate the size-dependent catalytic activity of the synthesized Au NPs suspensions. The reduction of 4-nitrophenol to 4-aminophenol can be monitored by the decrease in the absorbance at 400 nm (assigned to 4-nitrophenolate ions) in the UV-VIS spectrum as a function of time, and the rate constants can be calculated by a pseudo-first-order rate law. This experiment encompasses concepts on the synthesis, stabilization, and characterization of Au NPs, their unique size-dependent optical properties and catalytic activities, the role of catalyst, and chemical kinetics. This provides students the opportunity to integrate these multidisciplinary concepts in a single activity and to get introduced/familiarized with an active research field and current literature in the areas of nanoparticle synthesis and catalysis.

SUPPLEMENTARY MATERIAL

Student guide manual containing full experimental procedures and instructor notes. This material is available via the internet at http://quimicanova.sbq.org.br/ with free access.

ACKNOWLEDGEMENTS

This work was supported by FAPESP (grant number 2013/19861-6), CNPq (grant numer 471245/2012-7), and start-up funds from Universidade de São Paulo (grant numbers 11.1.25042.1.0 and 2012-145). A.G.M.S., A.M., and R.T.P.S thank the CNPq for the fellowships. T.S.R. thanks CAPES for the fellowship. P.H.C.C. thanks the CNPq for the research fellowship.
