INTRODUCTION

During the past decades, there has been a growing concern on the use of agricultural by-products, such as rice husk and sugar cane bagasse ashes, as pozzolanic mineral admixtures in cement-based materials. The rice husk ash (RHA) is a high silica content material and its high pozzolanic activity has been recognized since 1970's.^1-4 More recently, the sugar cane bagasse ash (SCBA) has shown to be of great value as pozzolan, improving characteristics such as mechanical strength and durability in concretes.^5-7

Both RHA and SCBA affect the performances of paste, mortar and concrete due to both physical and pozzolanic effects. The physical effects are primarily associated with their influence on the packing characteristics of the mixture. On the other hand, the pozzolanic effects are related with their capability of providing siliceous/aluminous amorphous compounds that will chemically react with calcium hydroxide (Ca[OH]₂ or CH⁸ or portlandite) in the presence of water, as described by Equation 1. Investigating the pozzolanic reaction through the Ca(OH)₂-pozzolan-water system is a helpful path to the interpretation of the hydration of cementitous materials with pozzolanic addition, since that system is simpler than the cement-pozzolan-water system.⁹

The reaction between RHA, Ca(OH)₂ and water has been the subject of study of some researchers.^10-15 Since this ash has high silica content, the reaction is well compared with that of silica fume, Ca(OH)₂ and water and its main product is known to be CaO-SiO₂-H₂O (denominated by C-S-H). Nonetheless, its characterization varies amongst authors. James and Subba Rao^10,13 states it is a low CaO/SiO₂ molar ratio (C/S ratio) C-S-H much alike the C-S-H (I) described by Taylor,¹⁶ whereas Billong et al.¹⁴ defines it as being a mixture of C-S-H (I) and C-S-H (II). In contrast, Yu et al.¹⁵ defend that the C-S-H formed has definite stoichiometry of CaO_1.5∙SiO_3.5∙xH₂O.

C-S-H (I) is well known as the product of the reaction between hydrous silica and Ca(OH)₂ at ordinary temperatures, with C/S ratios from 0.8 to 1.5.¹⁶ In contrast, C-S-H (II) would be the product of the bottle reaction of tricalcium silicate (3CaO•SiO₂) with pure water and its C/S ratio varies from 1.5 to 2.0. Nevertheless, C-S-H (II) was also detectable in systems formed by Ca(OH)₂, silica fume and water. Indeed, Guindy et al.,¹⁷ using X-ray diffraction and thermal analysis, concluded that, whereas C-S-H (I) is the main product in mixtures of low initial C/S ratio, when the ratio was increased, C-S-H (II) could also be seen as product. Abo-El-Enein et al.¹⁸ and El-Shimy et al.¹⁹ presented similar findings in their work.

In relation to pozzolanic reactions of SCBA, there is little work on the Ca(OH)₂-SCBA-water system. Likewise for other pozzolans, the main product of this reaction is stated to be C-S-H.^20-23 However, as this system also contains significant amount of Al₂O₃, calcium alumino silicate hydrates (CaO-Al₂O₃-SiO₂-H₂O or C-A-S-H) and calcium aluminate hydrate (CaO-Al₂O₃-H₂O or C-A-H) are also expected to be formed.²¹ Not much has been said on the nature of the C-S-H formed. Frías and Villar-Cociña²² found the product to be mainly amorphous C-S-H of low C/S ratio; however, no attempt of correlation to known products (C-S-H [I] and [II]) was made.

In the present paper, a study on the hydration of the controlled systems RHA- Ca(OH)₂-water and SCBA- Ca(OH)₂-water is presented. The aim is to evaluate how the origin of the silica in the system and the initial C/S ratio affect the final products. Detailed measurements of thermal analyses and X-ray diffraction were carried out in order to compare the formed compounds in the different pastes.

EXPERIMENTAL

Materials

Rice husk was received from rural producers in the State of São Paulo, Brazil. It was burnt in a muffle furnace at 600 ºC, with a heating rate of 10ºC/min for 3 hours²⁴ and dry ground during 120 minutes in a vibratory mill to obtain amorphous silica, low carbon content and ultrafine particles (median particle size, D₅₀, above 10 µm). On the other hand, a raw sugar cane bagasse ash was collected from the boiler during a cleaning operation from a sugar/alcohol plant in the state of Rio de Janeiro, Brazil. The residual SCBA was then burnt in a muffle furnace in two steps: at 350 ºC during 3 hours and at 600 ºC for another 3 hours.²⁵ This burning was made to decrease the high carbon content in the residual ash. Finally, it was dry ground for 8 hours in a rotational ball mill. Chemically pure calcium hydroxide and deionized water were also used in the mixtures.

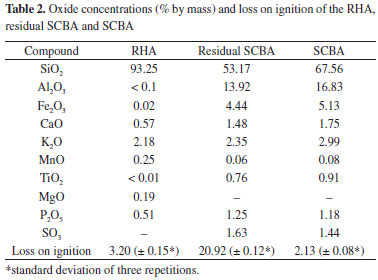

The particle size distribution of both ashes was measured using a Malvern Mastersizer laser diffraction analyzer with deionized water as dispersant. The oxide percentages were determined by X-ray fluorescence (XRF) using a Shimadzu EDX 800 spectrometer with Rh tube and the specific surface area was measured according to the N₂ adsorption (B.E.T.) using a Micromeritics Accupic. X-ray diffraction patterns (powder method) were taken using a Bruker D8 Focus diffractometer with Cu-Kα radiation (40 mA; 40 kV; 10º < 2θ < 60º; 0.03º step; 1 s couting time).

Methods

Two sets of mixtures were manually prepared, one of RHA and Ca(OH)₂ pastes and the other of SCBA and Ca(OH)₂ pastes. Firstly, the mixtures were made in order to obtain initial C/S molar ratios varying from 0.6 to 1.0. After some preliminary results, complementary pastes were produced, in order to obtain more comprehensive ranges of C/S values. All analyzed mixtures, and their C/S ratios, are presented in Table 1. The water/solids ratio (in mass) was 1.3 for all mixtures. This value was the minimum ratio in order to produce homogeneous pastes with the materials used in this work. The pastes were cured in sealed plastic films in a temperature controlled room at 40 ºC.¹⁵ In this paper, the samples were denominated as ASH-CS where ASH stands for RHA or SCBA and CS represents the C/S ratio of the mixture. In that way, the sample of RHA paste with C/S ratio of 0.6 was named RHA-0.6.

The nature of the pozzolanic reaction's products was investigated by means of thermal analyses (TG, DTG and DTA) performed in a TA Instruments SDT Q 600 thermoanalyser, in inert atmosphere (N₂), with maximum flow of 100 ml/min and heating rate of 10 ºC/min, from 25 ºC to 1000 ºC. It was used a platinum crucible with sample weight of approximately 10 mg. Both RHA and SCBA pastes were analyzed at 50 days of curing. The samples were tested without previous drying and all exhibited a large step at the beginning of the TG curve due to their high water content. The unreacted Ca(OH)₂ and CaCO₃ formed were quantified based on the mass losses (Δm) related to the decomposition of each compound, according to Equations 1 and 2. It is important to note that the presence of CaCO₃ is due to the carbonation of the Ca(OH)₂ when in contact with CO₂ in the air during experimental procedures.

The products of selected C/S pastes were also characterized by X-ray diffraction (XRD). Samples containing RHA were scanned over a 10º-60º 2θ range, while the SCBA- Ca(OH)₂ samples were analyzed in a 5º-60º 2θ range in order to investigate the presence of carboaluminates. The samples RHA-0.5, RHA-1.0, RHA-1.9, SCBA-0.5, SCBA-0.7 and SCBA-1.4 were analyzed after 50 days of curing.

In order to study the morphology of the pastes, scanning electron microscope (SEM) images were obtained in a JEOL JSM 6460 LV microscope, operating in 20 kV and working distance of about 10 mm. The microscope was equipped with an energy dispersive x-ray spectrometer (EDS) Thermo C 1015. The samples were gold-coated under vacuum.

RESULTS AND DISCUSSION

RHA and SCBA characterization

The particle size distributions of both RHA and SCBA are shown in Figure 1. The SCBA is slightly coarser than the RHA: the former presented D₅₀ of 7.37 µm, while the latter exhibited D₅₀ of 4.75 µm. Both ashes can be considered as ultrafine. The obtained RHA had B.E.T. specific surface area of 66.91 m²/g, whereas the SCBA had one of 25.00 m²/g. The oxide percentages (by mass) of RHA and SCBA, measured using the X-ray fluorescence method and their loss on ignition are presented in Table 2. It is worthy of notice the high silica content of both ashes. Figure 2 exhibits the X-ray diffraction (Cu Kα radiation) patterns of the ashes. The silica present in the RHA was mostly amorphous, what can be seen by the background hump between the Bragg's angles of 15º and 25º on the RHA's pattern. In contrast, the pattern of the SCBA indicates the presence of quartz, as it has been observed in several studies on residual bagasse ash.^7,21,23

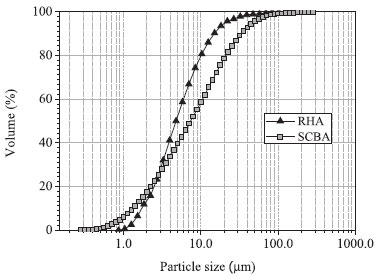

Figure 1. Particle size distribution obtained by laser diffraction analyses of RHA and SCBA

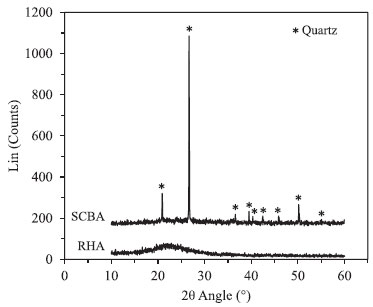

Figure 2. X-ray diffraction patterns of RHA and SCBA (Cu Kα)

RHA-Ca(OH)₂ pastes

The thermal analyses results for the RHA pastes at the age of 50 days are shown in Figures 3 and 4. The DTG curves shown in Figure 3 exhibit endothermic peaks at approximately 90 ºC, 400 ºC and 600-650 ºC, which correspond to the dehydration of C-S-H, the dehydroxylation of the Ca(OH)₂ and decomposition of CaCO₃ by carbonation,²⁶ respectively.

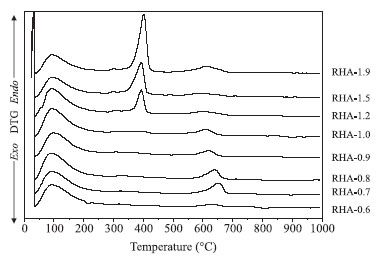

Figure 3. DTG curves of the RHA pastes with different C/S ratios

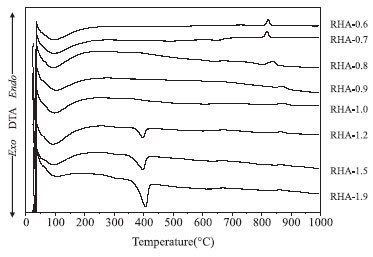

Figure 4. DTA curves of the RHA pastes with different C/S ratios

The DTA curves are presented in Figure 4. It is possible to observe an exothermic peak at about 850 ºC due to the crystallization of C-S-H (I) to β-wollastonite.²⁷ As the C/S ratio of the mixtures increased, the high temperature peak slightly shifted to the right²⁶ and became less intense. This is an indicative that in lower C/S mixtures, the main product is C-S-H (I) and, as the C/S increases, the product is formed by a combination of C-S-H (I) and C-S-H (II) or by only C-S-H (II). Indeed, in DTA curves, both types of C-S-H can be distinguished for the exothermal reaction of C-S-H (II) at higher temperatures not being as strong as the one of C-S-H (I).²⁷ James and Subba Rao¹⁰ had similar results with their paste of RHA and lime of C/S ratio of 3.0. However, even though the exothermic peak was clearly less intense, they identified C-S-H (I) as the only phase.

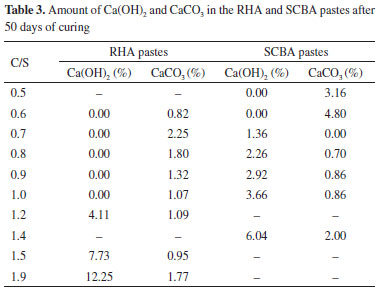

The quantification of unreacted Ca(OH)₂ can be observed in Table 3. In the samples RHA-0.6, RHA-0.7, RHA-0.8, RHA-0.9 and RHA-1.0, Ca(OH)₂ was completely consumed for 50 days of curing (most of it by the pozzolanic reaction and a small part by carbonation).

In the case of RHA-1.2, RHA-1.5 and RHA-1.9, 50 days was not enough to deplete the Ca(OH)₂ present in the pastes. The XRD patterns indicated in Figure 5 confirm the thermal analyses results. In fact, the patterns of RHA-0.6 and RHA-1.0 did not exhibit peaks corresponding to Ca(OH)₂, whereas the RHA-1.9 did. Regarding the peaks related to C-S-H, at the analyzed range, both types (I) and (II) have their principal peaks overlapped (Cu Kα Bragg's angles of 29.28º, 31.96º and 50.72º),¹⁶ and they are very poorly crystallized. Thus, this technique alone is not sufficient to classify the C-S-H as one kind or the other.¹² Therefore, the coupled use of XRD with thermal analyses (or nuclear magnetic resonance) is important for this classification. The peaks of C-S-H present at the pattern of the paste RHA-1.9 are less intense, fact explained by the decrease of the degree of crystallinity of the product with the increase of the C/S ratio.^28,29

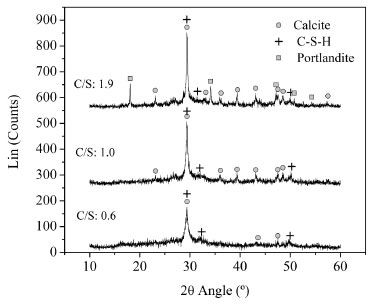

Figure 5. X-ray diffraction patterns of RHA-0.6, RHA-1.0 and RHA-1.9

It is important to note that a slight background hump between Bragg's angles of 15º and 25º can be observed at the pattern of RHA-0.6. The deviation shows that unreacted amorphous silica is likely to be present at the mixture. SEM images of the paste RHA-1.0 are shown in Figure 6. The C-S-H formed has dense fibrillar structure, similar to the morphology described by James and Subba Rao^10,13 for C-S-H from RHA pozzolanic reactions. In Figure 6b it is possible to note a RHA grain partially covered by the reaction product. The grain was chemically analyzed by EDS and the spectrum is shown in Figure 7. A large peak correspondent to silicon (Si) can be seen, what corroborates the chemical composition of the ash. EDS measurements of pure RHA (not showed) confirm this remark. The peaks related to gold (Au) were due to the coating of the sample.

Figure 6. Scanning electron microscopy images of RHA-1.0 (a). In (b), a RHA grain covered by C-S-H

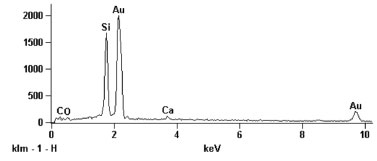

Figure 7. EDS analysis of the RHA grain (marked in Figure 6b)

SCBA-Ca(OH)₂ pastes

The DTG and DTA curves of the SCBA pastes are shown in Figures 8 and 9, respectively. The endothermic peaks corresponding to dehydration of C-S-H, dehydroxylation of the Ca(OH)₂ and decomposition of CaCO₃ (at about 90 ºC, 400 ºC and 600-650 ºC respectively) were the same as for RHA. However, endothermic peaks at 120 ºC, 195 ºC and 240 ºC can also be seen. They are related to the dehydration of gehlenite hydrate (2CaO·Al₂O₃·SiO₂·8H₂O), tetracalcium aluminate hydrate (4CaO·Al₂O₃·13H₂O) and hydrogarnet (3CaO·Al₂O₃·SiO₂·6H₂O),³⁰ respectively. It is interesting to note that, if on one hand gehlenite hydrate can be detected in all mixtures, tetracalcium aluminate hydrate is only found in SCBA-0.5, SBCA-0.6, SCBA-0.7, and SCBA-0.8. In addition hydrogarnet dehydration only appears as a very wide peak in SCBA-1.4. It is noteworthy that no exothermic peak at higher temperatures was perceived, an indicative that the main product was not C-S-H (I).

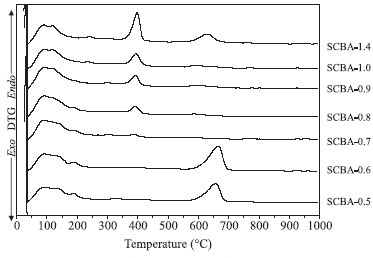

Figure 8. DTG curves of the SCBA pastes with different C/S ratios

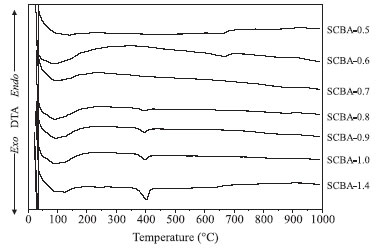

Figure 9. DTA curves of the SCBA pastes with different C/S ratios

Table 3 shows the amount of unreacted Ca(OH)₂ and CaCO₃ in SCBA pastes at the age of 50 days. For the pastes SCBA-0.5 and SCBA-0.6, 50 days was enough for the complete reaction of the Ca(OH)₂ of the pastes. In contrast, for the rest of the mixtures, the adopted time was not sufficient for the whole consumption of Ca(OH)₂ and the paste that presented the minimum amount of that compound was SCBA-0.7.

Figure 10 displays the XRD patterns of the mixtures SCBA-0.5, SCBA-0.7 and SCBA-1.4. Peaks related to CaCO₃ and quartz can be seen in all three pastes. There was evidence of Ca(OH)₂ (portlandite) only for the C/S 1.4 mixture. The X-ray patterns did not show any crystalline product from the reaction between SCBA and Ca(OH)₂, indicating that they probably have low or null crystallinity degree. Similar results were obtained by Frías and Villar-Cociña.²² It is important to note that the XRD patterns did not show the presence of carboaluminates, although the SCBA sample presents an expressive amount of Al₂O₃ (16.83%).

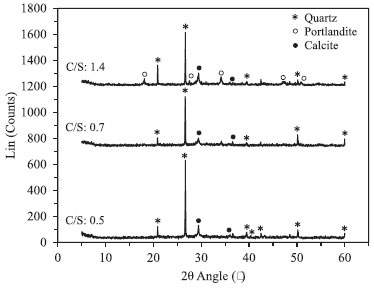

Figure 10. X-ray diffraction patterns of SCBA-1.4, SCBA-0.7 and SCBA-0.5

The morphology of the products formed in the paste SCBA-0.7 can be observed in Figure 11 and it showed to be different from the RHA mixture. The C-S-H gel seems to be dense constituted by amorphous agglomerations. The aluminate products appear as thin plates or needles, mostly deposited inside of pores, as can be better seen in Figure 11a. In the image of Figure 11b, it is possible to see a SCBA grain partially covered by the hydration products and a calcium alumino silicate hydrate plate. Both the SCBA particle and the C-A-S-H were analyzed by EDS and the spectrums are presented in Figure 12. Once again, the coating of the sample resulted on the appearance of peaks related to gold (Au).

Figure 11. Scanning electron microscopy images of SCBA-0.7. In detail (a), the aluminate products as thin plates deposited in pores of the C-S-H net. In (b), a grain of SCBA and a plate of calcium alumino silicate hydrate

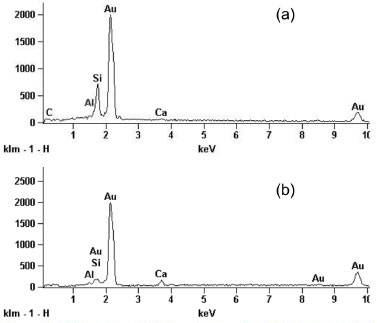

Figure 12. EDS analysis of a SCBA grain (a) and a C-A-S-H plate (b), both marked in Figure 11b

CONCLUSIONS

Based on experimental results, the following conclusions can be drawn:

The main product of the pozzolanic reaction between RHA and Ca(OH)₂ depends on the C/S ratio of the mixture. In lower C/S ratio mixtures, the main product is C-S-H (I), while in higher C/S pastes, there are both C-S-H (I) and C-S-H (II), or only C-S-H (II).

The RHA mixtures with C/S ratios between 0.6 and 1.0 had all Ca(OH)₂ consumed after 50 days of curing at 40 ºC. For SCBA-0.5 mixtures, at the same curing conditions, all Ca(OH)₂ was consumed for the mixtures having C/S ratios of 0.5 and 0.6.

In RHA pastes, the C-S-H appears as fibrillar structures, deposited on the surface of the ash.

The reaction between SCBA and Ca(OH)₂ has as main product C-S-H. However, it is not possible to classify it as type I or II. Gehlenite hydrate, tetracalcium aluminate hydrate and hydrogarnet were also present as products of the pozzolanic reaction.

The morphology of the C-S-H formed in SCBA-Ca(OH)₂ was different from the one formed by RHA. It was formed by a dense net of amorphous agglomerations with aluminate products, in the shape of needles or thin plates, deposited inside the pores.
