Preparation of fluorescent polystyrene microspheres by improving swelling performance based on molecular weight and surface carboxyl group content

Fei SunI; Chao FengII; Yang WangI; Xue YangI; Hong ZhaoI,*

I. School of Chemistry and Chemical Engineering, Southeast University, Nanjing 211189, China
II. School of Materials and Chemical Engineering, Bengbu University, Bengbu 233030, PR China

Recebido em: 07/05/2021
Aceito em: 16/07/2021
Publicado em: 13/08/2021

Endereço para correspondência

*e-mail: zhaohong@seu.edu.cn

RESUMO

The fluorescent microspheres are prepared by the swelling-evaporation method. The optimal swelling conditions are obtained by researching related factors, such as types and dosages of swelling agent, dosages of fluorescent substance, swelling time and swelling temperature. Considering that the structure of microspheres can influence the swelling properties, the paper mainly focuses on the effect of molecular weight and surface carboxyl group content of polystyrene microspheres on swelling properties. When the molecular weight of microspheres is 75276 g mol-1, the density of carboxyl group on their surface is 6.94×10-4 mol g-1, and the doping amount of europium complex reaches the maximum of 24.9 mg g-1 with the strongest fluorescence intensity. Meanwhile, the as-prepared fluorescent microspheres have high monodispersity, uniform particles size and high thermal stability (the decomposition temperature is 385oC), which sets up the good foundation for biomolecule detection. So, this work provides a significant experience for the preparation of fluorescent microspheres.

Palavras-chave: swelling method; fluorescence intensity; optimal conditions; doping of europium complex.

INTRODUCTION

In recent years, fluorescent microspheres have gained increasing attention for their wide applications in the biomolecules detection, imaging, fluid mechanics studies and standardization of fluorescent-based instruments.1-6 The choice of fluorescent material and polymer matrix is important to prepare fluorescent microspheres with strong fluorescence intensity and high stability. Compared with other traditional fluorescent materials, the luminescent rare earth complexes7 are widely used for their unique spectral properties, such as extremely narrow and intense emission bands, relatively long lifetimes and large stokes shift. Among many different polymers, polystyrene which is rigid,8-10 transparent, and easy to functionalize11 can provide a stable environment to protect the pure rare earth organic complexes. The researches indicate that their photoluminescence properties and thermal stability are improved when rare earth complexes are incorporated into the polystyrene microspheres.12-17

To date, several different fabrication methods for preparation fluorescent microspheres have been developed, such as encapsulation of europium complexes in the monomer before polymerization,18-21 copolymerization with reactive fluorophores,22,23 and swelling preexisting particles.24-27 The swelling-evaporation method is a simple, versatile and effective technique. However, the swelling process is easily affected by conditions mentioned above and the molecular weight of microspheres. Considering the application of fluorescent microspheres in biomedicine, it is necessary to modify the surface of the microspheres with functional groups.28-30 There are few researches on the effect of functional groups on the surface of microspheres on their swelling performance. The influence of functional group content on the surface of microspheres on the swelling properties is also the focus of our research in the paper.

Herein, in order to research the effect of molecular weight and surface carboxyl group content of the microspheres on the swelling properties, series of microspheres with different surface carboxyl contents and molecular weight were prepared in this paper. The luminescent composite microspheres of Eu(NTFA)3Phen are successfully prepared according to the optimal swelling conditions. And characterization of the properties of microspheres revealed that when the molecular weight of the microspheres is 75276 g mol-1, the surface carboxyl group content is 6.94×10-4 mmol mg-1, the fluorescent microspheres have excellent fluorescence properties, high stability and abundant functional groups, which may extend the applications of fluorescent microspheres in biomolecules detection.



EXPERIMENTAL

Materials

10-phenanthroline (Phen), Eu2O3 (99.9%) and 4,4,4-trifluoro-1 (2-naphthyl)-1,3-butanedione (NTFA) are purchased from Aladdin chemical Reagent Company. Styrene is purified with alkaline alumina by column chromatography to remove inhibitor and stored at-5oC. Methacrylic acid (MAA) is purified by passing it through an inhibitor removal column and stored at-5oC. All other commercially available reagents are of reagent grade and are used without further purification.

Preparation of europium organic complex

The alcoholic solution of EuCl3 was prepared by dissolving Eu2O3 (0.5 mmol, 176.0 mg) in concentrated hydrochloric acid (HCl, 10 mL), heating to remove the acid and adding to appropriate ethanol (20 mL). Eu(NTFA)3Phen (NTFA = 4,4,4-trifluoro-1-(2-naphthyl)-1,3-butanedione, Phen = 1,10-phenanthroline) was synthesized and characterized according to the published methods.31 The NTFA (3 mmol, 798.7 mg) and Phen (1 mmol, 198.2 mg) were dissolved in absolute ethanol and then heated to 70oC. The pH value was adjusted to 6.0-7.0, using 1.0 mol L-1 NaOH aqueous and then the EuCl3 (1 mmol, 258.5 mg), aqueous was added dropwise. The reaction was performed 6 h at 70oC. After the mixture cooled down to room temperature, the precipitate was filtered under reduce pressure and washed 3 times with 50 mL ethanol and 50 mL water respectively to remove unreacted raw materials, and then dried in a vacuum oven.

Preparation of monodisperse poly (styrene-co-methylacrylic acid) (PSM) microspheres with different surface carboxyl group contents

The monodisperse PSM microspheres with different surface carboxyl group contents are prepared by soap-free emulsion polymerization32 to study the effect of the surface carboxyl group content on the swelling property. The polymerization reaction is carried out in a 100 mL three-necked flask equipped with a nitrogen inlet and a reflux condenser. 2 mL of styrene, 25 mL deionized water and 25 mL ethanol are poured into the flask, purging nitrogen for 10 min to remove the oxygen in the flask. The flask is placed in an oil bath and until the temperature reaches 80oC, 0.5 mL aqueous solution containing 40 mg of APS is charged. After 2.5 h, 0.1 mL of MAA is added into the flask, and the polymerization is maintained under nitrogen atmosphere at a stirring rate of 200 rpm for 10 h. The formed microspheres are washed 3 times with 45 mL ethanol and 45 mL deionized water respectively, then collected by centrifugation and stored at-5oC. The monodisperse PSM microspheres with different surface carboxyl group contents are prepared similarly, by changing the volume of methacrylic acid (MAA).

Determination of surface carboxyl group content in PSM microsphere emulsion

The conductometric titration is used to determine the content of carboxyl group on the surface of microspheres. The specific experimental steps are performed according to the method reported in the reference.33 First, weigh 144 mg of sample microspheres in a 100 mL beaker, and dilute to 40 mL with deionized water. 5 mL 0.1 mol L-1 sodium hydroxide solution is added in the diluted microspheres emulsion and mechanically stir for 2 h. Then, the obtained emulsion is titrated with 0.1 mol L-1 HCl solution. The reaction of sodium carboxylate and hydrochloric acid occurs in the stage of constant conductivity, and the volume of hydrochloric acid consumes V.

The formula for calculating the surface carboxyl group content is as follows:

where V is the volume of HCl titrant in latex requires to neutralize the surface bound carboxyl, C is the concentration of the HCl titrant, M is the weight of sample microspheres.

Preparation of monodisperse poly (styrene-co-methylacrylic acid) microspheres with different molecular weight

In order to study the influence of molecular weight of microspheres on the swelling property, the monodisperse PSM microspheres with different molecular weight are prepared in alcohol/water medium with ammonium persulfate (APS) as initiator. 2 mL styrene, 25 mL deionized water and 25 mL ethanol are poured into flask. As the temperature is heated to 80oC under nitrogen atmosphere, 0.5 mL aqueous solution containing 20 mg of APS is charged. After 2.5 h, 0.4 mL of MAA is added, and the polymerization is kept for 10 h at 80oC under nitrogen atmosphere. The formed microspheres are washed 3 times with 45 mL ethanol and 45 mL deionized water repetitively, and then collected by centrifugation and stored at-5oC. The monodisperse PSM microspheres with different molecular weight are prepared similarly by changing the concentration of initiator.34

Preparation of monodisperse surface carboxylated fluorescent microspheres (Eu/PS-COOH)

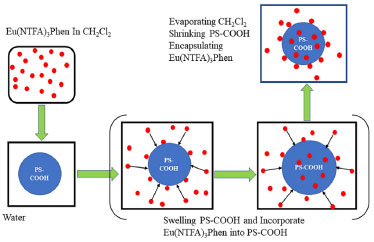

Figure 1 shows the schematic illustration of the preparation of fluorescent microspheres. Fluorescent microspheres are prepared by swelling-evaporation approach. The carboxyl group-functionalized microspheres (100 mg) are dispersed in swelling medium (10 mL water), follow by the addition of dichloromethane solution (1 mL) containing of europium complex (10 mg). The mixed solution is sealed in a flack and stirred at 40oC for 2 h to swell microspheres, then remove the dichloromethane by reducing pressure distillation. The formed microspheres are firstly washed with 60 mL alcohol for four times to remove the residual europium complex, then continue to wash with 30 mL deionized water and stored at-5oC for later characterization.




Figure 1. Schematic illustration of preparation of fluorescent microsphere by the swelling-evaporation method



Characterization

Field emission scanning electron microscope (FESEM, inspect F50, FEI) is applied to observe the morphologies of polymer microspheres. The internal structure of polymer microspheres is measured by high-resolution transmission electron microscope (HRTEM, G2-20, FEI). The fluorescence excitation and emission spectra are collected through the fluorescence spectrophotometer (fluoromax-4, horiba). the average molecular weight of polymer microspheres is measured by gel permeation chromatography (GPC, PL-GPC220, Polymer Laboratories). Having a differential refractometer as a detector, tetrahydrofuran is used as eluent at a flow rate of 1.0 mL min-1. the thermal stability of fluorescent microspheres is investigated by a thermogravimetric analyzer under N2 atmosphere, between the temperature of 50 and 800 °c, with a heating rate of 10 °c min-1.



RESULTS AND DISCUSSION

Fluorescence properties of europium complex

The fluorescence excitation spectra and emission spectra of Eu(NTFA)3Phen in DMF has been measured. As shown in Figure 1Sa, the maximum excitation wavelength of Eu(NTFA)3Phen is 340 nm. Upon excitation at 340 nm, europium complex of Eu(NTFA)3Phen exhibited the emission spectra in Figure 1Sb, and there were five absorption peaks at 579 nm, 593 nm, 614 nm, 651 nm, 701 nm, which corresponds to the five transitions of 5Do→7Fo, 5Do→7F1, 5Do→7F2, 5Do→7F4 and 5Do→7F5 of Eu3+, respectively. Among them, 5Do→7F2 belongs to the electric dipole transition with the peak at 614 nm, and its emission intensity is the strongest. To better evaluate the fluorescence intensity of microspheres, herein we just considered the strongest fluorescence intensity of peak at 614 nm. In the experiment, we found that the doping of europium complex inside the microsphere does not affect its fluorescence behavior, and the emission band of the as-prepared fluorescence microsphere is still at 614 nm upon excitation at 340 nm. In addition, according to the comment, we measure the fluorescence spectrum of the blank microspheres. As shown in the Figure 2S, there is no fluorescence between 580 nm to 650 nm on the polystyrene microspheres when excited at 340 nm.

Optimization of the microspheres swelling conditions through the single factor method

Before researching the effect of molecular weight and surface carboxyl content of microspheres on the swelling properties, the external factors that can affect the swelling performance and fluorescent property are first studied through the single factor method to optimize the swelling conditions, for the swelling process is easily affected by external factors mentioned above. The microspheres used in the following researches are all 0.1 g, which surface carboxyl group content is 6.94 × 10-4 mol g-1 and molecular weight is 71219 g mol-1. The concentration of fluorescent microspheres used for fluorescence testing is 3.3 × 10-10 mol L-1.

In this paper, dichloromethane, tetrahydrofuran (THF), acetonitrile, 1,2-dichloroethane, acetone, ethanol, and cyclohexane are initially selected as swelling agents. The fluorescent microspheres are successfully prepared with these solvents and characterized by fluorescence spectrophotometer. By comparing these results (Figure 2a), the fluorescent microspheres are prepared with dichloromethane solution of europium complex with the strongest fluorescence intensity. Therefore, dichloromethane is chosen as the swelling agent in the following experiments. Afterward, the addition amount of dichloromethane is 0.5 mL, 1.0 mL, 1.5 mL, and 2 mL to research the effect of swelling agent content on the swelling properties of microspheres. The fluorescent microspheres are prepared by swelling the polymer matrix (0.1 g) with different volumes of dichloromethane and characterized by TEM and fluorescence spectrophotometer. As shown in Figure 2b, when the volume of dichloromethane is 1.5 mL, the fluorescence intensity of microspheres is the strongest. When the volumes of dichloromethane are 0.5 mL, 1.0 mL and 1.5 mL, the resulting microspheres show uniform diameter and regular morphology (Figure 3a, 3b, 3c). However, when the volume of dichloromethane is 2 mL, the obvious conglutination of the fluorescent microspheres appears (Figure 3d). Therefore, the volume of the dichloromethane main affects the morphology of the microspheres and the volume of dichloromethane used in the following experiments is 1.5 mL.

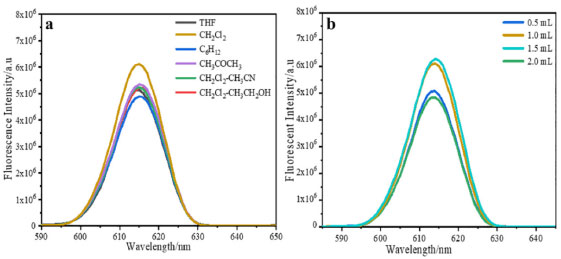

Figure 2. (a) Fluorescence emission spectra of fluorescent microspheres swelled by different swelling agent; (b) Fluorescence emission spectra of fluorescent microspheres swelled by different volumes of dichloromethane






Figure 3. TEM images of fluorescent microspheres swelled by different volumes of dichloromethane solution (a: 0.5 mL, b: 1.0 mL, c: 1.5 mL, and d: 2.0 mL)



The mass of europium complex has a great impact on the fluorescence intensity of the microspheres. The fluorescent microspheres are prepared with different dosages of europium complex and characterized by fluorescence spectrophotometer. As shown in Figure 4a, when the amount of europium complex is less than 15 mg, the fluorescence intensity of the microspheres is increase gradually and reaches the maximum when 15 mg of europium complex is added, and the fluorescence intensity of the microspheres do not increase with the augment of the amount of europium complex. The result indicates that the doping amount has reached the critical saturation value. If the amount of europium complex is further increased, the fluorescence intensity of the microspheres became decreasing, it may be that the aggregation of europium complex caused fluorescence quenching.35,36 As we know, when the concentration of dye is too high, the concentration quenching will occur, in which the luminescence will be quenched by the energy migration among the molecules. Therefore, when europium complex molecules aggregate, fluorescence quenching will be caused by energy transfer. Therefore, we believe that the optimal doping amount of europium complex is 15 mg.

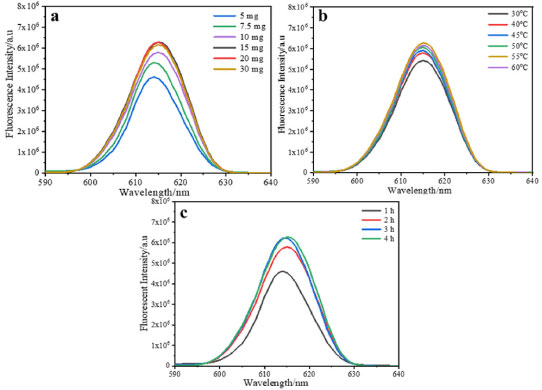

Figure 4. (a) Fluorescence emission spectra of the microspheres with different amounts of Eu(NTFA)3Phen; (b) Fluorescence emission spectra of the microspheres with different swelling temperature; (c) Fluorescence emission spectra of the microspheres with different swelling time



The swelling temperature has little impact on the fluorescence intensity of microspheres and the fluorescence intensity of the microspheres reaches the maximum value when the swelling temperature is 50oC (Figure 4b). This because when the temperature is lower, the swelling speed of europium complex will be affected, the diffusion speed of the europium complex will be increased with the increase of temperature, and is advantageous to the Eu(NTFA)3phen molecules diffusion into the microspheres. However, the binding strength between europium ion and ligand became weakened under higher temperature, which resulted in an increase in the distance between europium ion and ligand. Thus, reducing the antenna effect of the europium complex, and thus reducing the process of the ligand receiving energy to excite europium ions, as a result, its fluorescence intensity is gradually weakened. Therefore, the optimal swelling temperature is 50oC. The swelling time is 3 h and the fluorescence intensity of the microspheres after extending swelling time is almost unchanged (Figure 4c). At this time, the doping amount has reached the critical saturation value and the swelling process is finished. In summary, the optimal swelling conditions of 0.1 g microspheres matrix are obtained in the research: 1.5 mL of dichloromethane as the swelling agent, the dosage of europium complex is 15 mg and swell for 3 h at 50oC.

Effect of the surface carboxyl group content of microspheres on the swelling properties of microspheres

In order to obtain microspheres with different surface carboxyl group contents, the polystyrene microspheres with different surface carboxyl group contents are prepared by soap-free emulsion polymerization via changing the volume of MAA. The surface carboxyl group content of PSM microspheres determined by the conductometric titration are summarized in Figure 5a. The surface carboxyl content of microspheres increased from 2.78 × 10-4 mol g-1 with the MAA feeding amount of 100 μL to 8.31 × 10-4 mol g-1 with the MAA feeding amount of 700 μL in the soap-free emulsion polymerization. The results show that the surface carboxyl group content of the microspheres increased with increasing the MAA feeding ratio. Fluorescent microspheres with different surface carboxyl group contents are prepared by the swelling-evaporation method under optimal swelling conditions obtained in the previous research. The morphologies of the PSM microspheres with different surface carboxyl group contents are investigated by SEM (Figure 3S). It can be seen that almost all of the PSM microspheres (Figure 3Sa 3Se) are well dispersed with homogeneous spherical shapes and smooth surface, little change in particle size of microspheres. However, when the volume of MAA is further increased to 0.6-0.7 mL, the sphericity of the products is reduced and ellipsoid is formed (Figure 3Sf, 3Sg). The contents of carboxyl group on the surface of the microspheres are 7.62 × 10-4 mol g-1 and 8.31×10-4 mol g-1. The results indicate that the concentration of MAA has an effect on the sphericity of the microspheres. If the volume of MAA is too much, the system will become unstable, resulting in failure to become spherical. It is confirmed from the TEM image of the luminescent composite microspheres containing 6.94×10-4 mol g-1 carboxyl groups that the europium complex molecules are successfully incorporated into the interior of microspheres (Figure 3Sh).

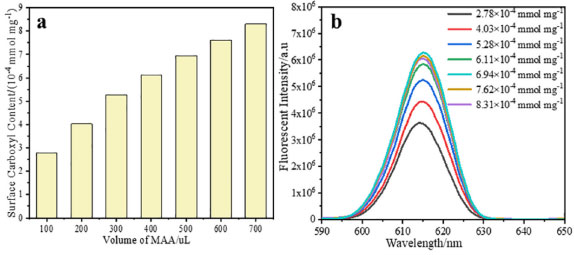

Figure 5. (a) The surface carboxyl content with increasing the volume of MAA; (b) Fluorescence emission spectra of fluorescent microspheres (the europium complex is 8.7×10-3 mol L-1) with different carboxyl group contents



Figure 5b shows the fluorescence emission spectra of the fluorescent microspheres with different carboxyl group contents, the concentration of fluorescent microspheres is 3.3 × 10-10 mol L-1. The fluorescence intensity of fluorescent microspheres first increases and then decreases with the increase of carboxyl group content, and as the carboxyl group content of the surface of microspheres reaches 6.94 × 10-4 mol g-1, the fluorescence intensity reaches the maximum value. The reason of this result is because the carboxyl groups which bury within the microsphere also have a positive influence on the enhancement of fluorescence intensity. Because of the charge attraction between europium complex molecules and carboxyl groups, the europium complex on the surface of microspheres can easily enter the interior of microsphere. But the carboxyl contents are further increased, the steric hindrance the surface is increased, which effects the migration of europium complex to the interior of the microspheres, so the fluorescence intensity is decreased.

Effect of the molecular weight of microspheres on the swelling properties of microspheres

Considering that the concentration of initiator can affect the molecular weight of microspheres, when the concentration of initiator increases, the rate of free radical formation is accelerated, the concentration of free radical in the continuous phase increases, the chain termination rate reaches, and the molecular weight of the polymer microspheres decreases. In the paper, keeping the volume of MAA all are 0.5 mL, six types of polymer microspheres with different molecular weight are prepared with soap-free emulsion polymerization by adjusting the concentration of initiator. The molecular weight of microspheres is measured by gel permeation chromatography (GPC). The effect of initiator concentration on the molecular weight is shown in Figure 6a. It is apparent that the molecular weight decreases with increasing initiator concentration. The fluorescent microspheres are prepared by swelling the microsphere with different molecular weight.

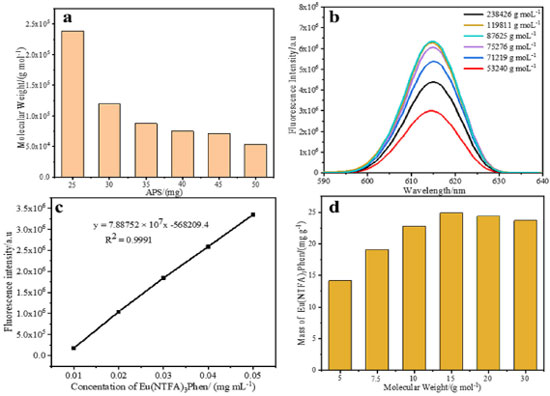

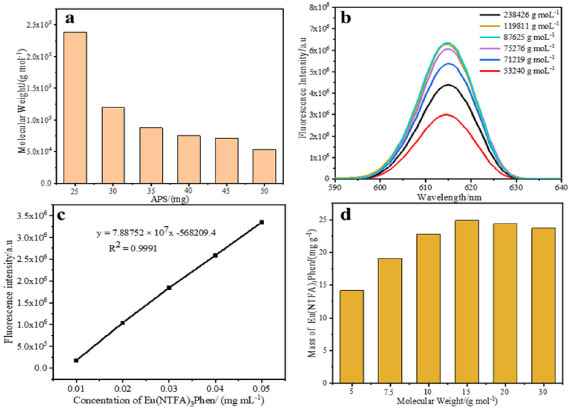

Figure 6. (a) The molecular weight of microspheres is changed with concentration of APS; (b) Fluorescence emission spectra of fluorescent microspheres with different molecular weight; (c) Standard curve of fluorescence intensity change based on the europium concentration in THF; (d) The mass of Eu(NTFA)3Phen swelled into microspheres are changed with molecular weight



The fluorescence emission spectra of the fluorescent composite microspheres with different molecule weight are collected through the fluorescence spectrophotometer. The concentration of fluorescent microspheres is 3.3 × 10-10 mol L-1, the molar concentration of the carboxyl groups on the surface of the microspheres is 6.94 × 10-4 mol g-1. As illustrated in the Figure 6b, the fluorescence intensity of fluorescent microspheres first increases and then decreases with the decrease of molecular weight, and when the molecular weight of the microsphere is 75276 g mol-1, the fluorescence intensity reaches the maximum value. This is because when the molecular weight of microspheres is large, the structure of microspheres is tight and microspheres not easy to swell, so the europium complex molecules are difficult to migrate into microspheres. When the molecular weight of microspheres is small, the structure of microspheres is loose and easy for swelling which is conducive to the majority of fluorescent molecules incorporated into the inside of microspheres. But when the molecular weight of microspheres further reduction, microspheres structure is unstable, the europium complex molecules are easily spilled from the microspheres, so the fluorescence intensity is decreased.

In addition, the standard curve method is used to determine the mass of europium complex swelled into the microspheres. The fluorescent microspheres with different molecular weight are dissolved in THF and released the europium complex molecules. Then europium complex dissolves in THF and measure the fluorescent intensity. The obtained fluorescent intensity is compared with the standard curve (Figure 6c) and calculated the mass of europium complex swelled into the polymer microsphere. As shown in Figure 6d, the mass of europium complex entering the microspheres reaches the maximum with a value of 24.9 mg g-1 when the surface carboxyl group content is 6.94×10-4 mol g-1 and molecular weight is 75276 g mol-1, which is consistent with the previous results. Compared to the europium contents reported before,37 the europium content in the microspheres is increased about three times and the fluorescence intensity is greatly enhanced in this article.

The morphologies of fluorescent microspheres with different molecular weight are investigated by SEM (Figure 4S). It can be observed that all the microspheres own uniform diameter, homogeneous spherical shapes and smooth surface (Figure 4Sa-4Sd). However, with the molecular weight of microspheres increasing, the mean degree of diameter of the fluorescent microspheres decreases slightly (Figure 4Se, 4Sf). It is confirmed from the TEM image of the luminescent composite microspheres (Molecular weight: 75276 g mol-1) that the europium complex molecules are successfully incorporated into the interior of microspheres (Figure 7a).

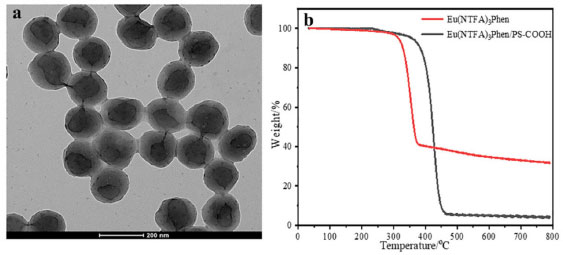

Figure 7. (a) TEM photomicrographs of fluorescent microspheres with molecular weight of 75276 g mol-1; (b) TGA thermograms of Eu(NTFA)3Phen and Eu(NTFA)3Phen/PS-COOH microspheres



To determine the thermal stability of the Eu/PS-COOH microspheres, TGA experiment are performed, the results are shown in Figure 7b. The weight loss of Eu/PS-COOH (~3% wt) below 290oC is attributed to the loss of the residual solvent.38 The decomposition temperatures of the europium complex and Eu/PS COOH microspheres are about 320oC and 385oC, respectively. It can be seen from Figure 7b thermal stability of Eu/PS-COOH microspheres is better than the pure europium complex. The reason is that the rigid PS microspheres provide a protect environment for the pure complex to make the europium complex more stable.



CONCLUSIONS

The paper focuses on the influence of the molecular weight and surface carboxyl group content of the microspheres on the swelling properties. Firstly, seven kinds of microspheres with different surface carboxyl group contents are successfully prepared. Secondly, the six kinds of microspheres with different molecular weight are prepared on the basic of optimal volume of MAA. Finally, the dispersed polystyrene fluorescent microspheres contained europium complex are prepared by swelling-evaporation method under the optional swelling conditions. The molecular weight of the microspheres is 75276 g mol-1, the surface carboxyl content is 6.94×10-4 mol g-1, and contained 24.9 mg g-1 europium complex. The results indicate that the fluorescent microspheres have excellent fluorescence properties and abundant functional groups, which has important applications in biomolecules detection.



SUPPLEMENTARY MATERIAL

Figures 1S - 4S containing fluorescence spectra and SEM images of the studied materials are freely available at http://quimicanova.sbq.org.br in pdf format.



ACKNOWLEDGMENTS

This work was supported by the Fundamental Research Funds for the Central Universities (3207045420); the National Science Foundation for Cultivation of Bengbu University (2018GJPY03); Starting Research Fund of Bengbu University (BBXY2018KYQD15); and the National Natural Science Foundation of China (81703366).
