INTRODUCTION

Chalcones are open chain molecular systems precursors of flavonoids¹ and isoflavonoids, present frequently in edible plants.

Structural modification of chalcones has allowed to obtain derivatives which display potential and worthy applications in pharmacological and biological areas like new medicinal agents with improved properties, such as higher potency and lesser toxicity.²

This wide range of biological activities associated with many chalcone derivatives, has stimulated interest in the development of synthetic strategies aimed to the synthesis of heterocyclic systems starting from chalcones. Besides of the implementation of efficient methodologies for their obtaining, researches have focused also on the study of their reactivity and the assessment of their possible biological activities.^3-5

Particularly in the pharmaceutical field, chalcone derivatives have found application on the treatment of different important diseases such as cancer, among others.^6-10

DNA is thought to be the main target of antitumoral drugs, and the binding between cisplatin complexes and DNA targets have been extensively studied.^11,12 Authors have shown that DNA interactions with several compounds affect the replication process and hence this inhibits the growth of the tumor cells, this means antitumor effects.

This effect has been the basis for designing new and more efficient antitumor drugs. Moreover, their effectiveness depends on the mode and affinity of their binding ability to the DNA strands.¹³

The interactions between DNA and drugs has been considered as the main aspect that govern the DNA replications and transcription in cancer cells.¹⁴ It should be considered though, that not deep studies of DNA-Drug interactions and their toxicity have been performed.^15-17

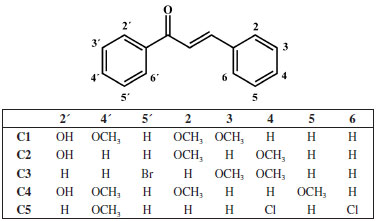

This research focuses on the capacity of a chalcone's family (Figure 1) to interact with DNA. Therefore, the binding constants for the chalcone complexes with CT-DNA were determined by spectrophotometric titration at room temperature. These procedures were performed through the stepwise addition of a CT-DNA solution to a chalcone solution. In addition, the effect of the increasing chalcone's concentration over the relative viscosity of CT-DNA at room temperature was assessed.^18,19





EXPERIMENTAL

Docking

The docking procedure is envisaged as a complex optimization or an exhaustive search process since it involves many degrees of freedom. The ultimate goal is to find the optimal ligand/DNA configurations, and to predict their binding free energy. To computationally accomplish this key objective within a reasonable time framework, an empirical scoring function (AScore) and a docking engine (ShapeDock) were employed in the ArgusLab program.²⁰

The AScore is based on the deconvolution of the total DNA-ligand binding free energy into different components:

ΔG_binding = ΔG_vdW + ΔG_hydrophobic + ΔG_H-bond + ΔG_H-bond(chg) + ΔG_deformation + ΔGº

The dissected terms account for the van der Waals interaction between the ligand and the DNA (ΔG_vdW), the hydrophobic effect (ΔG_hydrophobic), the hydrogen bonding between the ligand and the protein (ΔG_hydrophobic), the hydrogen bonding involving charged donor and/or acceptor groups (ΔG_H-bond(chg)), the deformation effect (ΔG_deformation), and the effects of the translational and rotational entropy loss in the bidding process (ΔGº).

The 3D structures of chalcones were first constructed using Arguslab , then were optimized using Austin Model 1 [AM1] , 200 maximum iteration , followed by conjugate gradient minimization to a RMS energy gradient of 0,01 kcal/mol.²¹ Candidate conformations of Chalcones interacting to their target structures, the DNA complex, were proposed using Arguslab.^22,23 Here, docking was carried out with a set of Chalcones. (Figure 1)

Chemicals

Synthesis of Chalcones, general methodology: Chalcones were prepared by adding dropwise a solution of the corresponding substituted benzaldehyde, (7.34 mmol in ethanol, 20 mL) to a stirred mixture of 2-hydroxyacetophenone solution (7.34 mmol, in ethanol, 20 mL) and potassium hydroxide solution (2 g in 10 mL distilled water). The mixture was allowed to react overnight, and then, distilled water (200 mL) were added and neutralized with hydrochloric acid. Then, the mixture was extracted four times with ethyl acetate (50 mL). The combined organic fractions were concentrated in vacuum, dissolved in ethanol, and allowed to crystallize.

We have previously described the synthesis of the following compounds: 2,3,4'-trimethoxy-2'-hydroxy-chalcone (1)¹ which was obtained as orange crystals (58%), mp. 129-130ºC; 2,4-dimethoxy-2'-hydroxy-chalcone (2)^1,7,24 obtained as yellow crystals (58%), mp. 107 - 109.8 ºC; 3'-bromo-3,4-dimethoxy-chalcone (3)²⁵ obtained as yellow crystals (73%), mp.117-120 ºC; The following compounds were prepared as previously reported in the literature. Spectroscopic data were identical to those previously reported: 2,5,4'-trimethoxy-2'-hydroxy-chalcone (4)⁹ obtained as orange crystals (75%) mp. 107 - 108 ºC and 4'-methoxy-2,4-dichloro-chalcone (5)²⁶ obtained as white crystals (69%), mp. 136.1 - 137.4 ºC.

Cell culture

HUVEC-derived endothelial cell line, (EA.hy926) was kindly provided by C-J Edgell and was grown in Dulbecco's modified Eagle Medium (DMEM)-low glucose (GIBCO) supplemented with 10% heat-inactiva fetal bovine serum (FBS), 2 mmol L^-1 and 50 U mL^-1 penicilin/streptomycin (Sigma).

Human hepatocellular carcinoma HepG2 cells (American Type Culture Collection HB-8065) were grown in monolayer culture in DMEM-high glucose with 10% FBS and antibiotic-antimicotic (GIBCO). All cell cultures were grown at 37 ºC in a 5%: 95% CO₂: air atmosphere controlled.

Cell viability assay

Cell viability was evaluated using the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) colorimetric assay (Invitrogen, Eugene, Oregon, USA). Cell viability was quantified by the amount of MTT reduction²⁷ HepG2 and EA.hy926 were exposed to different concentrations of chalcones for 48 hours. After treatment cells were co-incubated with MTT (0.5 mg mL) for 4 hours, and then solubilized with an acidified (0.04 N HCl) isopropanol/dimethyl sulfoxide (DMSO) solution. Optical density was measured at 540 nm. All experiments were performed as triplicates. Data were expressed as percentage of survival cell. Cell survival (%) data were plotted and adjusted to a sigmoidal best-fit curve, where: IC₅₀ is the chalcone concentration to reach the half-maximal cell survival.

Interaction of chalcones with CT-DNA by spectrophotometric titration

Absorption spectroscopy is a useful tool to study the binding of drugs to DNA. Increments in DNA concentration result in shifts of absorption bands, which denote an effect of hyperchromism, resulting from a direct interaction between CT-DNA and the chalcones. These changes are similar to those small molecules that bind to double-stranded DNA through noncovalent interactions^28,29

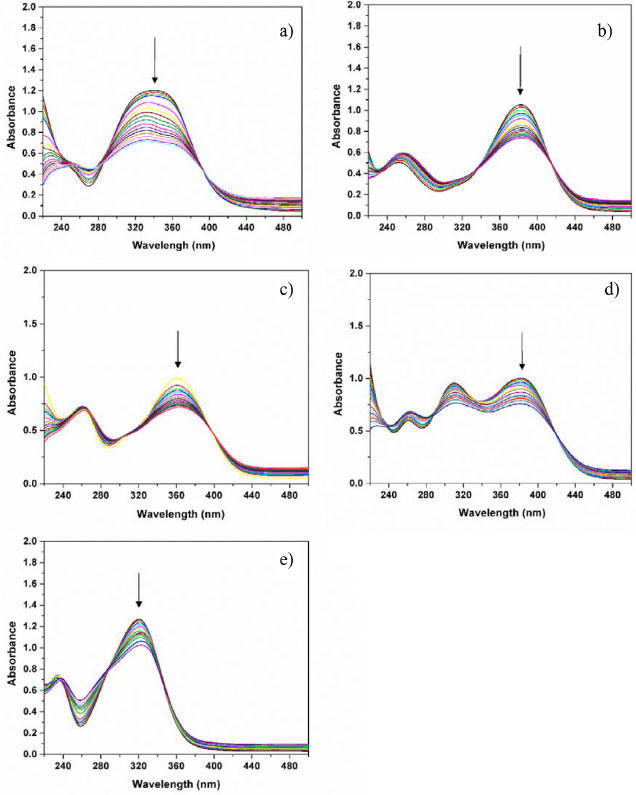

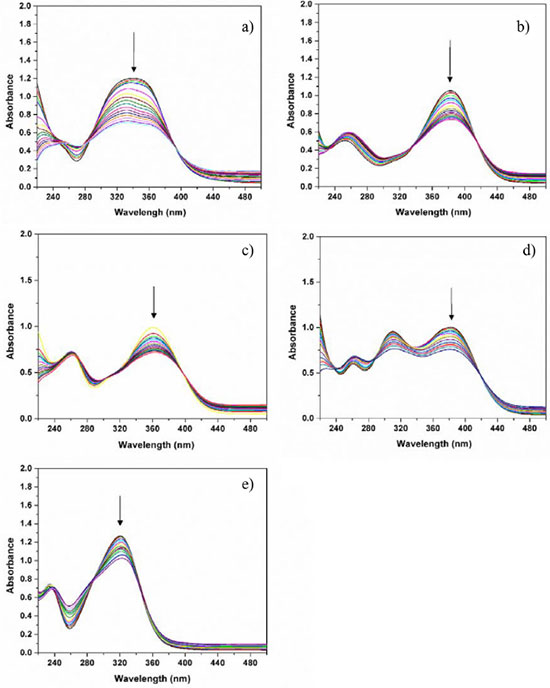

In this sense, the binding constants for the chalcone compounds with CT-DNA were determined by absorption titration at room temperature through the stepwise addition of a CT-DNA solution (10 µL, ∼4×10^-4 mol L^-1) to a solution of each chalcone (2 mL of (1) 4.8×10^-5 mol L^-1, (2) 4.8×10^-5 mol L^-1, (3) 5.6×10^-5 mol L^-1, (4) 4.8×10^-5 mol L^-1 and (5) 4.8×10^-5 mol L^-1) in buffer Tris/HCl and NaOH adjusted to pH 7.39.

UV-vis absorption spectra were recorded between 190-1000 nm and the titration was finished when the intensity of those two bands did not change significantly upon further addition of CT-DNA. The binding constant Kb was calculated by using the Scatchard equation:

where [DNA] is the concentration of DNA, ε_a is the molar absorption coefficient of the complex chalcone-DNA at given DNA concentration, ε_f is the molar absorption coefficient of the solution of the free chalcone and ε_b is the molar absorption coefficient of the chalcone when fully bound to DNA. A plot of [DNA]/[ε_a-ε_f] vs [DNA] gives 1/[ε_b-ε_f] as the angular coefficient. The K_b is determined by a ratio between the angular and the linear coefficients.

Viscosity

Hydrodynamic methods have been employed to test the binding mode of DNA to agents. In this sense, viscosity changes provide experimental advantages since viscosity is sensitive to length changes of DNA and the measures can reliably distinguish intercalation from groove binding. When intercalation is present, a planar ligand fragment is placed between adjacent base pairs, which induces lengthening of the helix. These interactions that result in the increase of the DNA length generate an increase of viscosity. On the other hand, a groove binder, typically carries out subtle changes and the DNA remains in the unperturbed form and not increase of the DNA length is observed, therefore this binding mode shows no increase of the viscosity of the DNA solutions.^18,19

In the herein work, the effect of the increasing concentration of chalcones over the relative viscosity of CT-DNA at room temperature was measured employing a viscosimeter Anton Par Lovis 2000M. The values for relative specific viscosity (η/η₀)^1/3, where η₀ is the specific viscosity contributions of DNA in absence of compound and η is the viscosity in the presence of the complex, were plotted against [complex]/[DNA] where [complex] is the concentration of the chalcones and [DNA] is the concentration of CT-DNA.



RESULTS AND DISCUSSION

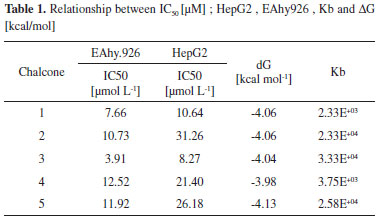

The fact of inhibiting the replication process of DNA by action of drugs is the motivation of designing new and more efficient antitumor drugs. Moreover, their effectiveness depends on the mode and affinity of their binding ability to the DNA strands.¹³ It is for this reason that we employed two cell lines, which have different DNA replication rate, where HepG2 cells have a high rate of replication with respect to EA.hy296 cells. The interactions of chalcones with DNA may have a crucial relevance in its induction of tumor cell death. Our results showed a higher cytotoxic effect of chalcones in EA.hy296 cells compared to HepG2 cells (Table 1).





This selectivity of chalcones could be explained by a lower rate of DNA replication observed in EA.hy296 cells, however both lines are tumor and have low IC₅₀, experiments in primary cultures of normal cells are necessary to determine their selectivity only to tumor cells. The IC₅₀ and Kd values for the chalcone's family studied here were compared in both cell lines. To compare the effect of chalcones on HepG2 and EA.hy296 cells, a correlation between IC50 and Kd was established (Table 1). The docking computations suggest that the chalcones does interact with DNA via intercalation and that the chalcones exhibits affinity for double stranded DNA as shown in Figure 2, such interaction with the nucleic acids could inhibit cellular DNA synthesis during DNA replication.

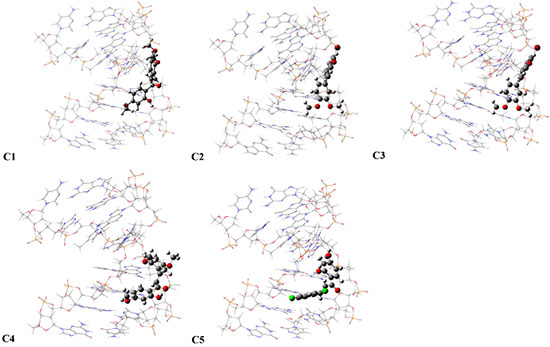

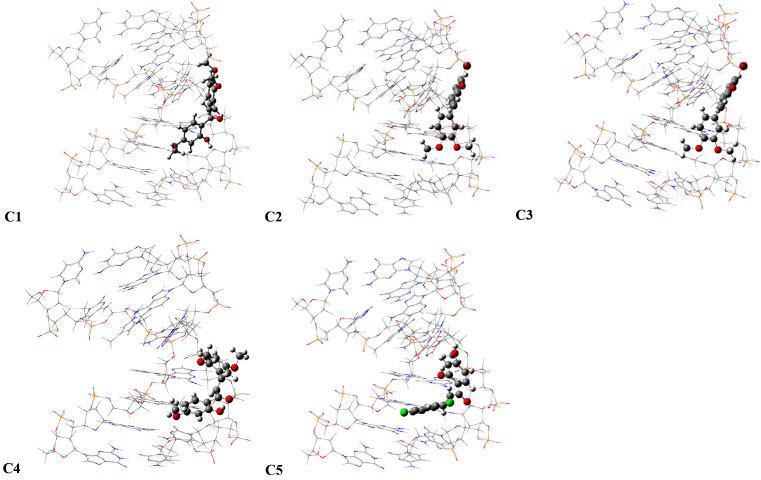

According to this docking experiment, the complexes reasonably bind with DNA. The minimum energy obtained for a docked structure (Figure 2) suggest that the best possible conformation of the ligand interaction, is mainly through the aromatic ring being inside the DNA strand. It has been observed that the complex is stabilized by electrostatic hydrogen bonding with DNA bases, in addition to van der Waal's and stacking-bond interactions between electron deficient chalcone ring and purine-pyrimidine bases. The binding energy values are presented in Table 1.

Chalcones can bind with double-stranded DNA in various binding modes on the basis of its structure. However, hypochromic effect could be attributed to the stacking interaction between the aromatic rings of the ligand framework and DNA base pairs as well. The hypochromism and bathochromic shifts may commonly vary in consistence with the strength of intercalative interaction of the complex with DNA helix as well as overall conformation of the DNA. The intrinsic binding constant of the chalcones with DNA was measured as Kb (see Methods). The low value of the binding constant obtained here (Kb = C1 2.33×10³, C2 2.33×10⁴, C3 3.33×10⁴, C4 3.75×10³, C5 2.58×10⁴) suggests that the chalcones interacts with DNA double strand in an intercalated manner (Figure 3).

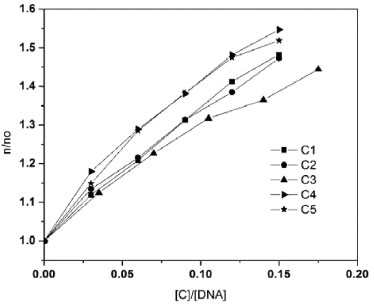

On the other hand, taking into account the viscosity measurements, on increasing the amounts of C4>C5>C1>C2>C3 bound to DNA, the relative viscosity of the DNA increases steadily (Figure 4). The observed linear increase in viscosity as a function of chalcone content for all compounds across the range of the relation of chalcone-DNA concentrations, suggests the fact that the interaction of the compounds with the DNA leads to increase the length of the DNA chains, which is indicative of the classical intercalation model.^18,19





Finally, the results of UV-vis spectroscopy, viscosity and docking measurement showed that chalcones binds with DNA via intercalation. It also suggests that the interactions of the chalcones caused a change in the conformation of DNA and thus an increase in intensity of the antitumoral activity was generally observed. Moreover, the results described in this study showed that changing the ligand environment could modulate the binding property of the chalcones with DNA.



CONCLUSIONS

Three different approaches (spectrophotometric analysis, viscosity and molecular modeling) were considered to study the interaction between a family of chalcones and DNA.

After satisfactory spectroscopic measurements of the DNA binding ability with the studied compounds, molecular docking calculations were performed to understand the preferred orientation of sterically acceptable complexes.

Furthermore, increase in viscosity measured in the viscosity studies of chalcones-DNA complexes, helped to corroborate that the chalcones and DNA can interact via intercalation.

In general, the experimental and theoretical calculations indicated the presence of interactions between the chalcone's family with CT-DNA, which could explain the differences in cytotoxicity obtained in different cell types, since DNA replication is frequent in highly proliferating cells.
