|Molecular descriptors of benzenoid systems
Nazeran Idrees1,*; Muhammad Nawaz Naeem1; Fida Hussain1; Afshan Sadiq2; Muhammad Kamran Siddiqui3
1. Department of Mathematics, Government College University Faisalabad, Faisalabad, 38000, Punjab, Pakistan Recebido em 31/05/2016 *e-mail: firstname.lastname@example.org Molecular descriptors are being widely used in QSAR/QSPR studies in chemistry and drug designing as well as modeling of compounds. Different topological descriptors have been formulated to investigate the physio chemical properties and chemical reactivity of compounds. In this article we gave exact relations for first and second Zagreb index, hyper Zagreb index, multiplicative Zagreb indices as well as first and second Zagreb polynomials for some benzenoid systems.
1. Department of Mathematics, Government College University Faisalabad, Faisalabad, 38000, Punjab, Pakistan
Recebido em 31/05/2016
Molecular descriptors are being widely used in QSAR/QSPR studies in chemistry and drug designing as well as modeling of compounds. Different topological descriptors have been formulated to investigate the physio chemical properties and chemical reactivity of compounds. In this article we gave exact relations for first and second Zagreb index, hyper Zagreb index, multiplicative Zagreb indices as well as first and second Zagreb polynomials for some benzenoid systems.Palavras-chave: benzenoid hydrocarbons; chemical graphs; topological indices.
Benzenoid hydrocarbons are present naturally in our environment, minerals, food and are also produced as byproducts in certain reaction and have large scale applications in chemical industry. Apart from their extensive use, benzenoid hydrocarbons are carcinogenic and pollutants. Benzenoid systems are actually hydrogen depleted benzenoid hydrocarbons.
Benzenoid systems are planar, consist of regular hexagons which do no overlap and have no hole as shown in Figure 1.1

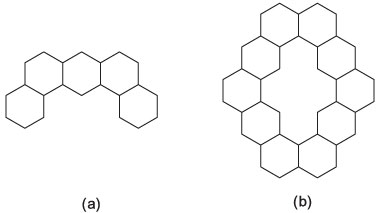

Figure 1. An example of benzenoid system(a) and a non - benzenoid system (b)
Let G be a simple graph, with set of vertices V and set of edges E. A molecular Graph is a simple connected graph where vertices denote atoms and edges denote bonds between atoms of the chemical compound. A molecular descriptor is a single numerical value which correlates the chemical structure with certain Physio chemical properties of the compound and is invariant under graph automorphisms. A large class of molecular descriptors depend on degree of vertices and are called degree based molecular descriptors. Degree of a vertex, say, v is number of vertices joined to v by an edge of the graph, and is denoted by d(v).
Zagreb Indices are one of the oldest known topological invariants which first appeared as terms in a formula for analysis of π-electron energy and they grow with the branching of chemical graphs.2 Balaban et al.3 named them "Zagreb group indices" which later on termed as first Zagreb index and second Zagreb index and are defined as:
In 2013, Shirdel et al.4 introduced hyper-Zagreb index which is defined as
Ghorbani and Azimi defined first multiple Zagreb index PM1(G) and second multiple Zagreb index PM2(G) of a graph G in 2012.5 These are given by the following formulae:
The first Zagreb polynomial M1(G,x) and second Zagreb polynomial M2(G,x) are defined as:
These new variants of Zagreb indices have been extensively studied recently.6-12
RESULTS AND DISCUSSION
Zigzag benzenoid system
Consider the graph G of zigzag benzenoid system, say, Zn as shown in Figure 2. Here n denote number of rows in Zn and there are two hexagons in each row of the system. Zn has 8n + 2 vertices and 10n + 1 edges.

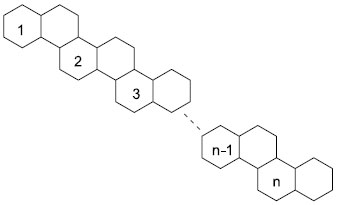

Figure 2. Graph of zigzag benzenoid system Zn
We divide edge set on the basis of degrees of endpoints of edges of the graph and also compute number of edges in each set of the partition. All vertices have degree either two or three. The edged whose endpoint vertices have degree two can be counted by analyzing the patterns for different values of n. One can observe that at each level we have two such edges, one upside and one downside the chain except the endpoints where we have two more edges with endpoint degree two. Thus having total 2n + 4 edges whose endpoints have degree (2,2). Next we analyse the number of edges with endpoints degree (2,3). In each row of the chain, we have four edges of this type, thus having total 4n edges in a chain of length. Excluding these two type of edges from total edges, we get the edges with endpoint degrees (3,3). This edge partition is summarized in Table 1 below.
We compute first Zagreb index, second Zagreb index, hyper-Zagreb index HM(G), first multiple Zagreb index PM1(G), second multiple Zagreb index PM2(G), Zagreb
Polynomials M1(G,x), M2(G,x) for Zn in the following theorem.
Theorem: Consider the zigzag benzenoid system Zn, then its Zagreb are
Proof. Using edge partition given in Table 1, we compute the molecular descriptors defined in equations 1-5 as:
Theorem: First Zagreb polynomial M1(Zn,x) and second Zagreb polynomial M2(Zn,x) of zigzag benzenoid system Zn are
Proof. First and second Zagreb polynomial of zigzag benzenoid chain Zn are computed using Table 1 as well as equations 6, 7 as:
Rhombic benzenoid system
Consider a benzenoid system in which hexagons are arranged to form a rhombic shape, say, Rn, where n represents number of hexagons along each boundary of the rhomb as given in Figure 3. This benzenoid system has 2n(n + 2) vertices and 3n2 + 4n - 1 edges. Many different benzenoid systems have been studied recently for topological invariants like trapezoid, triangular, circumcoronene and jagged rectangles.

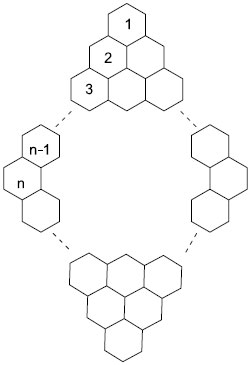

Figure 3. Graph of rhombic benzenoid system with n hexagons along each boundary
Let H be the graph of zigzag benzenoid system Zn. The edge set is partitioned into three sets, based on the degree of end vertices of each edge. The edges whose endpoints have degree (2,2) appear only on the four courners of the rhomb, which are clearly 6, whereas the edges with endpoint degree (2,3) appear in pairs along the boundary of H except the corners where they are single. Along each boundary we have 2(n - 2) + 2 edges, and summing this for four boundary lines we get total 8(n - 1) edges, and all remaining inner edges are of type (3,3). These are summarized in Table 2 below.
In the next theorem we compute first Zagreb index M1(H), second Zagreb index M2(H), hyper-Zagreb index HM(H), first multiple Zagreb index PM1(H), second multiple Zagreb index PM2(H), Zagreb polynomials M1(H,x), M2(H,x) for Rn in the following theorem.
Theorem: Consider the rhombic benzenoid system Rn , then its molecular descriptors are
Proof. Using edge partition given in Table 2, we compute different variants of Zagreb indices defined in equations 1-5 as
Theorem: First Zagreb polynomial M1(Rn,x) and second Zagreb polynomial M2(Rn,x) of rhombic benzenoid system Rn are
Proof. Now we proceed to compute the first Zagreb polynomial and second Zagreb polynomial of Rn defined in equations 6,7 and are analyzed using Table 2.
Different variants of Zagreb indices and Zagreb polynomials are analyzed for two important benzenoid systems using edge partition based on degree of vertices of the edges of the corresponding chemical graphs. We found exact relations of First Zagreb index, second Zagreb index, hyper Zagreb index, multiplicative Zagreb indices as well as Zagreb polynomials for zigzag benzenoid system and rhombic benzenoid system in above theorems, which have not been computed earlier according to the best of our knowledge.
1. Gutman, I.; Cyvin, S. J.; Introduction to the Theory of Benzenoid Hydrocarbons, Springer-Verlag: Berlin, 1989.
2. Gutman, I.; Trinajstic, N.; Chem. Phys. Lett. 1972, 17, 535
3. Balaban, A. T.; Motoc, I.; Bonchev, D.; Mekenyan, O.; Topics Curr. Chem. 1983, 114, 21.
4. Shirdel, G. H.; Pour, H. R.; Sayadi, A. M.; Iran. J. Math. Chem. 2013, 4, 213.
5. Ghorbani, M.; Azimi, N.; Iran. J. Math. Chem. 2012, 3, 137.
6. Eliasi, M.; Iranmanesh, A.; Gutman, I.; MATCH Commun. Math. Comput. Chem. 2012, 68, 217.
7. Furtula, B.; Gutman, I.; Dehmer, M.; Appl. Math. Comput. 2013, 219, 8973.
8. Gutman, I.; Das, K. C.; MATCH Commun. Math. Comput. Chem. 2004, 52, 103.
9. Gutman, I.; Furtula, B.; Vukicevic, Z. K.; Popivoda, G.; MATCH Commun. Math. Comput. Chem. 2015, 74, 5.
10. Gutman, I.; Croat. Chem. Acta. 2013, 86, 351.
11. Hayat, S.; Imran, M.; Appl. Math. Comput. 2014, 240, 213.
12. Rada, J.; Cruz, R.; Gutman, I.; MATCH Commun. Math. Comput. Chem. 2014, 72, 125.
