Support effect on the structure and properties of manganese oxide electrode materials

Huatao Wu*; Yongjun Han; Li Wang; Lihui Zhang; Xiang Wang

Department of Chemistry and Environmental Engineering, Pingdingshan University, Pingdinshan 467000, People's Republic of China

Recebido em 16/05/2017
Aceito em 29/08/2017
Publicado na web em 16/10/2017

Endereço para correspondência

*e-mail: wuhuataocn@163.com

RESUMO

The composite electrode material of manganese oxide supported on poly glucose (PGS) was prepared by using KMnO4 as manganese source. In order to study the influence of the support on the structure and properties of the composite electrode materials, the changes of the composition of the composite electrode materials were investigated in different weight ratio of KMnO4/PGS (3:1, 3:3, 3:5, 3:7, 3:9). The characterization results of XRD, Raman special and XPS indicated the composition of manganese oxides was greatly influenced by the content of PGS. When the PGS content is lower, the composition of manganese oxide in hybrid material is single-component oxide (MnOOH or Mn3O4). With the increasing PGS content, a mixture of Mn3O4 and MnCO3 was observed, furthermore proportion of MnCO3 in mixture also increased, and up to higher PGS content (KMnO4/PGS=3:9), single-component MnCO3 was founded on hybrid material. In addition, the change of composition of hybrid materials also led to an obvious difference in electrochemical performance. With the increase of PGS content, the specific capacitance of hybrid materials increases firstly, and reaches the maximum with the weight ratio of KMnO4/PGS equal to 3:3, and then gradually decreases. This was attributed to the higher electrochemical performance of Mn3O4 than that of MnOOH and MnCO3.

Palavras-chave: manganese oxides; support effects; poly glucose; composite electrode material; electrochemistry.

INTRODUCTION

Owing to the increasing energy demanding and diminishing supplying of fossil fuel, considerable effort has been devoted to the development of alternative energy. Electrochemical energy storage systems with high power and energy density, such as rechargeable batteries and electrochemical capacitors (ECs), are receiving increasing consideration.1 As an intermediate system between dielectric capacitors and batteries, supercapacitors have attracted dramatic attentions in recent years for their apparent advantage including fast charge/discharge rate high stability and high power density.2-4 As for supercapacitors, well-engineered nanocomposites composed of nanostructured supports and redox active electrodes are critical to the achievement of high electrochemical performance.

Among various electrodes materials, manganese oxides and hydroxides with layered or tunnel structure, such as MnO2, Mn3O4, Mn(OH)2 and MnOOH, are of the most promising candidates for their high specific capacitance, low cost and environment benignity.5-7 MnO2 with a layered structure is extensively studied because of its high theoretical specific capacitance.8 Mn(OH)2 with similar layered structure like MnO2, can not only accommodate large number of ions but also greatly facilitate the diffusion of ions in it.9 As for Mn3O4, the coexistence of Mn2+ and Mn3+ makes it possible for the mutual transformation of Mn2+ and Mn3+ in the redox process, which means a great deal of active sites for ion absorption.10 Therefore, this material may possess unique electrochemical performance. However, the manganese oxides nanomaterials are suffered from some disadvantages, such as poor electronic conductivity, easy aggregation and partial dissolution, which greatly hindered the application in electrodes.11,12

To improve the electrochemical performance, the porous carbon materials with high surface area and excellent electronic conductivity, such as graphene, carbon nanotubes, carbonfibers and mesoporous carbons, which are applied to prepare composite electrodes.13-15 The carbon substrates in composite electrodes act as highly conductive current collectors, meanwhile the interconnected porosity also provides continuous pathway for electrolyte diffusion, resulting in high electrochemical performance in comparison with single manganese oxides electrodes. Biomass as a carbonaceous precursor has been extensively investigated for its abundance, low cost and easy accessibility compared with other carbonaceous precursors. Recently, many attempts have been made to produce spherical carbon by hydrothermal synthesis using carbohydrate, such as glucose, sucrose and fructose.16-18 As an example, the carbon spheres using glucose by hydrothermal was synthesized at 160-250 °C. During reaction process, the polymerization reaction and cross-linking reaction of glucose occurred and formed polymers intermediates, and then from here to the carbonaceous.17 The prepared carbon spheres surface have many oxygen group (mainly -OH and -C=O), benefited these groups, carbon spheres can be used as supports, loaded with metals and metal oxides, especially for transition metal oxides/ carbon spheres as supercapacitor electrodes.19,20

Generally, the preparation methods of manganese oxides/carbon composite electrodes were focused on depositing manganese oxides onto carbon substrates by using a variety of approaches, including physical mixing of the components,21 thermal decomposition,22 chemical deposition using precursors such as permanganate23 and electrochemical deposition.24 In comparison with other preparation methods, chemical deposition could possibly maintain the porous structure of carbon substrates in preparation process, meanwhile high manganese oxides loading were achieved to ensure excellent electrochemical performance.24 As a precursor, strong oxidizing permanganate could react with reductive carbon substrates and form manganese oxides. Owing to the existence of various Mn valance (Mn2+, Mn3+, Mn4+), the composition of manganese oxides was attributed to the reaction conditions, such as the radios of permanganate/reducing agent,25 reaction temperature,26 pH value of solution.27 In summary, it was found that the carbon substrates have significant effects on the structure and composition of manganese oxides/carbon composite electrodes. The previous researches were focused on the preparation method and carbon substrates type of manganese oxides/carbon electrodes,13-15,21-24 however the effect of carbon substrates on the composition and electrochemical performance of composite electrodes was limited.

In this study, glucose (GS) was used as raw material to prepare poly glucose (PGS) as carbon substrates by hydrothermal reaction, and composite electrode material (manganese oxide supported on PGS) was prepared by using KMnO4 as manganese source. In order to study the effect of the carbon substrate on the structure and properties of composite electrode materials, the changes of the composition of the composite electrode materials were investigated in different weight ratio of KMnO4/PGS.



EXPERIMENTAL

Preparation of poly glucose (PGS)

The preparation of poly glucose (PGS) was described in other references.28-30 In this typical synthesis procedure, 3 g of glucose (AR grade, Sinopharm Chemical Reagent Co, Ltd) was dissolved in 30 mL deionized water, and then the solution was transferred into 50 mL stainless steel autoclave and maintained at 180 °C for 6 h. The brown products were washed respectively by water and alcohol for five times, and then dried at 80 °C for 5 h.

Preparation of manganese oxide supported on PGS

The preparation of manganese oxide usually can be summarized into two methods. One preparation is the oxidation of low state of Mn species (Mn2+) by oxidizing agents, such as KMnO4 and (NH4)2S2O8.31,32 The other preparation is the reduction of KMnO4 by reducing agents, such as ethanol,33 PEG,34 carbon.35 In this article, the manganese oxide/PGS composite electrodes were prepared with hydrothermal method by using KMnO4 as manganese source. PGS powder as-prepared (10 mg) was dispersed in deionized water (30 mL) by ultrasonic vibration for 2 h, and then KMnO4 powder (30 mg) was added into above suspension and stirred by magnetic bar. Subsequently, the mixture was transferred into a stainless steel with a capacity of 30 mL and heated at 100 °C for 12 h. Finally, the autoclave was cooled to room temperature naturally. The resultant product was collected by centrifugation and repeatedly washed with deionized water. The final product was dried in a vacuum at 80 °C overnight and denoted as KMnO4/PGS (3:1). For comparison, manganese oxide/PGS composite electrodes with different weight ratios of KMnO4/PGS were similarly prepared and denoted as KMnO4/PGS (3:n, n=3, 5, 7, 9). It should be noted that the addition of KMnO4 was keep constant weight (30 mg).

Electrochemical measurements

The electrochemical properties of the materials were investigated by the cyclic voltammetry (CV), galvanostatic charge/discharge (GCD) and repeating chronopotentiometry (RCP) on a CHI 660E electrochemical workstation (Shanghai CH Instrument Company, China) at room temperature. The fabrication of electrode: the as-prepared manganese oxide/PGS, carbon black and polytetrafluoro-ethylene (PTFE) were mixed in a mass ratio of 70:20:10 and dispersed in ethanol. Then the mixture was coated onto a nickel foam substrate (1 cm × 1 cm), and then dried at 80 °C for 12 h in a vacuum. The loading mass of electrode was about 6 mg. Electrochemical measurements were carried out in a conventional three-electrode cell with 1 mol L-1 Na2SO4 aqueous solution as the electrolyte. Platinum foil and a saturated calomel electrode (SCE) were used as the counter electrode and the reference electrode, respectively. CV tests were respectively done between 0 and 1.0 (vs. SCE) at different scan rates of 5 to 80 mV s-1. GCD curves were measured in the potential range of 0 to 1.0 eV (vs. SCE) at different current densities of 0, 1, 2, 4, 6, and 8 A g-1. According to the GCD curves, the specific capacitances of the electrodes were respectively calculated using the following equation:

where C (F g-1) is the specific capacitance, I (mA) is charge discharge current, Δt (s) is the discharge time, m (mg) represents the loading mass of electroactive material, and ΔV (V) is the potential drop in the galvanostatic discharge process. In order to test the long term charge-discharge cycling stability of the electrodes, RCP measurements were employed applying double current pulse (± 2.0 mA) for 3000 cycles.

Sample characterization

XRD

XRD patterns for the calcined samples were recorded with an advanced D8 powder diffractmeter (Bruker, Germany) with Cu Kα radiation (λ = 0.154 nm). The samples were scanned at small-angle from 0.5° to 10° (2θ) and at large-angle from 10° to 80° (2θ) with a step size of 0.02°, respectively. The crystallite phase was estimated with the data of Joint Committee on Powder Diffraction Standards (JCPDS).

XPS

XPS was recorded on a VG Mutilab 2000 spectrometer (Bruker, Germany) using an Al Kα (hν = 1486.7 eV) as X-ray source. To remove charging shifts and deal with Fermi edge coupling problems, binding energies (BE) were scaled against the peak of the C-(C, H) component coming from contamination carbon (set to 284.6 eV). The pressure of the sample chamber was less than 2×10-8 Pa.

Raman spectroscopy

Normal Raman experiments were performed in the dispersivemode using a Bruker Senterra Raman spectrometerequipped with an Olympus 100_ long working distance microscope objective and a charge-coupled device (CCD) detector. A Spectra Physics Cyan solid state laser, a Melles Griot He-Ne laser and a continuous wave (CW) diode laser, emitting at 488 nm, 633 nm and 785 nm respectively, were used as the excitation sources, and two holographic gratings (1800 and 1200 rulings per mm) provided a spectral resolution of 3-5 cm-1. Raman analyses were carried out by collecting 1 scan with an integration time of 30 s. The output laser power was 2 or 5 mW for 633 nm excitation



RESULTS AND DISCUSSION

Microstructure characterization

The XRD patterns of manganese oxide/PGS were shown in Figure 1. As shown in Figure 1, a broadening of diffraction peaks at 22° was observed at PGS, indicating that the amorphous carbon in PGS. After deposited with manganese oxide, the intensity of diffraction peak at 22° of PGS decreased, meanwhile other new diffraction peaks were observed with the increasing PGS content. It can be seen that the XRD diffraction peaks of MnOOH (JCPDS No. 41-1379) were observed on manganese oxide/PGS with lower content of carbon substrates (KMnO4/PGS=3:1). When the weight ratios of KMnO4/PGS equaled to 3:3, the diffraction peaks of MnOOH disappeared, meanwhile the diffraction peaks of Mn3O4 (JCPDS No. 27-0734) was observed. With the increasing PGS content, the mixed compounds including Mn3O4 and MnCO3 (JCPDS No. 44-1472) were obtained, moreover the diffraction peaks of Mn3O4 were gradually weakened and completely substituted by the diffraction peaks of MnCO3 on hybrid materials with high PGS content (KMnO4/PGS=3:9). As seen from results of XRD, the composition of manganese oxide/PGS was depended on the content of carbon substrates (PGS). When the content of carbon substrates is lower, the major composition of manganese oxide was MnOOH with high valence Mn cation (+3), and then with increasing the content of carbon substrates, MnOOH was substituted by Mn3O4 with mixed-valence Mn cation (+3 and +2), finally the conversation from Mn3O4 to MnCO3 was observed on manganese oxide/PGS with high carbon substrates.

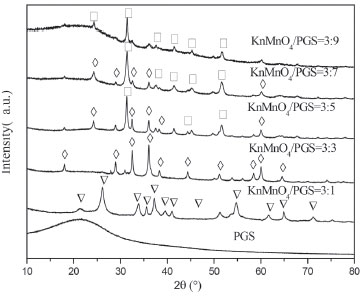

Figure 1. XRD patterns of manganese oxide/PGS with different weight ratios of KMnO4/PGS. ▽: MnOOH, ◊: Mn3O4, □: MnCO3



Raman spectroscopy

To further confirm the composition of manganese oxide in the manganese oxide/PGS hybrid materials, these samples were also investigated by Raman scattering, as shown in Figure 2. For the Raman spectrum of manganese oxide/PGS (KMnO4/PGS=3:1) with lower PGS content, two peaks at 362 and 558 cm-1 were observed and could be assigned to the presence of MnOOH.36

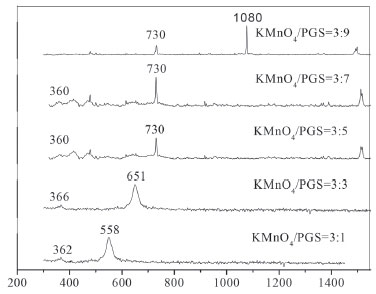

Figure 2. Raman spectrum of manganese oxide/PGS hybrid materials



As for manganese oxide/PGS with KMnO4/PGS=3:3, the peaks of MnOOH disappeared, meanwhile new peaks centered at 366 and 651 cm-1 were observed, which can be assigned to Mn3O4.37 With the increasing content of carbon substrates (PGS), the peak intensity of Mn3O4 was gradually weakened, furthermore a new peak centered at 730 cm-1 corresponding to MnCO3 was strengthened. And then two obvious peaks about 1080 and 730 cm-1 corresponding to MnCO3 were observed in manganese oxide/PGS with higher PGS content (KMnO4/PGS=3:9).38

X-ray Photoelectron spectroscopy (XPS)

To further determine the composition of manganese oxide/PGS hybrid materials, XPS measurements were employed to analyze. The XPS spectral of Mn2p and O1s for all samples were shown in Figure 3a and 3b, respectively. As seen from Figure 3a, binding energy at 641.7 eV and 654.6 eV on material with KMnO4/PGS=3:1 was assigned to Mn2p3/2 and Mn2p1/2, which approximately equaled to the binding energy of MnOOH.39 As for the material with KMnO4/PGS=3:3, the binding energy at binding energy at 641.4 eV and 654.1 eV, and the energy separation between these peaks is 12.7 eV, which is in agreement with the earlier literature on mixed valent Mn3O4.40 With the increasing content of PGS, two satellite binding energy at 639.8 eV and 652.6 eV were observed, moreover the peak intensity increases with the increasing PGS content. According to the literature, the located binding energies around 639.8 eV and 652.6 eV usually are attributed to MnII2p3/2 and MnII2p1/2, respectively.41 Therefore, the proportion of MnII in manganese oxide/carbon substrates hybrid materials increases with the increasing PGS content. When the content of PGS up to KMnO4/PGS=3:9, two binding energy located at 639.2 eV and 651.8 eV can be assigned to MnII2p. The high resolution results of O 1s for all materials were shown in Figure 3b. As can be seen from the results, O1s binding energy of material with KMnO4/PGS=3:3 can be described as the superposition of two peaks (529.9 eV and 532.1 eV) by a Gaussian distribution, which were attributed to the O2- and OH arised from MnOOH. As for the material with KMnO4/PGS=3:5, the binding energy at 531 eV is associated with the lattice oxygen in Mn3O4.42 With the increasing content of PGS, three peaks were observed on materials, locating at 530.8 eV, 531.8 eV and 533.2 eV, moreover the intensity of peak at 531.8 eV gradually increases, while the O 1s peak located 530.8 eV presented an opposite change trend. The binding energy at 530.8 eV is associated with the lattice oxygen in Mn3O4, and higher binding energy at 531.8 eV is assigned to oxygen in CO32−.43 As seen from the results of O1s binding energy, when the PGS content is lower, the composition of manganese oxide in hybrid material is single-component oxide (MnOOH or Mn3O4). With increasing PGS content, a mixture of Mn3O4 and MnCO3 was observed, furthermore proportion of MnCO3 in mixture also increased, and up to higher PGS content (KMnO4/PGS=3:9), single-component MnCO3 was founded on hybrid material. These conclusions are in agreement with the characterization results of XRD and Raman spectra.

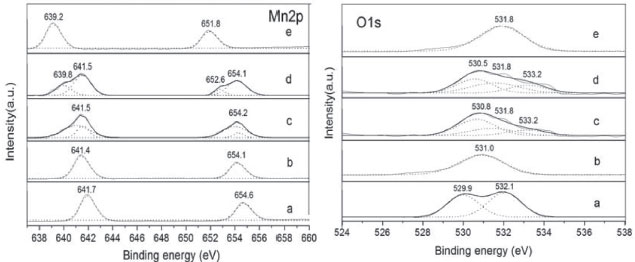

Figure 3. XPS spectra of Mn2p and O 1s on the hybrid materials with different PGS contents: (a) KMnO4/PGS=3:1, (b) KMnO4/PGS=3:3, (c) KMnO4/PGS=3:5, (d) KMnO4/PGS=3:7, (e) KMnO4/PGS=3:9



Scheme of fabrication process of manganese oxide/PGS hybrid materials

The hybrid materials were prepared by hydrothermal as described earlier in experiment section. The redox reaction between KMnO4 and carbon substrates (PGS) at 100 °C in hydrothermal condition influenced the composition of hybrid materials. A large number of manganese oxides are available owing to the different oxidation states of manganese (II, III, and IV). For the reduction reaction of KMnO4 to manganese oxide, the composition of final products will depend on content of reducing agent.

As can be seen from results of XRD, Raman spectra and XPS, the composition of hybrid materials was greatly affected by the ratios of KMnO4 and carbon substrates (PGS). In our research, the content of KMnO4 is constant, so the reaction product was greatly affected by the content of reducible agent (PGS). When the mixed KMnO4 solution with lower PGS content (KMnO4/PGS=3:1) reacted under hydrothermal condition and formed MnOOH. According to the literature, the formation of MnOOH should undergo a two-step reaction process, which is the self-hydrolysis of KMnO4 to MnO2 in solution and then further reduction of MnO2 to MnOOH. Firstly, MnO4 anions in solution tend to oxidize water with the concurrent evolution of oxygen and spontaneous precipitation of MnO2, and then the formed MnO2 transformed into MnOOH according to Eq. (2) during the hydrothermal process due to the self generated pressure in the autoclave.44 It is very unfortunately that MnO2 was not detected in this work, however many research also confirmed that MnOOH is the final product, when the reducing agent was low.45-48

With the increasing reducing agent (PGS) content, the reducing atmosphere is becoming stronger, MnOOH become unstable in the system and some of it will dehydrate to produce Mn3O4.49 Therefore, single Mn3O4 was observed on hybrid material with KMnO4/PGS=3:3.

When the further increasing reducing agent (PGS) content, the reducing atmosphere are power enough to reduce partial Mn species of Mn3O4 to Mn2+, meanwhile part of PGS will be oxidized into CO32−, which leads to the formation of MnCO3.50 When the reducing agent (PGS) content is higher, most of Mn species was reduced into Mn2+, so single phase MnCO3 was founded on hybrid material with KMnO4/PGS=3:9. The scheme of fabrication process of manganese oxide/PGS hybrid materials was shown in Figure 4.

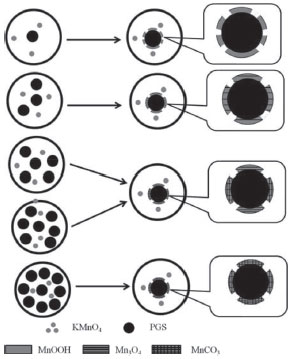

Figure 4. Scheme of fabrication process of manganese oxide/PGS hybrid materials



Electrochemical property of manganese oxide/PGS hybrid materials

Galvanostatic charge/discharge curves of the electrodes

In order to investigate the capability of the materials, Galvanostatic charge-discharge (GCD) performance measurements were carried out in 1.0 mol/L Na2SO4 at different constant current densities, as shown in Figure 5a-f. For hybrid materials with low and high KMnO4/ PGS(3:1 and 3:9), rapid charge-discharge rates and a little deviation from symmetrical variations of the voltage were found (Figure 5a and 5e). However, better charge-discharge performance and linear symmetry were displayed in other hybrid materials (Figure 5b-5d). In fact, MnO2 and Mn3O4 usually display excellent charge-discharge performance, which could be attributed to reversible redox transitions involving the exchange of protons and/or cations with the electrolyte, as well as the transitions between Mn species with different valence stats (Mn2+, Mn3+, Mn4+).51,52 According to the results of XRD, Raman spectroscopy and XPS, single manganese oxide (MnOOH and MnCO3) was formed on hybrid materials with low and high KMnO4/PGS (3:1 and 3:9), however manganese oxides with mixed Mn valence states (Mn2+, Mn3+) were found on other materials, such as Mn3O4 or mixture of Mn3O4 and MnCO3. Therefore, higher charge-discharge performance and linear symmetry were displayed on materials with mixed Mn valence states, such as Mn3O4 or mixture of Mn3O4 and MnCO3, especially for material with KMnO4/ PGS=3:3 and 3:5 (5b and 5c). Figure 5f shows the charge-discharge curve of all hybrid materials at the same current density of 2 A g-1. The specific capacitance of the electrode can be calculated according to C=(I·Δt)/ (m·ΔV) from the discharge curves. The specific capacitance of hybrid materials with different KMnO4/PGS is 31.85, 74.21, 54.46, 44.74 and 32.60 F g-1, and higher specific capacitance of hybrid materials with KMnO4/PGS=3:3 (75.21 F g-1) than that of other materials. On the other hand, the specific capacitance decreases obviously when Mn3O4 is transformed to MnCO3, this is contributed to the poor pseudocapacitive performance of MnOOH and MnCO3 compared to Mn3O4.

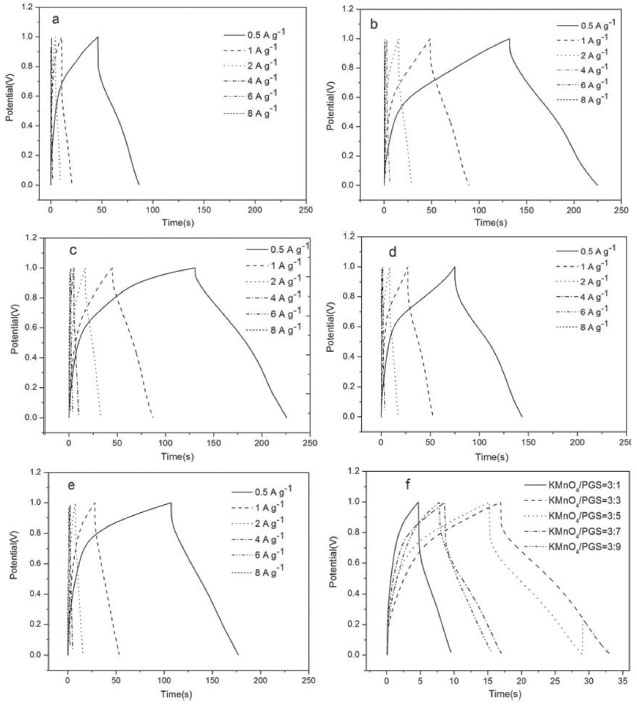

Figure 5. (a)-(e): Galvanostatic charge-discharge curves of the products as prepared in 1mol/L Na2SO4 aqueous electrolyte, (f) Galvanostatic charge-discharge curves of hybrid materials at 2 A g−1



Recently, Zhang et al. synthesized MnOOH-graphene nanocomposite by facile way and obtained maximum supercapacitance of 127 F g-1 at a current density at the current density of 4 A g-1.53 C. D. Lokhande et al. reported specific capacitances of 344 F g−1 at a scan rate of 5 mV s−1 for Mn3O4/graphene composite prepared.54 P. Balaya et al. reported a specific capacitance of 216 F g−1 for MnCO3.55 The specific capacitance of hybrid materials with different KMnO4/PGS is 31.85, 74.21, 54.46, 44.74 and 32.60 F g-1, and higher specific capacitance of hybrid materials with KMnO4/PGS=3:3 (75.21 F g-1) than that of other materials. The value obtained in the present study is comparatively lower than previously reported values.

The improvements in energy density (E) can be achieved by maximizing the specific capacitance (C) and/or the cell voltage (V).

According to the equation (6), the energy density (E) of all composite hybrid material is 11.32, 22.39, 19.36, 15.91 and 11.59 Wh/kg, and results indicate that the energy density increases firstly, and reaches a maximum value (22.39 Wh/kg) on material with KMnO4/PGS=3:3, and then gradually decreases to lower value (22.39 Wh/kg), when the PGS content up to highest value (KMnO4/PGS=3:9). These effects are in agreement with trend change of specific capacitance.

The specific capacitance of hybrid materials in this article with similar manganese oxide electrode materials. Much lower specific capacitance (75.21 F g-1) was found in this article than that of similar research, which was probably attributed to the property of support (PGS). According to the preparation method of PGS, glucose was used as raw material to prepare PGS in hydrothermal condition, and there may be many oxygen-containing function groups on the PGS support surface. These oxygen-containing functional groups could trigger the quick Faradaic reactions in electrochemistry process, which lead to rapid charge-discharge rates and a little deviation from symmetrical variations of the voltage during the charging-discharging process.56 Therefore, much lower specific capacitance was found in this article than that of similar research. It should be noted that this explanation maybe not rigorous, which should be further confirmed.

Cyclic voltammogram (CV) curves of the electrodes

Figure 6(a)-(e) shows cyclic voltammetry curves of the products as prepared in 1 mol/L Na2SO4 aqueous electrolyte at scan rates of 10, 20, 40, 60 and 80 mV/s. For all the samples, the CV curves exhibit a little deviation from rectangular shape, and these effects are more obvious at high scan rates, indicating the presence of pseudocapacitance. Moreover, in comparison with hybrid material with KMnO4/PGS=3:3, the deviation from rectangularity of the CV curve for other samples become obvious as the scan rate increases, especially for KMnO4/PGS=3:9. The distorted rectangularity of the CV curve was probably ascribed to the charge of ion transplant surrounding, for which the ions can only reach the outer of the electrode and not enter into the interior pore at high scan rate.57,58 In addition, hybrid material with KMnO4/PGS=3:3 shows two redox reaction peaks, while these peaks are not obvious for other samples, especially for KMnO4/PGS=3:9, in which the redox reaction peaks can almost not be observed. As for hybrid material with KMnO4/PGS=3:3, the anodic peaks is due to the oxidation of Mn3O4 and the cathodic peak is for the reverse process.

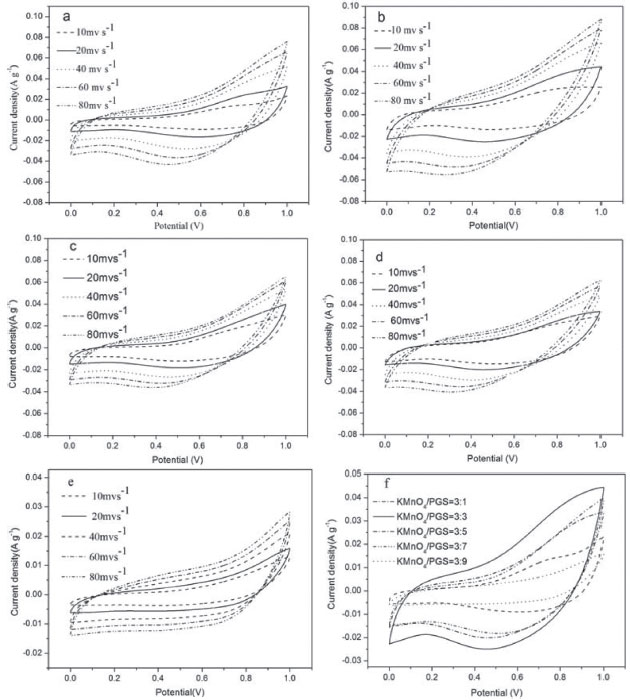

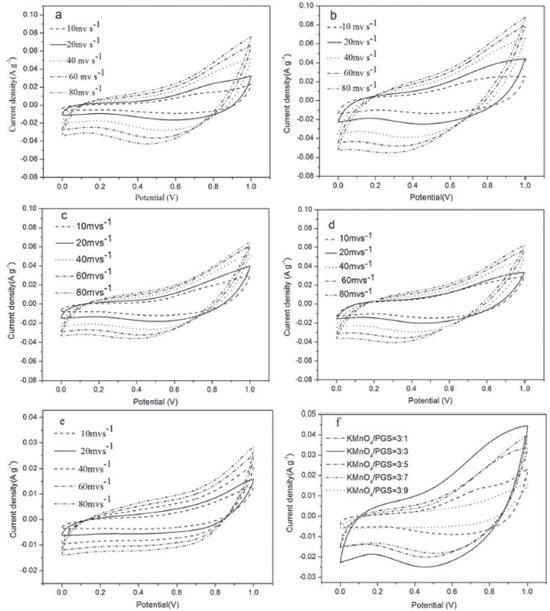

Figure 6. Cyclic voltammetry curves of the products as prepared in 1mol/L Na2SO4 aqueous electrolyte: (a)-(e) specific capacitances of hybrid materials at different scan rate (a: KMnO4/PGS=3:1, b: KMnO4/PGS=3:3 c: KMnO4/PGS=3:5, d: KMnO4/PGS=3:7, e: KMnO4/PGS=3:9), (f) specific capacitances of hybrid materials at different scan rate of 20 mV s−1



The CV curves of hybrid materials at low scan rate (20 mV s-1) were shown in Figure 6(e). In comparison with other samples, the CV curve for hybrid material with KMnO4/PGS=3:3 still retain better rectangular shape, moreover, the current density of the CV curve for hybrid material with KMnO4/PGS=3:3 increase significantly compared to those for other samples, which indicates that the hybrid material with KMnO4/PGS=3:3 can deliver much higher capacitance. However, poor current density and rectangularity for materials with KMnO4/PGS=3:1 and KMnO4/PGS=3:9 show lower capacitance. According to the results of GCD, lower specific capacitance (31.85 F·g-1) was calculated on hybrid material with KMnO4/PGS=3:1, and specific capacitance was improved and achieved a maximum (74.21 F g-1) for hybrid material with KMnO4/PGS=3:3, and then reduced to 32.60 F g-1 with the further increasing carbon substrates. Compared to KMnO4/PGS=3:1 (31.85 F g-1), higher carbon substrates (PGS) on KMnO4/PGS=3:3 will promote the electronic conductivity of electrodes, meanwhile higher pseudocapacitive performance of MnOOH than that of MnCO3, resulting in higher specific capacitance of KMnO4/PGS=3:3 (74.21 F g-1). It should be noted that lower electrochemical properties was found on MnCO3 in comparison with Mn3O4. Aijun et. al. also discovered that the reducing specific capacitance was found on MnCO3/Mn3O4 hybrid materials with the increasing molar ratios of MnCO3 to Mn3O4.59 In this paper, the characterization results of XRD and Raman indicated that proportion of MnCO3 on hybrid materials increased with the increasing content of carbon substrates (PGS). Therefore, lower specific capacitance was found on hybrid material with KMnO4/PGS=3:9. In summary, the specific capacitance decreases obviously when Mn3O4 is transformed to MnCO3. This was attributed to the poor pseudocapacitive performance of MnOOH and MnCO3 compared to Mn3O4.

Charge-discharge cycling test of the electrodes

The stability of capacitance was investigated by galvanostatic charge-discharge cycling in 1 mol L-1 Na2SO4 solution and shown in Figure 7. All hybrid material indicate good charge-discharge cycling stability except for material with KMnO4/PGS=3:1. As for the material with KMnO4/PGS=3:3, the specific capacitance exhibit excellent stability and retain 91.86% of its initial specific capacitance after 3000 cycles. However, an obvious decrease (52.65%) in specific capacitance was observed on material with KMnO4/PGS=3:1. This demonstrates that material with KMnO4/PGS=3:3 should be a good candidate as a material for supercapacitor electrodes.

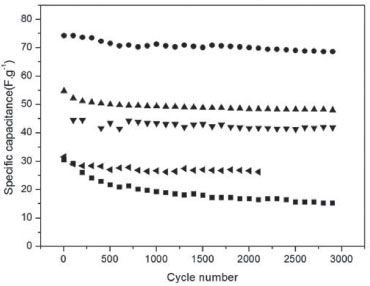

Figure 7. Charge-discharge cycling test in 1 M Na2SO4 electrolyte at the current density of 4 A g-1. ●: material with KMnO4/PGS=3:3, ▲: material with KMnO4/PGS=3:5, ▼: material with KMnO4/PGS=3:7, ◄: material with KMnO4/PGS=3:9, ■: material with KMnO4/PGS=3:1





CONCLUSION

In summary, composite electrode material of manganese oxide supported on PGS was prepared via hydrothermal reaction of KMnO4 and PGS. The results of XRD, Raman spectroscopy and XPS characterization indicate that the composition of the composite electrode materials was investigated in different weight ratio of KMnO4/PGS. When the PGS content is lower, the composition of manganese oxide in hybrid material is single-component oxide (MnOOH or Mn3O4). With the increasing PGS content, a mixture of Mn3O4 and MnCO3 was observed, furthermore proportion of MnCO3 in mixture also increased, and up to higher PGS content (KMnO4/PGS=3:9), single-component MnCO3 was founded on hybrid material. In addition, the change of composition of hybrid materials also led to an obvious difference in electrochemical performance. With the increase of the PGS content, the specific capacitance of hybrid materials increases firstly, and reaches the maximum with the weight ratio of KMnO4/PGS equal to 3:3, and then gradually decreases. This was attributed to the higher electrochemical performance of Mn3O4 than that of MnOOH and MnCO3.

In addition, the amount of support also has great influence on the electrochemical properties of composite materials. Compared to material with low carbon substrates (KMnO4/PGS=3:1), higher specific capacitance and electrochemical performance was found on hybrid material with KMnO4/PGS=3:3, meanwhile, specific capacitance decreases obviously when Mn3O4 is transformed to MnCO3. This was attributed to the poor pseudocapacitive performance of MnOOH and MnCO3 compared to Mn3O4.



ACKNOWLEDGEMENTS

This work is supported by Henan province university key scientific research project (16B150013), the high-level talent scientific research foundation project of Pingdingshan university.



REFERENCES

1. Wei , W. F.; Cui, X. W.; Chen a, W. X.; Ivey, D. G.; Chem. Soc. Rev. 2011, 40, 1697.

2. Simon, P.; Gogotsi, Y.; Nat. Mater. 2008, 7, 845.

3. Gu, H.; Wei, H.; Guo, J.; Haldolaarachige, N.; Young, D. P.; Wei, S.; Guo, Z.; Polymer 2013, 54, 5974.

4. Wei, H.; Gu, H.; Guo, J.; Wei, S.; Liu, J.; Guo, Z.; J. Phys. Chem. C 2013, 117, 13000.

5. Wang, G. P.; Zhang, L.; Zhang, J. J.; Chem. Soc. Rev. 2012, 41, 797.

6. Wang, L.; Wang, D. L.; Electrochim. Acta 2011, 56, 5010.

7. Gund, G. S; Dubal, D. P.; Patil, B. H.; Electrochim. Acta 2013, 92, 205.

8. Xu, C. J.; Kang, F. Y.; Li, B. H.; Du, H. D.; J. Mater. Res. 2010, 25, 1421.

9. Jun, M.; Zhang, L.; J. Solid State Chem. 2015, 221, 178.

10. Gund, G. S.; Dubal, D. P.; Patil, B. H.; Electrochim. Acta 2013, 92, 205.

11. Zhang, L. L.; Zhao, X.; Chem. Soc. Rev. 2009, 38, 2520.

12. Zhai, Y.; Dou, Y.; Zhao, D.; Fulvio, P. F.; Mayes, R. T.; Dai, S.; Adv. Mater. 2011, 23, 4828.

13. Yoon, Y.; Cho, W.; Lim, J.; Choi, D.; J. Power Sources 2001, 101, 126.

14. Nardecchia, S.; Carriazo, D.; Ferrer, M. L.; Gutiérrez, M. C.; Monte, F. D.; Chem. Soc. Rev. 2013, 42, 794.

15. Hu, S.; Zhang, S.; Pan, N.; Hsieh, Y. L.; J. Power Sources 2014, 270, 106.

16. Wang, Q.; Li, H.; Chen, L.; Huang, X. J.; Carbon 2001, 39, 2211.

17. Zheng, M. B.; Cao, J. M.; Jun, X. C.; Liu, J. S.; Ma, X.; J. Mater. Lett. 2006, 60, 2991.

18. Zhuang, Z. H.; Yang, Z. G.; J. Appl. Polym. Sci. 2009, 114, 3863.

19. Zheng, M. B.; Cao, J. M.; Jun, X. C.; Liu, J. S.; Ma, X.; J. Mater. Lett. 2006, 60, 2991.

20. Zhuang, Z. H.; Yang, Z. G.; J. Appl. Polym. Sci. 2009, 114, 3863.

21. Wang, G. X.; Zhang, B. L.; Yu, Z. L.; Qu, M. Z.; Solid State Ionics 2005, 176, 1169.

22. Fan, Z.; Chen, J.; Wang, M.; Cui, K.; Zhou, H.; Kuang, Y. F.; Diamond Relat. Mater. 2006, 15, 1478.

23. Subramanian, V.; Zhu, H.; Wei, B.; Electrochem. Commun. 2006, 8, 827.

24. Lee, C. Y.; Tsai, H. M.; Chuang, H. J.; Li, S. Y.; Lin, P.; Tseng, T. Y.; J. Electrochem. Soc. 2005, 152, 716.

25. Yang, Y. J.; Huang, C. D.; J Solid State Electrochem. 2010, 14, 1293.

26. Shi, X. L.; Cao, M. S.; Fang, X. Y.; Yuan, J.; Appl. Phys. Lett. 2008, 93, 183118.

27. Wen, L. Q.; Wang, Y. M.; Luo, G. A.; Sens. Actuators, B 1999, 59, 42.

28. Mi, Y. Z.; Hu, W. B.; Dan, Y. M.; Liu, Y. L.; Material Lett. 2008, 62, 1194.

29. Zhang, C. Y.; Lin, S.; Peng, J. J.; Hong, Y. Z.; Wang, Z. Y.; Jin, X. B.; Rsc Adv. 2017, 7, 6486.

30. Roberts A. D.; Xu, L.; Zhang H. F.; Chem. Soc. Rev. 2014, 43, 4341.

31. Choi, Hyun-A; Jang, H.; Hwang, H.; Choi, M.; Lim, D.; Shim, S. E.; Baeck, S. H.; Electron. Mater. Lett. 2014, 10, 957.

32. Wang, G. X.; Xu, H. F.; Lu, L; Zhao, H.; J. Mater. Chem. A 2015, 3, 1127.

33. Zhou, Y. R.; Tong, C.; Zhang. J. X.; Liu, Y.; Ren, P.; Chin. J. Chem. 2017, 38, 1294.

34. Lan, L. L.; Li, Q. J.; Gu, G. R.; Zhang, H. F.; Liu, B. B.; J. Alloy Compd. 2015, 644, 430.

35. Wu, Y. Z.; Liu, S. Q.; Zhao, K. M.; He, Z.; Yuan, H.; Lv, K.; Jia, G.; Ionics 2016, 22, 1185.

36. Folch, B.; Larionova, J.; Guari, Y.; Gue´rin, C.; Reibel, C.; J Solid State Chem. 2005, 178, 2368.

37. Gao, F.; Qu, J. Y.; Zhao, Z. B.; Zhou, Q.; Li, B. B.; Qiu, J. S.; Carbon 2014, 80, 640.

38. Sukhorukov, G. B.; Shchukin, D. G.; Dong, W. F.; Vinogradova, O. I.; Macromol. Chem. Phys. 2004, 205, 530.

39. Ramstedt, M.; Shchukarev, A. V.; Sjöberg, S.; Surf. Interface Anal. 2002, 34, 632.

40. Sourav, B.; Kanak, R.; Chinnakonda, S.; Appl. Mater. Inter. 2014, 6, 2692.

41. Tang, C. L.; Huang, Y. H.; Zeng, H.; Zhang, Z. Q.; Chem. Eng. J. 2014, 244, 97.

42. Huang, H. W.; Yu, Q.; Peng, X. S.; Ye, Z. Z.; Chem. Commun. 2011, 47, 12831.

43. Wang, G; Huang, B. B.; Lou, Z. Z.; Wang, Z. Y.; Dai, Y.; Appl. Catal., B 2016, 180, 6.

44. Yu, C.; Joong, J. T.; Hua, C. Z.; Langmuir 2005, 21, 1074.

45. Sun, W.; Hsu, A.; Chen, R. R.; J. Power Sources 2013, 242, 78.

46. Mei, J.; Zhang, L.; J. Solid State Chem. 2015, 221, 178.

47. Cao, Y. B.; Xiao, Y. H.; Gong, Y. Y.; Wang, C. F.; Li, F.; Electrochim. Acta 2014, 127, 200.

48. Wang, L.; Wang, D. L.; Electrochim. Acta 2011, 56, 5010.

49. Xia, H.; Wang, Y.; Lin, J. Y.; Lu, L.; Nanoscale Res. Lett. 2012, 7, 33.

50. Wang, X.; Li, Y. D.; Mater. Chem. Phys. 2003, 82, 419.

51. Miller, J. R.; Simon, P.; Science 2008, 321, 651.

52. Wang, G. P.; Zhang, L.; Zhang, J. J.; Chem. Soc. Rev. 2011, 41, 797.

53. Mei, J.; Zhang, L.; J Solid. State. Chem. 2015, 221, 178.

54. Gund, G. S.; Dubal, D. P.; Patil, B. H.; Shinde, S. S.; Lokhande, C. D.; Electrochim. Acta 2013, 92, 205.

55. Devaraj, S.; Vardhan, P. V.; Liu, H. Y.; Balaya, P.; J. Solid State Electrochem. 2016, 20, 1877.

56. Xu, B.; Yue, S. F.; Sui, Z. Y.; Zhang, X. T.; Hou, S. S.; Cao, G. P.; Yang, Y. S.; Energy Environ. Sci. 2011. 4, 2826.

57. Pech, D.; Brunet, M.; Durou, H.; Huang, P. H.; Mochalin, V.; Gogotsi, Y.; Taberna, P. L.; Simon, P.; Nat. Nanotechnol. 2010, 5, 651.

58. Lang, X. Y.; Hirata, A.; Fujita, T.; Cheng, M.W.; Nat. Nanotechnol. 2011, 6, 232.

59. Aijun, G. U.; Li, Z. C.; Qian, H.; Mater. Rev. 2013, 105, 107.
