JBCS

INTRODUCTION

According to Thulin et al.,¹ the Turneroideae family, in its traditional sense, comprises 10 genera and approximately 200 species that now are included in a widely circumscribed Passifloraceae family. In Brazil, this family is represented by approximately 80 species belonging two genera, Piriqueta and Turnera, found mainly in areas of savannas and rocky fields.²

Turnera species are recognized by their herbaceous shrub habit.³ Species of these genera have been used to cure various diseases, arousing the curiosity of natural-product researchers. They are characterized by the presence of terpenoids, flavonoids, steroids, benzenoids, alkaloids, and lipids.³

The aqueous extract of Turnera diffusa Willd. exhibited aphrodisiac activity in male rats, which was best evidenced by the ability of impotent male rats performance of sexual intercourse.⁴ The anti-inflammatory activity of Turnera ulmifolia L. was tested in rats and mice using the crude hydroalcoholic extract of aerial parts and the ethyl acetate and dichloromethane fractions. Both the extract and the fractions were observed to inhibit edema induced by carragenine.⁵

Turnera subulata Sm., known as "Chanana" or "flor-do- Guarujá," is a herbaceous, shrubby plant with simple leaves; its flowers are white with yellow or orange petals that may or may not be stained at the base. T. subulata Sm. is a South American species whose roots have been used medicinally in Brazilian folk medicine for the treatment of amenorrhea.³ In this work, we isolated steroids, flavonoids, and phaeophytins from T. subulata Sm.

EXPERIMENTAL

Instruments and reagents

NMR spectra (¹H, ¹³C, HSQC, HMBC, COS, and NOESY) were acquired on a Varian Mercury spectrometer operated at 200 (¹H) and 50 MHz (¹³C) (LMCA/UFPB) (substances 1, 2, 3, 5, 6, 7, and 8) and on another Varian Mercury instrument operated at 500 (¹H ) and 125 MHz (¹³C) (LMCA/UFPB) (compound 4). The NMR data were measured in CDCl_3, CD₃OD, and C₅D₅N; the chemical shifts were expressed in ppm relating to the solvent signal. Medium-pressure liquid chromatography (MPLC) was performed using a BUCHI (Switzerland) C-615 pump manager. The spectra in the infrared region were obtained on a Perkin-Elmer FT-IR-1750 using 0.001-0.003 g of sample compacted into a KBr disk. The absorptions were recorded in wavenumbers (cm^-1).

Plant materials

The aerial parts of Turnera subulata Sm. were collected at Campus I of the Universidade Federal da Paraíba (UFPB), municipality of João Pessoa, and State of Paraíba, and they were identified by botanist Profª. Drª. Maria de Fátima Agra. The voucher specimen Agra & Barbosa 6273 is deposited at the Herbarium Professor Lauro Pires Xavier (JPB) of UFPB.

Extraction, fractionation, and isolation of the chemical constituents

The plant was dried at 40 ºC for 72 h and powdered in a mechanical mill to yield 6.0 kg of powder, which was submitted to maceration with ethanol (5 × 10 L) for five consecutive days. This process was repeated until the maximum extraction of the chemical constituents was achieved. The obtained ethanol extractive solution was concentrated in a rotatory evaporator, yielding 604.42 g of crude ethanol extract (CEE).

A 300.0 g portion of the CEE was dissolved in a EtOH:H₂O (7:3) solution. The water-alcohol solution was sequentially partitioned with hexane, chloroform, ethyl acetate, and n-butanol. The obtained solutions were concentrated in a rotatory evaporator under reduced pressure, yielding 107.6 g of the hexane phase, 12.8 g of the chloroform phase, 12.3 g of the ethyl acetate phase, and 20.8 g of the n-butanol phase.

The hexane phase of the CEE (50.0 g) was subjected to vacuum filtration using silica gel 60 (Merck) 7734 (70-230 mesh) as a stationary phase supported by a Büchner funnel with a porous plate. Hexane, hexane:EtOAc (9:1; 7:3; 1:1), and EtOAc were used as eluents. The fractions were concentrated in a rotary evaporator under reduced pressure, yielding 11.7 g (hexane), 5.0 g (hexane:EtOAc 9:1), 5.7 g (hexane:EtOAc 7:3), 2.7 g (hexane:EtOAc 1:1), and 11.3 g (EtOAc).

The EtOAc fraction (5.0 g) of the hexane phase of the CEE was subjected to column chromatography using silica gel 60 (Merck) 7734 (70-230 mesh) as a stationary phase and hexane, EtOAc, and MeOH (as pure or binary mixtures with an increasing gradient of polarity) as eluents. From this column, 250 25-mL fractions were collected, concentrated under vacuum, and analyzed by thin layer chromatography (TLC) according to their retention factors. Fractions 01/67 and 68/86 each provided a precipitate as well as a supernatant. The mixture of precipitates 01/86 (116.4 mg) from the collected fractions present in the crystalline form exhibited a melting point of 137 ºC. The precipitate 01/86 was labeled as compound 1.

The hexane:EtOAc 7:3 fraction (5.7 g) of the hexane phase of the CEE from T. subulata was subjected to column chromatography using silica gel 60 (Merck) 7734 (70-230 mesh) as an adsorbent and hexane, dichloromethane (CH₂Cl₂), and MeOH (pure or binary mixtures with increasing gradient polarity) as eluents. From this column, 250 40.0-mL fractions were collected, concentrated on a rotary evaporator, and grouped according to their TLC analyses. Sub-fraction 132/250 (3.0 g) was subjected to a second column chromatographic separation using the previous methodology. From this column, we collected 262 20.0-mL fractions, concentrated them on a rotary evaporator, and analyzed them by TLC. Sub-fraction 186/262 (2.0 g) collected from the previous column was subjected to another column chromatographic separation using silica gel as the adsorbent 60 (Merck) and hexane, dichloromethane (CH₂Cl₂), and MeOH (pure or in binary mixtures) as the eluents. From this column, we collected 69 25-mL fractions, concentrated each fraction a rotary evaporator, and analyzed them by TLC. Fraction 03/04 (0.0106 g), which was a dark purple amorphous solid, was subjected to ¹H and ¹³C NMR spectroscopy; this fraction was subsequently labeled as compound 2.

The n-butanol phase (20.8 g) was subjected to column chromatography using Amberlite XAD-2 as the stationary phase and H₂O, H₂O:MeOH 7:3 and 1:1, MeOH, hexane, acetone, and EtOAc as the eluents. The fractions obtained with H₂O were concentrated in a rotary evaporator under reduced pressure, lyophilized and analyzed by TLC. The H₂O: MeOH (1:1) fraction consisted of yellow crystals with a melting point of 168.2-170.5 ºC, which was subsequently labeled as compound 3.

A 300-g aliquot of the crude ethanolic extract was subjected to fractionation using hexane, chloroform, and methanol,⁶ which resulted in three fractions that after being concentrated in a rotary evaporator, it provided three residues: hexane (8.36 g), chloroform, (15.82 g), and methanol (207.9 g).

The previously obtained chloroform residue (12.0 g) was subjected to filtration under reduced pressure in a Büchner funnel using silica gel 60 as the stationary phase and acetate and hexane (pure or as binary mixtures) as eluents. Seven fractions were obtained from this filtration.

The hexane:EtOAc (8:2) fraction (0.9849 g) obtained through the filtration of the chloroform residue from the CEE was subjected to MPLC using silica flash as the stationary phase and hexane, ethyl acetate, and methanol (pure or as binary mixtures) as the mobile phase, which resulted in 150 15-mL fractions. These fractions were concentrated on a rotary evaporator and analyzed by TLC. Sub-fraction 23/49 (0.096 g) was subjected to preparative TLC and eluted with hexane:EtOAc (9:1), which resulted in 0.026 g of a dark green amorphous solid; this solid was labeled as compound 4.

The 7:3, 1:1, and 3:7 hexane:EtOAc fractions obtained through the filtration of the CEE chloroform residue were combined according to their TLC retention times, which resulted in 2.2137 g that was chromatographed using a silica gel 60 column and eluted with hexane, EtOAc, and MeOH (pure or as binary mixtures); 181 fractions were collected and analyzed by TLC. Sub-fraction 29/41 (0.034 g) was subjected to preparative TLC and eluted with hexane:EtOAc (85:15). A dark green amorphous solid (0.0161 g) was obtained and labeled as compound 5.

The EtOAc fraction (0.6682 g) obtained from the filtration of the chloroform residue of the CEE of the aerial parts of Turnera subulata Sm. was subjected to column chromatography on a column of Sephadex LH-20 and was eluted with MeOH. Ten 10-mL fractions were collected, concentrated on a rotary evaporator, and analyzed by TLC. Sub-fraction 7/10 was recrystallized in MeOH:CHCl₃ (1:1) to yield 0.0076 g of a white amorphous solid, which was labeled as compound 6.

The methanolic residue of CEE of the aerial parts of Turnera subulata Sm. (5.0 g) was subjected to chromatography on a silica gel 60 column and eluted with a mixture of CHCl₃, MeOH, and H₂O using the method described by Zhao.⁶ We obtained 96 75-mL fractions and analyzed each by TLC. Sub-fraction 15/18 (0.109 g) was subjected to chromatography on a fresh silica column using hexane, CHCl₃, and MeOH as eluents; we obtained 59 25-mL fractions and analyzed them using the same methodology previously described. Sub-fraction 18/20 (0.0123 g) was an amorphous yellow-brown solid and was labeled as compound 7.

Electrochemical characterization of phaeophytin b

Phaeophytin b was electrochemically characterized using cyclic voltammetry (CV). The voltammograms were collected using a potentiostat/galvanostat (Autolab PGSTAT 128N) and a 10.0-mL three-electrode electrochemical cell containing a silver wire as a quasi-reference electrode (Ag-QRE) and two platinum plates (each with a surface area of 2.0 cm²) as auxiliary and working electrodes. All the experiments were performed under an inert N₂ atmosphere at room temperature in acetonitrile (ACN, Aldrich) containing 0.01 mol L^-1 of lithium perchlorate (LiClO₄, Aldrich) as an electrolyte; the scan rate was 50 mV s^-1. The phaeophytin b was solubilized in ACN and added to the cell in aliquots of 10 μL.

UV-VIS spectroscopy

The absorption spectra of phaeophytin b in ACN solution were obtained using a Shimadzu UV spectrophotometer.

RESULTS AND DISCUSSION

Structural characterization of substances 1 and 6

The IR spectra (KBr) of compounds 1 and 6 exhibited absorptions at 2958 and 2866 (C-sp³), 3417 (OH), and 1375 cm^-1 (C-O). The spectral data, along with comparisons to the literature data,⁷ allowed us to identify compound 1 as a mixture of the steroids β-sitosterol (1A) and stigmasterol (1B) and compound 6 (Figure 1) as a mixture of the steroids sitosterol-3-O-D-glucopyranoside (6A) and stigmasterol-3-O-β-D-glucopyranosoide (6B).⁷

Figure 1. Compounds isolated from Turnera subulata Sm.

Structural characterization of mixture 3

The IR spectrum (KBr) of compound 3 (Figure 1) exhibited absorptions at 2990 and 2831 (C-sp ³), 3394 (OH), and 1654 cm^-1 (C=O).

The ¹H and ¹³C NMR spectra of compound 3 exhibited absorptions consistent with a flavonoid. The existence of only one singlet at δ_H 6.28 with integration to one hydrogen was attributed to H-6 skeletal flavonoids with an oxygen moiety on carbons C-5 and C-7 of ring A. Two doublets at δ_H 5.03 (J = 2.5 Hz) and δ_H 5.01 (J = 2.0 Hz), which were assigned to anomeric hydrogen atoms, allowed us to hypothesize that 3 contained two osidic units. Signals at δ_H 6.27, 6.60, 6.91, 7.51, and 7.56 corroborated the hypothesis that 3 was a mixture of two substances; these substances are flavonoids, which we coded as 3A and 3B. A more detailed analysis of the ¹H NMR spectrum led to the hypothesis that 3B differs from 3A with respect to the substitution pattern of ring B. This hypothesis was supported by the presence of two doublets at δ_H 6.91 and δ_H 7.56 with an integration for one hydrogen each, thereby indicating ortho coupling (J = 8.5 Hz) and meta coupling (J = 2.0 Hz), respectively, and by a double doublet at δ_H 7.51 that also integrated for hydrogen with ortho coupling (J = 8.5 Hz) and meta coupling (J = 2.0 Hz). The ¹³C NMR spectrum obtained using the APT technique supported the hypothesis based on the ¹H NMR data that 3 was a mixture of two flavonoid glycosides; the ¹³C NMR spectrum exhibited 38 signals for 42 carbon atoms, 27 of which were attributed to the flavonoid carbon nuclei of 3A and 3B and 11 of which were attributed to the two glucose units (Table 1).

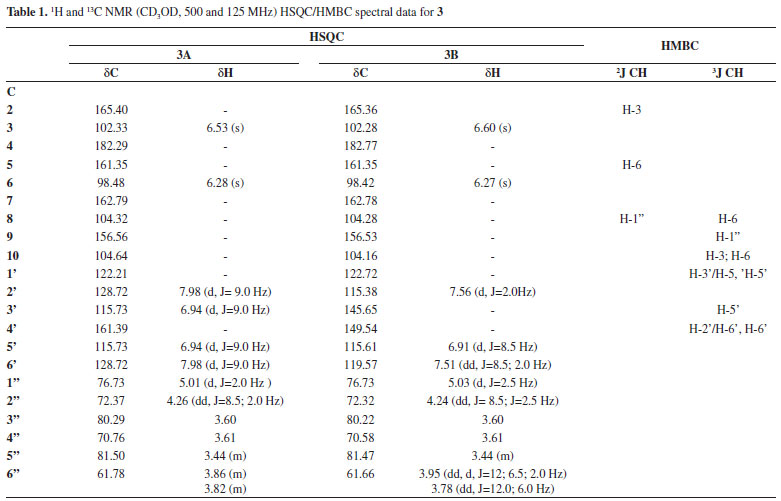

The ¹H x-¹³C NMR-HMBC spectra allowed the proposed shift to be unambiguously assigned to hydrogen and carbon substance 3A through the correlations of two and three bonds between them. The system AA'BB' was confirmed by further interactions: correlations to three bonds (³J_CH) between hydrogen atoms 2' and 6' (δ_H 7.98) and carbon C-4' (δ_C 161.39) and between hydrogen atoms 3' and 5' (δ_H 6.94) and carbon C-1' (δ_C 122.21). Ring A of 3A and 3B was defined by ³J_CH correlations between hydrogen H-6 and carbon C-8 and between hydrogen atoms H-3 and H-6 and carbon C-10, in addition to ²J_CH correlations observed between hydrogen H-3 and carbon C-2 and between hydrogen H-6 and carbon C-5 (Table 1).

A comparison of the ¹H and ¹³C NMR (1D and 2D) spectral data and the data reported in the literature^8-10 allowed 3A to be identified as 5,7,4'-trihidroxiflavona-8-C-α-glucopyranoside (apigenin-8-C-α-glucopyranoside) and 3B to be identified as 5,7,3',4'- tetrahidroxiflavona-4'-8-C-α-glucopyranoside (vitexina) (Table 1). The occurrence of these flavonoids in the genera Turnera is reported here for the first time.

Structural characterization of compounds 2, 4, 5, and 7

The IR spectra (KBr) of compounds 2, 4, 5, and 7 exhibited absorptions at 2926 (C-sp³), 3435 (OH or NH), and 1377 cm^-1 (CN); these results are consistent with the presence of a porphyrin nucleus in these compounds.

The ¹H and ¹³C NMR-APT spectra of compound 4 (Figure 1) exhibited the necessary diagnostic peaks for this compound to be identified as a phaeophytin. The resonances of the methyl groups at C-7, C-2, and C-12 appeared as sharp singlets at δ_H 3.21, 3.40, and 3.82, respectively. Hydrogen atoms H-5, H-10, and H-20 were observed as sharp singlets at δ_H 9.38, 9.53, and 8.58, respectively, in the ¹H spectrum. A vinyl group was present at C-3, as indicated by the H-3¹ double doublet at δ_H 7.98 (J = 17.81 and 11.51 Hz) coupled trans, cis, and geminate with H-3² δ_H 6.28 (d-J = 17.81 Hz) and δ_H 6.17 (dd-J = 11.51 and 1.0 Hz), respectively. An ethyl group was observed to be present at C-8. The methylene group at C-8¹ appeared as a large singlet at δ_H 3.68, and the methyl group at C-8² occurred as a triplet at δ_H 1.69 (J = 7.55 Hz). Similar to phaeophytin a, compound 4 has a five-membered ring in position 13. A keto group was observed at C-13¹, as indicated by the fully substituted carbon resonance at δ_C 189.51. The signals at δ_H 6.27 (H-13²), δ_C 169.49 (C-13³), and δ_C 52.86 (C-13⁴), through comparison with the literature data,^11,12 showed that compound 4 corresponds to phaeophytin a (Figure 1).

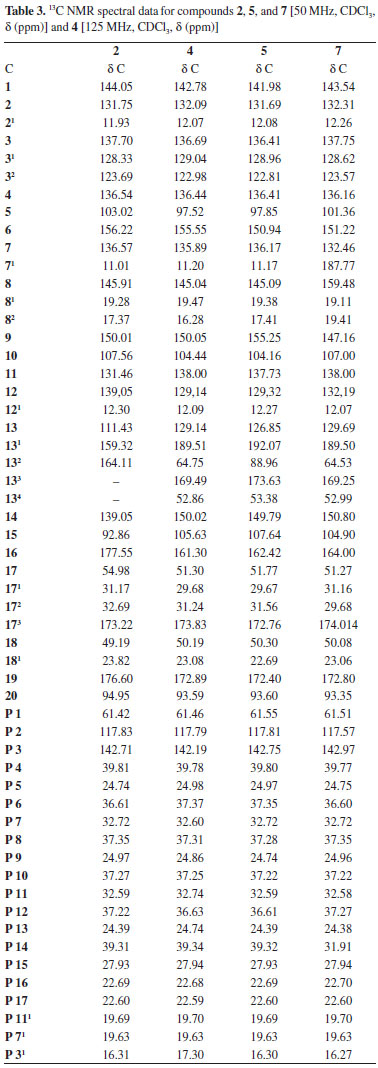

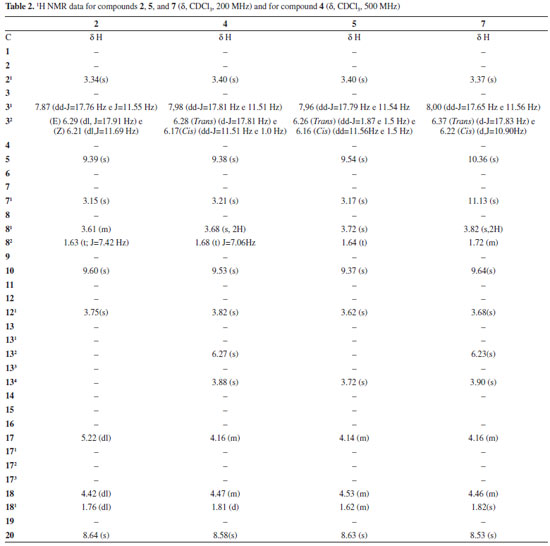

The hydrogen and carbon assignments of compounds 2 (Figure 2), 5, and 7 (Figure 1) are similar to those of compound 4 (Tables 2 and 3), consistent with compounds 2, 5, and 7 containing a porphyrin nucleus.

Figure 2. Compound 2 isolated from Turnera subulata Sm. and some correlations observed in the HMBC (Jⁿ) spectral data

The similarity between the spectral data of compounds 4 and 5 (Tables 2 and 3), the absence of signals at δ_H 6.25 (H-13¹) and δc 88.96 (C-13²) in the spectra of compound 5, which were present in the spectra of compound 4, in combination with the literature data¹³ allowed us to conclude that 5 is 13²-hydroxy-(13²-S)-phaeophytin a.

The suggestion that 7 may be related to phaeophytin a was excluded by the absence of a singlet at approximately δ_H 3.20 for the methyl group (CH₃-7¹) characteristic of phaeophytin a and by the lack of protection experienced by H-5 in 7 (δ_C 10.36) compared with H-5 in 4 and 5 that generate signals at δ_H 9.38 and δ_H 9.54, respectively. This lack of protection of 7 was caused by a diamagnetic anisotropy site due to the presence of an aldehyde carbonyl at position C-7¹ (δ_C 11.38). Analysis of the ¹³C NMR spectra using the APT technique corroborated the structure suggested by the ¹H NMR results, where the molecule has an aldehyde group at δ_C 187.77 (C-7¹), consistent with the resonance of the C=O group of phaeophytin b. Other spectral data were compared with those of Schwikkard et al.¹¹

The ¹H NMR of spectrum compound 2 contained signals characteristic of a substance containing a porphyrin nucleus, as indicated by the presence of three methyl groups attached to an aromatic ring [δ_H 3.75 (H-12¹), δ_H 3.34 (H-2¹), and δ_H 3.15 (H-7¹)], three olefinic hydrogen signals [δ_H 9.60 (H-10), δ_H 9.39 (H-5), and δ_H 8.64 (H-20)], and a vinyl group [δ_H 6.21 (H-3^2b), δ_H 6.29 (H-3^2c), and δ_H 7.87 (H-3¹)]. The APT spectrum allowed us to establish the structure as a six-membered cyclic anhydride, allegedly present between carbons C-15 and C-13 in the E ring, with two carbonyl signals at δ_C 159.32 (C-13¹) and δ_C 164.11 (C-13²).

The two- (²J_CH) and three-bond (³J_CH) HMBC two-dimensional heteronuclear correlation spectra showed a ³J correlation of the hydrogen signals at δ_H 6.29 (Hb-3^2c) and δ_H 6.21 (C-3^2b) with the carbon signal at δ_C 137.70 (C-3) and also of the H-8² signal at δ_H 1.63 with the C-8 carbon at δ_C 145.91. These correlations allowed us to unambiguously define positions 3 and 8 as the locations of the vinyl and ethyl groups, respectively. The ²J_CH correlation between the hydrogen atoms of the methyl groups and the sp² C were also established by the HMBC experiment: δ_H 3.34 (H-2¹) with δ_C 131.75 (C-2) and δ_H 3.15 (H-7¹) with δ_C 136.57 (C-7). The spectra also revealed correlations of the three bonds (³J_CH) between the hydrogen at δ_H 3.34 (H-2¹) and the carbons at δ_C 144.05 (C-1) and δ_C 137.70 (C-3), between the hydrogen at δ_H 3.15 (H-7¹) and the carbons at δ_C 156.22 (C-6) and δ_C 145.91 (C-8), and between the hydrogen at δ_H 3.75 (H-12¹) and the carbons at δ_C 131.46 (C-11) and δ_C 111.43 (C-13) (Figure 2).

The relative configurations at C-17 and C-18 were determined as trans on the basis of spatial interactions of the H-17 (δ_H 5.22) with the methyl δ_H 1.76 (H-18¹) observed through the NOESY spectrum.

The other signals were compared with literature data,^14,15 which allowed 2 to be identified as phaeophytin purpurin-18-phytyl ester.

Compounds 2, 4, 5, and 7 are substituted with a phytyl ester at C-17³ (Table 3) according to a comparison with the data reported by Melos et al.¹⁶ and by Tomaz.¹² These compounds were isolated for the first time from species of Turnera and Turneroideae, whereas compound 3 was first isolated from the genera Turnera.

The occurrence of pheophytins in plants has been well established to result from the decomposition of chlorophyll, and different types of solvents are known to affect the physicochemical and spectroscopic proprieties of these macrocyclic compounds.¹⁷

Electrochemical characterization of phaeophytin b

Several electrochemical experiments were conducted to determine the optimum conditions. Different organic solvents, electrolyte salts, potential ranges, electrode materials, and scan rates were studied until the voltammogram depicted in Figure 3 was obtained. During the forward (oxidative) scan, the cyclic voltammogram of phaeophytin b revealed two oxidation processes (at -0.67 and +1.55 V vs. Ag-QRE), and during the reverse (reductive) scans, we observed three reduction processes (+0.028, -0.42, and -0.92 V vs. Ag-QRE). A description of the species related to each process will require a more detailed investigation.

Figure 3. The electrochemical behavior of the systems were evaluated by cyclic voltammetry (CV). In CV, the current (µA) is measured as a function of potential (V vs. Ag-QRE). Electrochemical response E of phaeophytin b in an electrolytic solution (ACN containing 0.01 mol L^-1 LiClO₄) and at a scan rate of 50 mV s^-1

The reproducibility, reversibility, and stability of the electrochemical response of phaeophytin b allowed us to construct an energy diagram^18-20 by obtaining the ionization potential (IP), electron affinity (EA), and gap energy (Eg). The IP and EA determine the interfacial energy barrier between the electrode and the electroactive molecule and are usually used to optimize the performance of electronic devices. These parameters (IP, EA, and Eg) are typically estimated from the electrochemical potentials, as demonstrated by Micaroni et al.¹⁹ The high value obtained for the HOMO energy, shown in the schematic diagram of Figure 4, suggests that a positive potential must be applied for the oxidation of phaeophytin b at the electrode surface. This result agrees with previously reported results related to phthalocyanines.²⁰

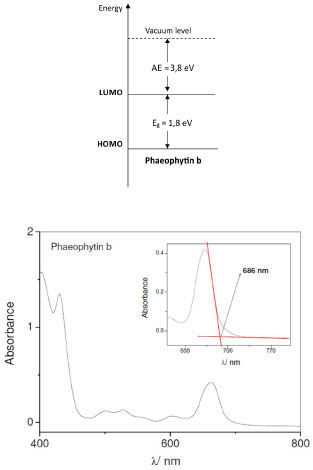

Figure 4. Proposed energy diagram for phaeophytin b

These results allow us to affirm that phaeophytin b, extracted from Turnera subulata Sm., possesses a macrocyclic ring structure very similar to those of phthalocyanines, which are materials used in the construction of optical-electronic devices used in photodynamic therapy and, especially in the development of electrochemical biosensors.^18-20

ACKNOWLEDGMENTS

We thank the Coordenação de Aperfeiçoamento do Ensino Superior (CAPES) for the fellowship to S. G. Brito-Filho and the Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) for partial financial support and the fellowships to M. F. V. Souza.

REFERENCES

1. Thulin, M.; Razafimandimbison, S. G.; Chafe, P.; Heidari, N.; Kool, A.; Shore, J. S.; Taxon 2012, 61, 308.

2. Souza, V. C.; Lorenzi, H.; Botânica sistemática: guia ilustrado para identificação das famílias de fanerógamas nativas e exóticas do Brasil, baseado em APG II.; 2ªed., Nova Odessa: São Paulo, 2008.

3. Barbosa, D. A.; Silva, K. N.; Agra, M. F.; Rev. Bras. Farmacogn. 2007, 17, 396.

4. Arletti, R.; Benelli, E.; Cavazzutti , E.;Scarpetta, G.; Bertolini, A.; Psychopharmacology 1999, 143, 19.

5. Antonio, M. A.; Sousa Brito, A. R. M.; J. Ethnopharmacol. 1998, 61, 215.

6. Zhao, J.; Dasmahapatra, A. K.; Khan, S. I.; Khan, I. A.; J. Ethnopharmacol. 2008, 120, 387.

7. Kojima, H.; Sato, N.; Hatano, A.; Ogura, H.; Phytochemistry 1990, 29, 2351.

8. Costa, D. A; Silva, D. A; Cavalcanti, A. C.; Medeiros, M. A. A.; Lima, J. T., Cavalcante, J. M. S; Silva, B. A.; Agra, M. F.; Souza, M. F. V.; Quim. Nova 2007, 30, 901.

9. Pizzolatti, M. G.; Cunha Jr., A.; Szpoganicz, B,; Sousa, E.; Braz-Filho, R.; Schripsema, J.; Quim. Nova 2003, 26, 466.

10. Silva, D. A.; Silva, T. M. S.; Lins, A. C. S.; Costa, D. A.; Cavalcante, J. M. S.; Matias, W. N.; Braz-filho, R.; Souza, M. F. V.; Quim. Nova 2006, 29, 1250.

11. Schwikkard, S. L.; Mulholland, D. A.; Hutchings, A.; Phytochemistry 1998, 49, 2391.

12. Tomaz, A. C. A.; Nogueira, R. B. S. S.; Pinto, D. S.; Agra, M. F.; Souza, M. F. V.; Cunha, E. V. L.; Rev. Bras. Farmacogn. 2008, 8, 47.

13. Jerz, G.; Arrey, T. N.; Wray, V. Du, Q.; Winterhalter, P.; Innovative Food Science & Emerging Tecnologies 2007, 8, 413.

14. Sakdarat, S.; Shuypron, A.; Ayudhya, T. D.; Waterman, P. G.; Karagianis, G.; Thai Journal of Phytopharmacy 2008, 51, 13.

15. Silva, T. M. S.; Camara, C. A.; Barbosa-Filho, J. M.; Giulietti, A. M.; Quim. Nova 2010, 33, 571.

16. Melos, J. L. R.; Silva, L. B.; Peres, M. T. L. P.; Mapeli, A. M.; Faccenda, O.; Anjos, H. H.; Torres, T. G.; Tiviroli, S. C.; Batista, A. L.; Almeida, F. G. N.; Flauzino, N. S.; Tibana, L. A.; Hess, S. C.; Honda, N. K.; Quim. Nova 2007, 30, 292.

17. Moreira, L. M.; Rodrigues, M. R.; Oliveira, H. P. M.; Lima, A.; Soares, R. S. S.; Batistela, V. R.; Gerola A. P.; Hioka, N.; Severino, D.; Baptista, M. S.; Machado, A. E. H.; Quim. Nova 2010, 33, 258.

18. Crespilho, F. N.; Zucolotto, V.; Siqueira, J. R., JR.; Carvalho, A. J. F.; Nart, F. C.; Oliveira Jr., O. N.; Int. J. Electrochem. Sci. 2006, 1, 151.

19. Micaroni, L.; Nart, F. C.;Hummelgen, I. A.; J. Solid State Electrochem. 2002, 7, 55.

20. Zampa, M. F.; Brito, A. C. F.; Kitagawa, I. L.; Constantino, C. J. L.; Oliveira Jr, O. N.; Cunha, H. N.; Zucolotto, V.; Santos Jr, J. R. C.; Biomacromolecules 2007, 8, 3408.
