Nota Técnica

Artifacts in the analysis and assessment of low-cost containers for sampling and storing greenhouse gases

Rafael C. AbruzziII; Beatriz BonettiII; Marçal J.R. PiresI,II,*; Berenice. A. DedavidII; Arthur K. BitencourtII

I. Escola de Ciências, Pontifícia Universidade Católica do Rio Grande do Sul, 90619-900 Porto Alegre - RS, Brasil
II. Escola Politécnica, Pontifícia Universidade Católica do Rio Grande do Sul, 90619-900 Porto Alegre - RS, Brasil

Recebido em: 13/07/2018
Aceito em: 01/10/2018
Publicado em: 22/10/2018

Endereço para correspondência

*e-mail: mpires@pucrs.br

RESUMO

The objectives of this study were twofold: to assess two chromatographic methods for the analysis of greenhouse gases (GHG) and carbon monoxide, and to propose and evaluate a low-cost and reusable alternative system for their sampling and storage, using 10 different container configurations (flasks and bags). To that end, standard samples containing the gases of interest (CO2, CH4 and CO) and different types of real samples were tested. Finally, procedures for the sampling, storage and analysis of CO2 and CH4 were evaluated and optimized. Two chromatographic methods were applied, using different analysis conditions and columns. Gas chromatography analysis of sample stability and container reusability demonstrated that borosilicate flasks with butyl rubber and PTFE/silicone septa are ideal for storing samples, allowing up to 5 successive sampling cycles with no significant loss of recovery. For larger volume samples, multilayer foil bags are the most stable for the compounds analyzed. The tests conducted with real and synthetic gas samples under optimized chromatography conditions using both methods indicated satisfactory performance for CO2 and CH4 quantification. However, CO analysis in the column with a polystyrene-divinylbenzene stationary phase (Method 1) produced an artifact due to the presence of oxygen in the samples, restricting its quantification.

Palavras-chave: greenhouse gases; analysis artifact; containers; gas sampling.

INTRODUCTION

Global atmospheric concentrations of primary greenhouse gases (GHG) such as carbon dioxide (CO2) and methane (CH4), produced by natural sources and by human activities involving fossil fuels and changes in land use, have increased significantly, with a sharp rise in the last decade.1 CO2 accounts for 77% of total GHG emissions (32 Gt CO2 in 2014), with the transport sector responsible for 23% of total fossil fuel-related emissions.2 Methane, 23 times more potent than CO2,1 is emitted during the production and transport of coal and is one of the main sources of GHG emissions, representing 9% of the total on CO2 equivalent basis.3 Carbon monoxide (CO) is also present in many emissions and even low levels (>9 ppm, CONAMA)4 can pose environmental and occupational hazards (39 ppm, NR155 and 50 ppm, MSHA)6. Given that CO is considered a contaminant that may interfere in the separation/control of GHG,7 concomitant monitoring with GHG is important.

Gas chromatography (GC) is the most widely used method to monitor GHG in ambient air.8 Among the different types of detectors used, the flame ionization detector (FID) stands out for its simplicity, low cost, easy use, response speed, high sensitivity, linearity and reliability.9 When combined with a methanator, FID allows direct quantification of methane, besides CO and CO2 after catalytic reduction to methane with excess hydrogen, in broad concentration ranges and high sensitivity.9,10 The complete chromatographic separation of the gases of interest (CO, CO2, CH4) from permanent gases such as O2 is often not evaluated, since oxygen is not expected to interfere with the FID detecttion. Among the few studies that report an artifact in this analysis, the most prominent is the article by Kaminski et al.11 on the determination of CO, CH4 and CO2 in refinery gas using a GC-FID coupled with a methanator. The authors found that CO concentration can be overestimated due to CO co-elution with O2 and its undesired production in the methanator. If the catalyzer becomes partially carbonized as a result of the high hydrocarbon and CO2 levels passing through it, carbon can react with O2 or CO2 to form CO. This artifact can cause significant errors in CO determination when using this technique, making it essential to carefully assess the column and method used for quantification. The interferences described above are particularly important and must be taken into account when analyzing traces of CO. This is the case of ambient air in coal mines, where high CH4 levels occur in association with low concentrations of CO2 and CO, among other gases.12,13

In addition to carefully determining chromatographic parameters, it is important to ensure the integrity of gaseous samples between collection and analysis. Despite the development of miniature portable gas chromatographs13 that enable in situ monitoring, most laboratories still use benchtop equipment. As such, it is essential to assess the performance of sampling systems during transport and storage of the samples.14 Notwithstanding the importance of these tests, few studies evaluate the analytical quality of the sampling systems used.14,15 The two most widely used systems for GHG collection are flasks and sampling bags. Borosilicate flasks or those made from polymeric material have punctured septa that enable the evacuation, collection and transfer of samples to the GC. They are easy to use, inexpensive and reusable, and the septa are replaced after a certain number of punctures. The quality of the vacuum and its maintenance until collection, the permeability of septa to analytes and any contaminants in the air as well as their reactivity with the surfaces of the flask are potential weaknesses that must be assessed when using this type of container. Sampling bags are made from a number of different materials, including polyvinyl fluoride, polytetrafluoroethylene, aluminum polyester, polyvinylidene chloride and fluorocarbons.16,17 They are available in different volumes, which may be useful in analyses that require a larger number of replicates. However, sample collection using these containers requires a sampling pump, making the process more complex and expensive. These containers also have septa through which the sample is transferred to the analysis system. The permeability and reactivity of the analytes to the largest free surface of the sampler is more critical in sampling bags than flasks. The difficulties of reuse and the relatively short storage time (24­48 h) should also be considered.18

This study has two primary objectives: i) to assess the impact of the artifact caused by O2 in the methanator coupled to FID detection of CO, and ii) to propose and evaluate a low-cost and reusable alternative system for CO2, CH4 and CO sampling and storage, using 10 different container configurations. To that end, we tested standard samples containing the gases of interest and potential contaminants, as well as different types of real samples. Finally, validated and optimized procedures for the sampling, storage and analysis of CO2 and CH4 were proposed and tested using different types of real samples.



MATERIAL AND METHODS

Preparing containers for GHG sampling and storage

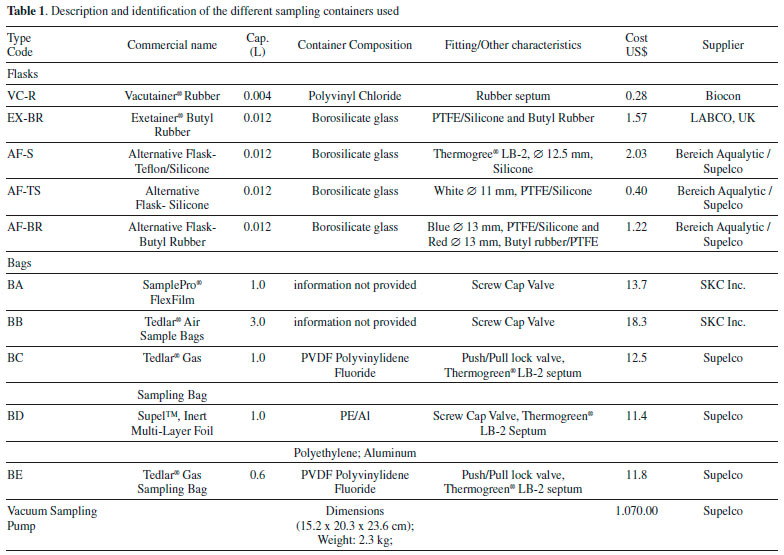

Commercial and alternative (homemade) containers were tested in order to ensure the integrity of samples collected in different environments, in addition to assessing the possible reuse of the materials to reduce operating costs. In storage tests of gas samples, the three different flask types described below (Table 1) were tested.





Alternative flasks (AF) are reused materials from DQO analysis kits (Borosilicate glass with plastic screw cap, Bereich Aqualytic, Germany) that are normally used once and then discarded as laboratory waste (volume of 12 mL). The flasks were previously washed with deionized water and detergent (Extran®) and dried in an oven (3 h at 100 °C) to prevent sample contamination. The plastic caps were punctured to allow the entry of needles through the septa, installed between the cap and the body of the borosilicate flask. Three septa configurations were tested: Silicone (AF-S, Termogreen® LB-2), PTFE/Silicone (AF-TS) and PTFE/Silicone + Butyl Rubber/PTFE (AF-BR). The septa were selected as a function of their availability, cost and compatibility with the analytes of interest, and used on chromatograph equipment (AF-S and AF-TS) as well as commercial containers (AF-S, AF-TS, and AF-BR). It is important to underscore that the double septa (PTFE/Silicone + Butyl Rubber/PTFE), were employed either as protective caps or an impermeable barrier to the gases of interest, similar to those used on Exetainer® commercial containers(LABCO, UK). Two commercial flasks (VC and EX) were used for comparison: one low cost (Table 1) polymer-based flask with a 4 mL capacity and rubber septum (VC-R, Vacutainer®), used to collect blood samples, and a 12 mL borosilicate flask (EX-BR, Exetainer®) with a combination of two septa (PTFE/Silicone and Butyl Rubber), used to collect gases. Vacutainer® flasks can be purchased or acquired from institutions that discard them after expiration. These flasks were submitted to the same cleaning procedure as the borosilicate containers. All the flasks were subsequently purged with nitrogen (N2, 99.9992% purity) and evacuated for 15 min using a pumping system (1x10-4 mbar, T-Station75, Edwards) no more than 24 h before collections. For the vacuum level tests, in line with Rochette and Bertrand,19 10 flasks (AF-BR) with double septa were randomly selected and individually weighed. Next, the flasks were evacuated and divided into pairs in order to monitor the vacuum level for up to ten days. Each day two flasks were punctured with needles connected to a water bath, whereby the difference in pressure caused them to fill with water. The flasks were weighed after filling to determine the amount introduced as a result of the pressure difference, thus indicating the effectiveness of the vacuum. These tests also made it possible to determine the number of times flasks could be reused without affecting collection efficiency.

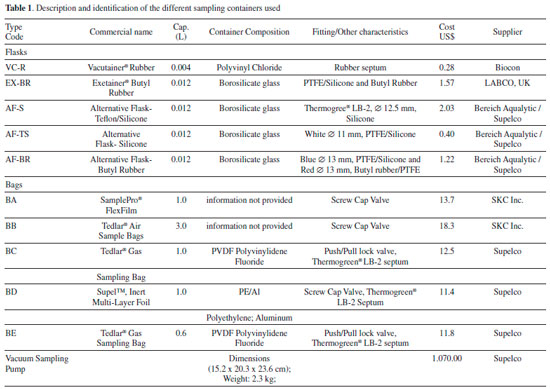

Similar tests were carried out with sampling bags, which have a larger volume capacity. The characteristics of each bag are shown in Table 1. Two of the bags were made from PVDF with a silicone septum (Thermogreen® LB-2) and capacities of 1.0 L (BC) and 0.6 L (BE).

Two others (denominated BA and BB) had the same type of collection valve (screw cap valve - SCV), but different volumes (1.0 and 3.0 L), and their main component was not indicated by the manufacturer The fifth (BD) was a multilayer PE/Al sampling bag with a Thermogreen® LB-2 septum. Before use, all the bags were purged several times with nitrogen, the same balance gas as that used for the standard gas mixtures.

Gas sampling procedures

After purging and evacuation, the containers were submitted to collection and storage tests (Figure 1S). These tests used different types of synthetic and real samples containing the gases of interest: a) synthetic samples obtained by standard gas mixture A1 (CO2 10,000 ppm, CO 5,000 ppm and CH4 50,000 ppm); b) soil emission samples (collected using chamber method in the garden of the School of Sciences - PUCRS); c) gas samples collected in the Conceição Tunnel (heavy vehicular traffic, Porto Alegre, Brazil); d) ambient air from underground coal mines (Criciúma, Brazil); e) exhaust fumes from a car (Ford Fiesta 2008, 1.0 L engine) filled with gasoline (blended with 27% ethanol anhydrous).

Two forms of standard gas mixture A1 were used in the tests, namely as a concentrated gas, and diluted ten times with nitrogen (N2; 99.9992%) using a dilution system built in the laboratory (Figure 1Sa). The concentration of diluted gas sample were checked by GC analysis, presenting an uncertainty <1% compared to the nominal concentration.

The sampling bags were filled gas samples with above atmospheric pressure up to the volume indicated by the supplier, directly from the gas line. Aliquots of 15 mL were transferred to the pre-evacuated 12 mL flasks and 4 mL aliquots to the 5 mL flasks, with a syringe with hypodermic needle, to create slightly higher pressure than atmospheric pressure inside the flask. The soil emission samples (Figure 1Sb) were collected in May 2015, 1 h after sampling chamber installation to allow sufficient stabilization of the system. Samples from the Conceição Tunnel were collected in August 2016 and those from the underground coal mine in October 2015. For sampling bags this procedure involves drawing the ambient air into the container through the vacuum obtained using a vacuum sampling system (Supelco, Figure 1Sd) preventing contamination of the sample, while the flasks were filled using a syringe (Figure 1Sc).

Stability tests during storage

The samples collected in different environments (underground coal mine, Conceição Tunnel and soil emission) and the synthetic sample were assessed to determine their stability in the containers, with storage time varying from 0 to 240 h. Sampling was conducted in triplicate at all the collection sites. In the soil vapor tests, the initial values attributed were those of the aliquots sampled directly from the system before collection in the flasks. For the Conceição Tunnel and coal mine samples, initial recovery was considered to be 100%, since the first analyses were performed 2 and 24 h after sampling, respectively. The results of these tests were expressed as recovery percentages (R%), calculated by dividing the average gas concentration (n=3) in time t by the average concentration (n=3) at the starting time (t0) multiplied by 100.

Gas chromatography analysis

The gas samples were identified and quantified using a PerkinElmer Clarus 580 gas chromatograph coupled with an FID (flame ionization detector) and a methanator positioned between the column and detector, containing Ni (Catalyst 9000 Methanizer, PerkinElmer). Helium was used as carrier gas (He; 99.9997%). Hydrogen (H2; 99.9992%, 45 mL min-1) was used in the methanator to reduce CO and CO2 to CH4. Some analyses were performed using a Shimadzu GC-2014 gas chromatograph coupled with an FID.20

Two columns (described in Table 1S) were tested for sample analysis, in order to determine the interference of the stationary phase and assess performance in identifying and quantifying the standard gas mixture and real GHG samples. The column used in method 1 was a 30-meter-long mega-bore Elite-Q Plot with an internal diameter of 0.53 mm and 20-µm-thick polystyrene-divinylbenzene stationary phase film. The oven temperature was set at 50 °C (isothermal method). Injector and detector temperatures were 200 and 350 °C, respectively, with a carrier gas (He) flow rate of 10 mL min-1. Total analysis time after optimization was 5 min. A 30-meter-long mega-bore Carboxen 1010 column was used in method 2, with a 0.53 mm internal diameter and carbon molecular sieve phase. The temperature ramp of the oven was 35 °C (6 min), at a rate of 20 °C min-1 up to 150 °C (2 min). The injector and detector temperatures were 200 and 400 °C, respectively, and helium was used as carrier gas (flow rate of 10 mL min-1). Total analysis time after optimization was 20 min. The samples were injected using a gastight microsyringe (500 µL).

Five gas reference standards were used (Table 2S) to calibrate the equipment and study the artifact of chromatography analysis. The calibration curves were constructed by diluting these gases using two 100 mL capsules of gas each. The capsules were fitted with silicone septa and their volumes calibrated. One was filled with standard N2 (A5), used for dilution, and the other with standard gas mixture A1 (CO 5,000 ppm, CO2 10,000 ppm and CH4 50,000 ppm) for high concentration curves or A2 (CO 503 ppm and CH4 504 ppm) for low concentration curves. A 10 mL gastight syringe was used to transfer gas from one capsule to another. Tests were conducted with standard gas mixture samples in order to assess methods 1 and 2 (Table 1S). Initial testing was performed using a mega-bore Elit-Q Plot column (method 1), recommended by the manufacturer for analyzing low concentrations of gases such as CO, CH4 and CO2. The gas flow rate (split) was 1:10 and the syringe used to inject samples into the gas chromatograph was modified. Since the needle was removable, the syringe was fitted with a valve to prevent contamination by outside air (Figure 1Se). In both methods, a volume of 300 µL was injected for each sample, with the exception of the calibration curves, which used different volumes for analysis (50 to 300 µL).

Tests to determine the presence of an artifact in GC-FID analysis with a methanator

Concentrated and diluted (100x) samples of standard gas mixture A1, which contains the three gases of interest, were injected to determine the presence of an artifact in analyses. Next, samples of standard gas A3 (synthetic air; 21% O2 and 79% N2) and different volumes of A4 (O2) were injected to assess the presence of oxygen in CO determination. Tests were also carried out with A5 (N2) since it was used as balance gas and did not contain CO2, making it possible to evaluate possible sample contamination by CO2 from the ambient air during injection. These tests were conducted for the two methods in both the Carbonex 1010 (method 2) and Elit-Q Plot (method 1), recommended for the analysis of these gases in ambient air. To assess the behavior of real samples with higher and varied CO and CO2 concentrations, tests were conducted using car exhaust fumes in both methods. The car in question runs on gasoline containing anhydrous ethanol (27%). Samples were taken at different times according to acceleration intensity, using flasks (15 mL) filled with the aid of a syringe.



RESULTS AND DISCUSSION

Validation of the analysis methods

Analysis of standard gas mixture A1 in the Elite-Q Plot column (method 1) exhibited good separation and symmetrical peaks (Figure 1a). The figure shows three peaks with retention times were 1.706 min, 1.793 min and 2.092 min for CO, CH4 and CO2, respectively, and the peaks are proportional to the known concentrations of these compounds. Analysis of ambient air samples from the city of Porto Alegre (Brazil) using the same method showed significantly higher CO levels (~40 ppm) than the average reported by monitoring stations for urban areas (0.4 ppm).4

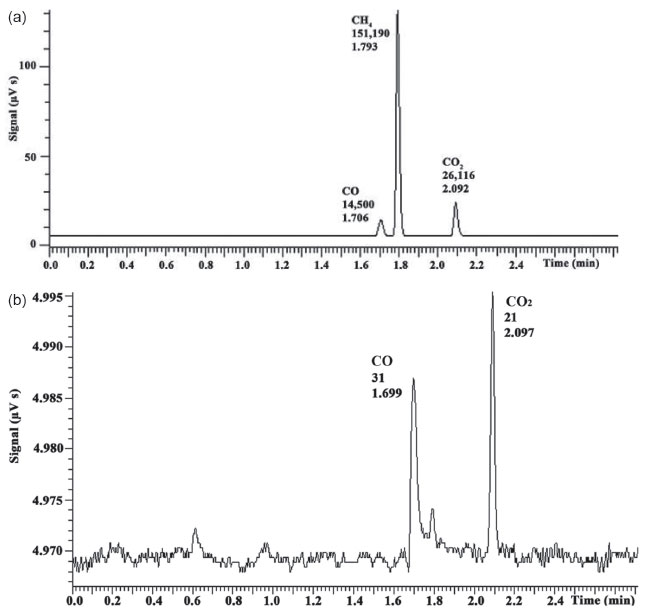

Figure 1. Chromatograms of standard gas mixtures analyzed by Method 1 for: (a) standard A1, and (b) standard A3. Peak areas (µV.s) and retention times (min) are shown within the figure for each peak



As previously indicated, this artifact was reported by Kaminski et al.11 As such, samples of A3 (synthetic air) were injected to evaluate the behavior of this potential artifact. The results (Figure 1b) indicate unexpected ghost peaks in analyses of these gases using an FID detector. This behavior may affect accurate determination of the gases of interest, such as CO, whose retention time is similar to that of ghost peak with retention time of 1.699 min.

A second ghost peak (retention time 2.097 min) was also identified, with the same retention time as CO2. These peaks were unexpected since the FID is only sensitive to the presence of combustible gases. Additional analyses were performed to better understand the behavior of these two peaks. Samples of A5 (N2) and A4 (O2) were injected, varying the volumes. It is important to underscore that, depending on how the syringe is used, contamination by ambient air can occur when the samples are transferred from the flasks to the gas chromatograph. As such, the syringe used was fitted with a valve (Figure 1Se), which makes it possible to effectively control contamination and determine whether the peaks are the result of this process or can be attributed to other factors. When the adapted syringe was used, the values of second peak (attributed to CO2, Figure 2a) decreased significantly in analyses with A5, meaning the variation may be associated with this mechanism.

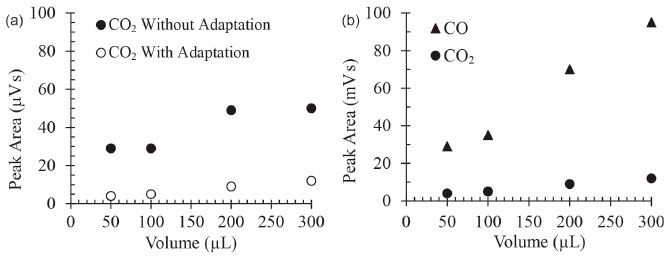

Figure 2. Signals for different amounts of CO and CO2 analyzed by method 1 for: (a) CO2 analyzed using standard A5, without and with valve adaptation of the syringe, and (b) CO and CO2 analyzed using the A4 standard



It is important to emphasize that CO2 levels in the ambient air may vary according to laboratory activities, since the gas is used in other studies. The presence of this peak in analyses using injected samples of high purity gases (He and N2) that do not produce FID signals is also significant, corroborating its possible association with this type of contamination.

Analyses with A4 (O2) produced a considerable increase in peak 1 according to the volume injected, particularly when compared to the results of tests related to second ghost peak (Figure 2b). In light of this behavior, this artifact may be related to the injection mechanism, as discussed by Van Rensburg; Botha and Rohwer,21 or analytical problems associated with the methanator and/or FID. According to Kaminski et al.11 CO co-elution with peak 1 is generally more significant in ambient air samples due to the high O2 concentration. Carbon deposited on the surface of the methanation catalyst in the presence of O2 or CO2 can be converted into CO, increasing the FID signal for this gas. These interferences are particularly important and must be taken into account when low levels of CO are analyzed. This is because the retention times (Figures 1a and b) for CO and first ghost peaks are similar.

A comparison of the areas of the ghost peaks and those of the CO and CO2 peaks for the diluted (100x) A1 sample (injected under the same condition, 300 µL) demonstrates that the artefacts contributed to quantification of the compounds under study. Thus, according to the interference values for each gas with the samples, the value of first ghost peaks could more significantly compromise CO quantification than CO2 quantification. It is important to note that the signals observed for CO2 in the real, urban atmosphere and coal mine samples tested were far higher (>800 µV.s) than the average interference value (11 µV s), suggesting that this artifact does not compromise quantification of this gas in these samples.

The capillary column was changed in order to assess the behavior of these gases under different chromatographic conditions (carbon molecular sieve phase, method 2). Figure 3a shows the chromatogram resulting from the injection of standard gas mixture A1. As occurred in method 1, separate peaks were observed for the gases of interest, each with different retention times: 4.182 min (CO), 8.262 min (CH4) and 10.887 min (CO2). The areas of these peaks are proportional to the concentrations of these gases in the standard sample (Table 2S).

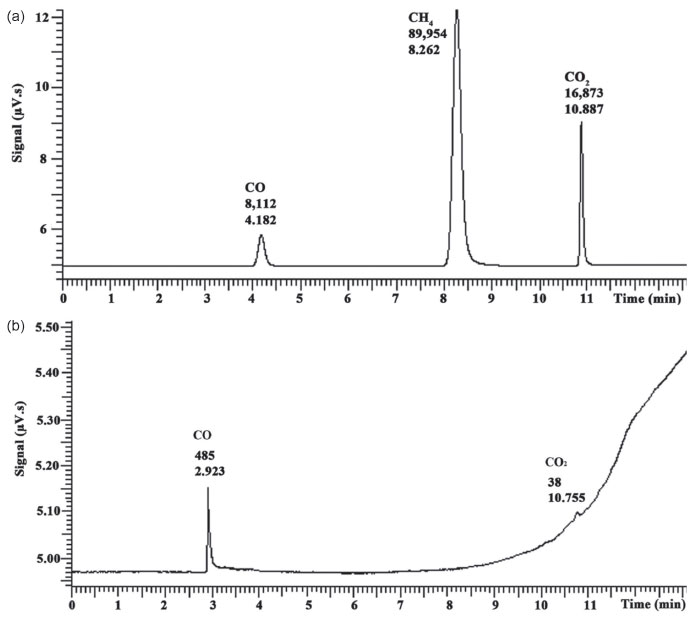

Figure 3. Chromatogram of the standard gas mixtures analyzed by Method 2 for: (a) standard A1 and (b) standard A3



Tests were also carried out with other standard gas mixtures (A3; synthetic air) in order to evaluate the behavior of the ghost peaks using method 2. As shown in Figure 3b, the retention times of first ghost peaks (2.923 min) and CO (4.182 min, Figure 3a) differ, indicating good separation when analyzed using this method. With respect to the presence of second ghost peaks (similar retention time to CO2, Figures 3a and b), due to the previously mentioned contamination problems, additional analyses were performed injecting A5 (N2) with and without fitting a valve on the syringe (Figures 1Se). According to Figure 2S, adaptation of the syringe confirmed that the emergence of this peak is related to contamination by outside air, since the ghost peaks were not observed after the injection mechanism was modified. Considering that analyses performed in method 2 did not compromise the quantification of samples containing CO, the limit of detection (LOD) was determined in this method. The tests indicated that the LOD is 13 ppm, below the established value for workplaces (39 ppm, NR-155) such as underground coal mines.

Analyses were carried out for both methods (1 and 2) using car exhaust fume samples to assess the behavior of ambient air samples in the presence of CO and CO2.

A significant variation was observed in CO and CO2 levels, as shown in Figure 4. This is due to the combustion process that takes place in the vehicle, since samples were collected at different times during engine acceleration. The results obtained (Figure 4a) demonstrated good correlation and agreement (slope 1.0016, R2 = 0.94) between methods 1 and 2 for CO2 concentrations across a wide range (400-12,500 ppm). More significant differences (slope 0.6997) were recorded for CO (20-2,500 ppm, Figure 4b), particularly for samples with high levels (≥ 1,000 ppm) of this gas, despite the good correlation (R2 = 0.96) between the data, suggesting systematic errors.

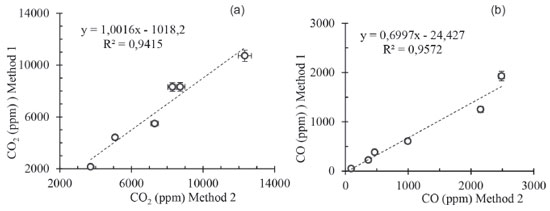

Figure 4. Analysis of car exhaust fume sample using methods 1 and 2 for: (a) CO2 concentrations and (b) CO concentrations



This result confirms the influence of the artifact caused by the co-elution and simultaneous detection of CO and the compound(s), likely generated in undesirable reactions between the oxygen in the sample and carbon accumulated in the methanator catalyst, detectable in the FID.

Method 1 is not recommended for CO analysis in ambient air samples that contain oxygen due to the previously described artifact. When CO quantification is required, under these conditions, this is only possible at concentration above 185 ppm.

In these conditions interference of the artifact is three times the value of the noise, similar to the overall accuracy of the method. In the absence of oxygen in the sample, the LOD for CO in this method is 5 ppm. At low CO2 levels, the injection system should be carefully assessed, given that the emergence of second peak is directly associated with this contamination mechanism.

Method 2 is recommended for the simultaneous analysis of all the gases studied here, since no interference was observed in the quantification of the analytes of interest. However, the LOD for CO in this method is 13 ppm, which may restrict its use in applications that not require greater sensitivity. It is important to note that the main advantage of method 1 is the short analysis time (5 min). Additionally, the fact that it is an isothermal method allows direct linking between analyses, thereby improving productivity of the analyses. Method 2 exhibits a longer analysis time (13 min) and the fact that it uses a temperature gradient means additional equilibrium time is needed between the two injections (+ 10 min). The longer analysis time increases the final costs of this method.

Assessment of GHG sampling and storage systems

Gas sampling in coal mines involves a number of logistical difficulties (low visibility, high temperatures and humidity, and high risk). Given that the chromatographic analyses were conducted in the laboratory far from the collection sites, the samples had to be stored, making it important to ensure their integrity between collection and analysis. Additionally, containers must be easy to use, inexpensive and reusable. In light of these restrictions, 10 different types of containers (Table 1), subdivided into flasks and sampling bags, were tested.

Vacuum level tests on the flasks indicated that 99% of the level was maintained for up to 10 days when compared to flasks tested on the same day. To that end, the initial weight of the flasks filled with water for tests on the same day and after 10 days was compared against the final weight. In regard to flask reusability, vacuum level testing indicated 95 and 90% maintenance of the vacuum for a third and fifth sampling cycle, respectively, using the same septa. Rochete and Bertrand19 also used water to evaluate the vacuum level in pre-evacuated commercial borosilicate flasks (Extainers®, LABCO, UK) with double septa and recorded 98% recovery in 135 days for flasks with new septa and 96% for septa used seven times in 63 days.

Synthetic sample

Initial tests were performed with a synthetic sample prepared by diluting a calibration standard (A1, Table 2S) in nitrogen (A5). Five different sampling flask configurations were tested, one made from polymeric material (VC-R), one from commercial borosilicate (EX-BR), and the others from reused borosilicate (AF) with three different septum combinations (TS, S and BR), referred to as alternative flasks in this study. Figure 5 shows the storage results for the synthetic sample up to 120/240 h, expressed as recovery percentages.

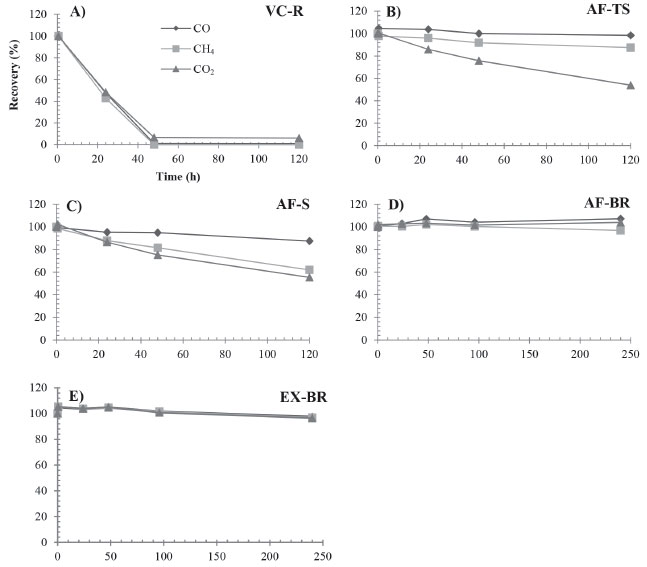

Figure 5. Storage results for CO, CO2 and CH4 in a synthetic sample, with different flasks



It can be observed that the VC-R flasks with a rubber septum are not reliable for the collection/storage of the three gases studied, showing losses >90% in the first 24 h of storage. Holland et al.22 reported the leakage, contamination and adsorption of CO2, N2O and CH4 samples in the Vacutainers® assessed. The AF-TS flasks displayed stability in the first 48 h for CO (100%) and CH4 (92%), with lower recovery for CO2 (76%). At longer time intervals, losses reached 54% for CO2. The AF-S flasks with a silicone septum and their AF-TS counterparts exhibited similar CO2 recovery; however, it was lower for the remaining gases (CO 87% and CH4 62%) at 120 h.

AF-BR flasks with butyl rubber septa showed the best results for all the gases studied, maintaining 100% of the methane samples for up to 96 h. Over longer periods (240 h), recovery was

107% for CO and 104% for CO2. These results are similar to those recorded for the commercial flasks (Exetainers®, EX-BR), indicating that butyl rubber is less permeable than the other materials. These findings corroborate those of Lange, Allaire and Van Bochove,23 who found that borosilicate flasks with butyl rubber septa (chlorobutyl/50) were ideal for storing gas samples (CO2, N2O and CH4), even over extended periods.

It is important to note that values slightly higher than 100% can occur and are related to the precision of the methods used, which are rarely less than 95%. Since recovery calculations include two concentrations, the values carry errors associated with these two determinations. Glatzel and Well14 studied Exetainers® flasks for their suitability in collecting and storing N2O (synthetic sample) and found no significant losses, even when storage pressure and temperature were varied over a 10-day period. The authors also observed better storage results when collections were performed with narrower needles. In this case, the number of punctures assessed did not significantly affect gas concentration in the flasks.

Figure 6 shows the recovery percentages of the gases (diluted standard A1), under study when stored in the five sampling bags tested (Table 1). The best performance was recorded for the BD bag (SupelTM, inert multilayer foil), since recovery percentages were 100% after 120 h for the three gases analyzed. Bags BA and BB exhibited good recovery in the first 48 h, after which the samples were compromised, with a significant increase in recovery percentages (118% to 213%). This unexpected behavior could indicate contamination of the bags or selective permeation of air (O2/N2) through the septum. Bags BC and BE displayed unsatisfactory performance for CH4, with losses of 18 and 75% after 120 h, respectively, indicating that the samples were significantly compromised.

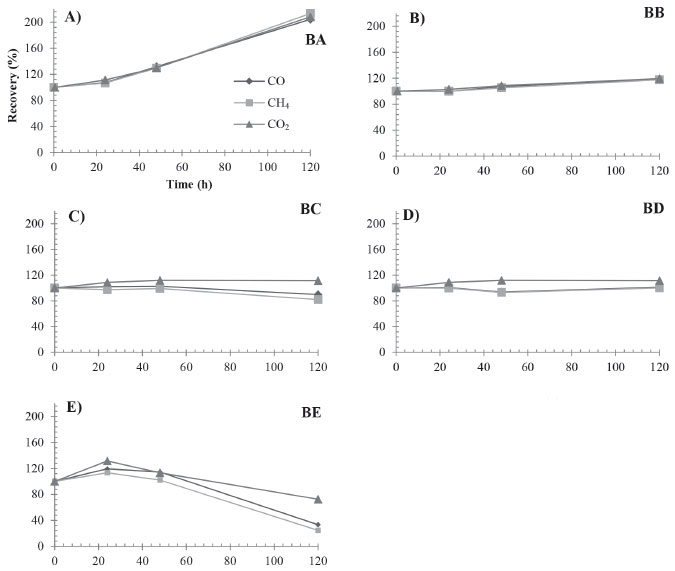

Figure 6. Storage results for CO, CO2 and CH4 in a synthetic sample, with different sampling bags



Real samples

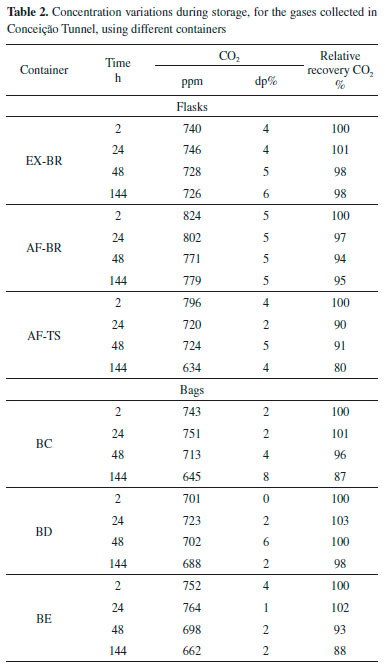

A real sample characteristic of polluted urban air was collected inside a tunnel with heavy traffic (Conceição Tunnel, Porto Alegre, Brazil). Samples with CO2 concentrations between 700 and 820 ppm were used in these tests. The results of CO2 recovery as a function of storage time in flasks and bags are shown in Table 2.





AF-BR alternative flasks and EX-BR commercial flasks showed good stability, maintaining CO2 recovery of 95% and 98%, respectively, for up to 144 h. By contrast, flask AF-TS exhibited a significant decline in recovery (90%) after 24 h, declining further to 80% at 144 h. Spotl24 and Glatzel and Well14 also reported good results in studies on CO2 and N2O storage in Exetainers®. The authors analyzed the effect of temperature and pressure during storage and concluded they did not influence gas retention performance within the range studied. The slight variation in gas concentration was attributed to punctures made in the septa during analyte insertion and analysis. Among the sampling bags tested, BD showed the best performance, with recovery of 98% after 144 h of storage.

Bags BC and BE exhibited acceptable recovery of 96 and 93%, respectively, after 48 h. However, over longer periods storage in these bags results in more significant analyte reduction (87-88%). Since they are made from the same material, the difference in concentration variations observed for these two containers is believed to be related to their valves and the gas volume inside them. According to Mochalski et al.,25 these factors compromise performance and retention ability. Another factor that may explain this difference is the possible interaction between the sample and the component material of the container.26 The superior performance of BD is likely related to its low permeability to the analyte, given that it is made from multiple layers of polymer/aluminum. Kim et al.15 compares different types of bags, noting that the multilayered aluminum foil container retained gas better than the other materials tested. Over longer storage times, bag BD and flasks AF-BR and EX-BR displayed similar performance.

The soil emission sample was selected for its high CO2 levels compared to those found in ambient air and its high humidity. Similar conditions are expected in the ambient air of coal mines. In these tests to type of flasks were used (AF-S and AF-BR) and in the Figure 3S the obtained results are presented. AF-S flasks showed similar recovery values to those recorded for CO2 in the real sample (56% in 120 h), demonstrating possible permeability of the silicone septum to CO2. By contrast, recovery values for CO2 in AF-BR flasks remained high (98%) even after 96 h, indication good stability and low permeability of the butyl rubber septum to the gas analyzed. The results obtained suggest that the septa used on these flasks play a prominent role. Hedley, Sagar and Tate27 studied the performance of Exetainers® in the collection and storage of CH4, CO2 and N2O soil emission samples. The authors found that changes in concentration for the three gases were <5%, even after 90 h of storage at 20 °C. The alternative flasks tested in the present study showed similar performance to that reported in the literature. The results obtained with the synthetic and real samples demonstrated that flasks AF-S and VC-R and bags BA and BB are unsuitable for storing the gases of interest. As such, these types of containers were not used in the subsequent tests described below.

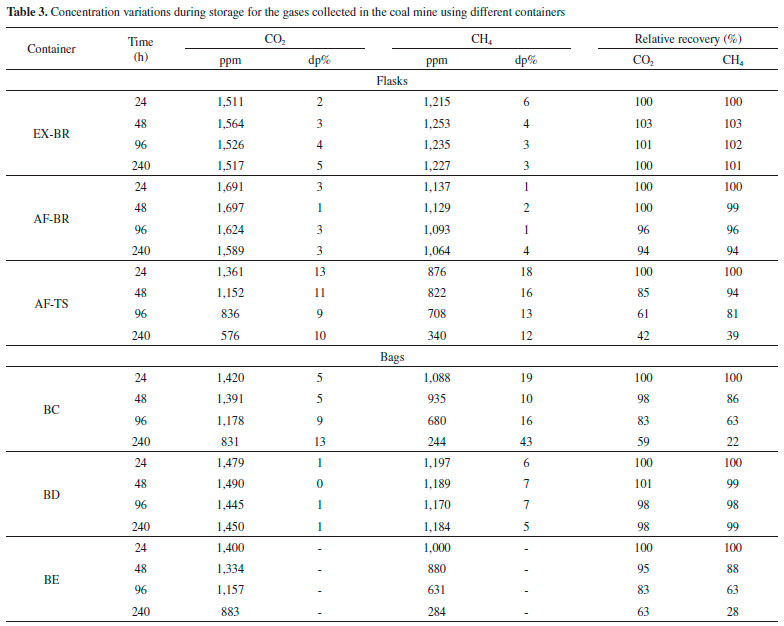

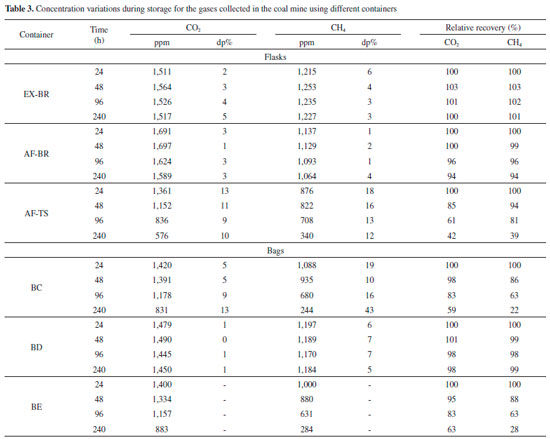

Finally, tests were conducted using air samples collected in an underground coal mine.13 The recovery results for CH4 and CO2 for the six containers studied are shown in Table 3. Initial concentrations of the samples used were 1,200 ppm CH4 and 1,500 ppm CO2, analyzed 24 h after collection in the mine and transportation to the laboratory. In these tests, this value was applied as the initial concentration in order to calculate recovery.





The results obtained were similar to those recorded in tests using the other samples studied. The EX-BR flasks showed excellent performance (100-101%) for both gases for the entire storage time tested (240 h). AF-BR flasks exhibited good recovery (96%) after 96 h for both gases, with performance declining (94%) at the end of the test. By contrast, at 48 h, performance was mediocre for AF-TS, with more significant losses for CO2 (85%) than CH4 (94%). Lower recovery percentages (CO2 42% and CH4 39%) were observed at the end of the test. The poor performance of this container for CO2 was previously identified in tests on the urban ambient air sample (Table 2). It should be noted that CH4 losses appear less marked than CO2 losses for most the flasks. This behavior can be explained by the different permeabilities of the septa to the gases analyzed. The flasks with the highest CO2 recovery percentages were those equipped with butyl rubber septa, which is less permeable to this gas when compared to PTFE and silicone.28

The BD bags demonstrated high recovery for both gases (98-99%) until test completion. Performance for BC and BE was similar and unsatisfactory, with recovery of 83% for CO2 and 63% for CH4 after 96 h of storage. More significant reductions were observed at the end of the test, particularly for CH4 (22-28%). Mochalski et al.29 reported that variations in recovery percentages in the bags are associated with the polymers used in their manufacture, among other factors. The aging of these materials can compromise their structure. Cleaning and preparing the containers can also affect their performance. The performance of the sampling bags depends on their component material and useful life. The manufacturers guarantee sample retention and integrity when stored in this type of bag for up to 48 h.18 Ahn, Deep and Kim16 recommend using polyester aluminum to store samples of biogenic volatile organic compounds present in ambient air.

It is important to underscore that the bags are sold for single use; however, they are reused in most studies, with several articles analyzing cleaning methods and the number of collection/cleaning cycles they can be submitted to.29,30 These usage restrictions, and particularly the maximum storage time, compromise the use of sampling bags in studies conducted in more remote areas. This is the case for the coal mines in the present study, which are 400 km from the laboratory where analyses were conducted. Other important aspects to be considered when selecting containers are their ease of use and cost. Flasks are simpler and easier to use than sampling bags owing to their smaller volume and sampling procedure. Whereas flasks require only a plastic syringe for sampling, a relatively heavy (2.3 kg) and costly (US$ 1,070.00) vacuum sampling pump is needed for the bags (Table 1). Based on the overall assessment of the results obtained, flasks AF-BR and EX-BR displayed superior performance for the two gases studied when compared to the remaining flasks and the sampling bags. Flask AF-BR, produced in the laboratory using recycle materials, was less expensive (US$ 1.22) and more widely available than EX-BR (US$1.57), which has to be imported and is made by a single manufacturer (Table 1). Among the sampling bags studied, BD (multilayered PE/Al) exhibited good performance, but its use is limited due to cost and logistics.



CONCLUSIONS

An artifact in chromatographic analysis, due to CO co-elution with a ghost peak (P1) and its interference in the FID signal, demanded a more detailed assessment of the standard method used (method 1, polystyrene-divinylbenzene phase column) and the proposal of an alternative analysis method (method 2, carbon molecular sieve phase column). It was concluded that method 1 is not suitable for CO analysis in samples with low levels of this gas due to interference by oxygen. Method 2 is recommended for the simultaneous analysis of the gases of interest, since there is no interference in the quantification of these analytes. However, the high LOD for CO (13 ppm) and longer analysis time (20 min) when compared to method 1 (5 min) could restrict its use in applications do not requiring greater sensitivity and rapidity of the analysis. The results obtained in the present study clearly demonstrate the need for a detailed assessment of the analytical methods, especially for samples containing oxygen and low to medium levels of CO, as occurs in the ambient air in underground coal mines.

An alternative collection system for the sampling and storage of greenhouse gases was evaluated against different commercial containers. The AF-BR system, consisting of a reusable borosilicate flask with two septa (PTFE/Silicone + Butyl rubber/PTFE), ensured the stability (recovery >95%) of the gases of interest for up to 96 h. This performance was similar to the commercial flask, which is 25% more expensive and less easily available. Flask AF-BR offers several advantages over traditional containers in terms of cost (90% less), ease of use and reusability (up to 5 evacuation/sampling/analysis cycles without changing septa). For samples with higher volume, it is recommended to use the BD (PE / Al Multi-Layer Foil) sample bag, since it presented better performance than the other bags tested.
