A renewable catalyst for a renewable chemical: gram-scale conversion of furfural to furfuryl alcohol by the carrot (Daucus carota)

Alvaro T. Omori*; Marina G. Capeletto; Daniela Y. Yamamoto; Ronaldo E. de Oliveira Filho

Centro de Ciências Naturais e Humanas, Universidade Federal do ABC, 09210-580 Santo Andre - SP, Brasil

Recebido em 14/06/2019
Aceito em 27/08/2019
Publicado na web em 03/12/2019

RESUMO

The bioconversion of furfural to furfuryl alcohol using only carrot bits in water at room temperature and ambient pressure is presented. This reaction led to the bioreduction of furfural with 99% conversion and 99% selectivity to an alcohol. This simple and "fully" green process may represent an alternative to classic hydrogenation processes. Also, without work-up procedure, we demonstrate the aqueous solution can be submitted to microwave irradiation to obtain 4-hydroxy-2-cyclopentenone.

Palavras-chave: furans; biomass; biocatalysis and sustainable process.

INTRODUCTION

Currently, chemicals derived from biomass are of great interest in academia.1 Considering the environmental issues caused by the over-consumption of fossil fuels, the development of new processes to produce high value-added chemicals in biorefineries is of great value.2 Furans derived from dehydration of C5 and C6 carbohydrates, for example, have been considered the "new" top biobased products from biorefinery carbohydrates by the US Department of Energy.3 According to the authors, catalytic systems for reactions in aqueous solution are needed for this type of platform (furans). Therefore, furfural (1) is being considered one of the most promising renewable chemicals derived from lignocellulosic biomass. The number of publications related to the synthesis and use of furfural is increasing exponentially.4 In addition, the corresponding furfuryl alcohol (2) is considered to be the most important chemical derived from 1 and has a broad spectrum of applications in the chemical industry. The industrial processes used to convert 1 to 2 are already established but still depend on Cu catalysts, which require high temperatures and the use of hazardous and explosive hydrogen. On the other hand, biocatalytic reduction of furfural remains incipient; consequently, scalability of biocatalytic reduction is a difficult task to overcome. Except for the fermentative formation of furfuryl alcohol in a high concentration of furfural (35 g L-1) using Saccharomyces cerevisiae 354,5 biotransformation of 1 using whole-cell systems has a limited scope. The use of aseptic conditions in addition to the acquisition of specific strains and the time and growth media utilized in the growing step make the process unfeasible for the reduction of a large-scale commodity chemical. For example, the recent one-pot chemoenzymatic synthesis of furfuryl alcohol from xylose involves whole-cell bioreduction of furfural.6 Although the reduction occurs at a high concentration (200 mmol L-1), it requires temperature control, a specific pH buffer, glucose as an additive and the prior growth of a specific strain of Escherichia coli. Additionally, the reaction volume tested was only 10 mL.

To circumvent the microbiological issues but still use enzymes as natural catalysts, we present a very simple and environmentally friendly alternative to obtain furfuryl alcohol by bioreduction mediated by carrots.



EXPERIMENTAL

Materials

Furfural was kindly provided by Professor Mirela Sairre (UFABC/Brazil) and was distilled prior to use. Other chemical reagents were of analytical grade (ethanol, glucose and ethyl acetate from Synth®, Diadema, Brazil; furfuryl alcohol from Sigma Aldrich, USA). Carrots (Daucus carota ssp sativus var. sativus) were purchased at a local market (Carrefour, Brazil).

Bioreduction reaction

All experiments were conducted on an orbital shaker (IKA® KS 130 Control) at room temperature.

The general procedure was as follows: distilled water, 5 mm carrot slices and furfural were added to an Erlenmeyer flask (125 mL to 1 L capacity) and were stirred at 180 rpm for two or three days. Aliquots (1 mL) were collected into a 1.5 mL tube every 24 hours and were submitted for gas chromatography (GC) analysis. For small-scale reactions, the experiments were usually conducted with 5 g of carrot, 50 mL of distilled water and 100 µL of furfural in a 125 mL Erlenmeyer flask. For the gram-scale reactions, we used 120 g of carrot, 200 mL of water and 1 g of furfural in a 1 L Erlenmeyer flask.

GC analyses

Each aliquot was extracted with 0.5 mL of ethyl acetate, and the organic phase was submitted to GC-FID analysis. All chromatograms were recorded on a 450-GC (Bruker) with a Chirasil-Dex CB-β-cyclodextrin 25 m × 0.25 mm column using H2 as the carrier gas. The chromatographic conditions were as follows: injector temperature: 250 °C; front inlet pressure: 68.9 kPa; detector temperature: 270 °C; and split ratio: 1:20. The oven temperature program included an initial temperature of 60 °C for 2 minutes, temperature rate of 10 °C/min and final temperature of 175 °C. Commercial samples of furfural and furfuryl alcohol were also analyzed.

The retention time for furfural (1) was 5.00 min.

The retention time for furfuryl alcohol (2) was 7.27 min.

Extraction and product analysis

After completion of the bioreduction reaction, the suspension was filtered and the carrot root was washed two times with ethyl acetate. The filtrates were then extracted three times with ethyl acetate in a separatory funnel. The organic phases were combined, dried with Na2SO4, filtered and evaporated under reduced pressure. The final product was analyzed directly by 1H and 13C NMR without further purification.

The isolated yield was calculated as follows:

Furfuryl alcohol yield (%) = (mols of 2 / mols of 1) × 100

NMR analysis

1H NMR and 13C NMR were performed on a Varian NMR (500 MHz) from Federal University of ABC and were reported in parts per million (ppm) on the δ scale relative to tetramethylsilane (TMS) as an internal standard.

The NMR data are in agreement with literature.7 Furfuryl alcohol (2): 1H NMR (500 MHz, CDCl3) δ 2.69 (s, 1 H, OH1), 4.56 (s, 2 H, CH22), 6.27 (dd, J = 3.3, 0.8 Hz, 1 H, CH4), 6.33 (dd, J = 3.3, 1.9 Hz, 1 H, CH5), 7.39 (dd, J = 1.9, 0.8 Hz, 1 H, CH6). 13C NMR (125 MHz, CDCl3) δ 57.2 (C2), 107.7 (C4), 110.4 (C5), 142.5 (C6), 145.0 (C3).

Piancatelli rearrangement

After completion of a small-scale bioreduction of 1 monitored TLC or GC, 6 mL aliquot was transferred to a 15 mL ACE pressure tube. The reaction mixture was irradiated with microwave at 250 W for 20 min (limit temperature 140 °C). After completion the mixture was transferred to a 50 mL falcon tube, and freeze-dried, yielding 106 mg (72 % isolated yield) of 3 as a yellow oil.

The NMR data are in agreement with literature.8 4-hydroxy-2-cyclopentenone 3: 1H NMR (500 MHz, CDCl3) δ 2.28 (dd, 1H, CH2), 2.62 (s, 1 H, OH), 2.78 (dd, 1H, CH2), 5.05 (m, 1H, CH-COH), 6.22 (dd, 1H, C=CH), 7.57 (dd, 1H, C=CH), 7.39 (dd, J = 1.9, 0.8 Hz, 1 H, CH). 13C NMR (125 MHz, CDCl3) δ 44.25 (C5), 70.38 (C4), 135.11 (C2), 163.29 (C3), 206.72 (C1).



RESULTS AND DISCUSSION

Optimization for the bioreduction of 1 to 2

Several parameters were investigated to optimize the reaction conditions. The reagent/catalyst/solvent ratio, carrot source, influence of the functional carbonyl group (aldehyde vs. ketone) and other factors were investigated (Figure 1).




Figure 1. Scheme of the bioreduction of furfural by carrots



Reagent / catalyst / solvent ratio

Based on the method to reduce aryl ketones,9 the initial attempts were performed in Erlenmeyer flasks under orbital stirring. The carrot was cut into slices (approximately 0.5 cm each). To avoid any further interference, only one carrot was cut and distributed in all reactions #1 to #14 (Table 1). The influence of the substrate amount was investigated in reactions #1 to #4, while the influence of the amount of the catalyst was investigated in reactions #5 to #8, and the influence of the of the solvent volume was investigated in reactions #9 and #10. For the last four reactions (#11 to #14), different additives (isopropanol, glucose, sucrose and tryptone) were introduced to evaluate their possible influence on the reaction performance. The results are summarized in Table 1.

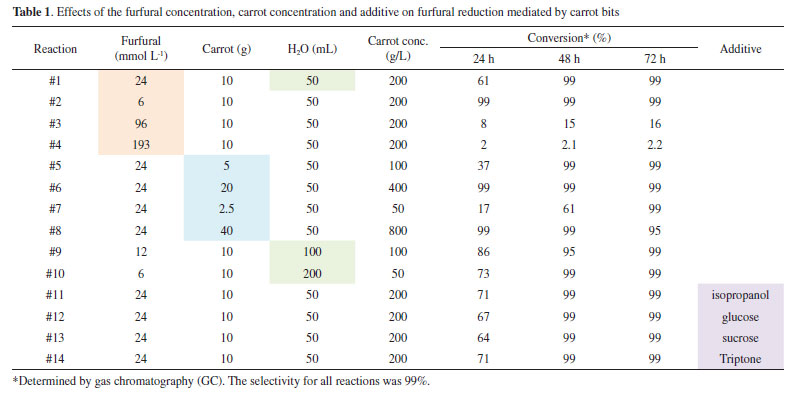

The results shown in Table 1 indicate that the conversion was high after 48 hours of reaction. Except for reactions #3 and #4, the conversions were low, probably because of the high concentration of the substrate (> 96 mmol L-1).

We also observed that all of the reactions in this study showed a high selectivity to furfuryl alcohol (99% selectivity by GC). In contrast to other chemocatalytic methods,10 overreduction of the furan ring did not occur in our reactions. No byproducts were detected when furfural was reacted with carrots in water.

In the case of reactions #1 to #4, we observed that the carrot tolerated furfural concentrations of up to 24 mmol L-1 only if the biocatalyst concentration was fixed at 200 g L-1. When the amount of carrot was varied (reactions #5 to #8), we observed that the reaction was completed in less than 24 h with a catalyst concentration greater than 400 g L-1. In the case of reaction #8, we observed an oxidation of the alcohol after 48h of reaction in a lesser extent. This opposite trend can be justified by the high amount of the catalyst.

Since the reaction with 100 g L-1 of carrot (reaction #5) also led to the same conversion after 48 h, we considered the reagent/catalyst/solvent ratio of 100 µL of furfural/5 g of carrot/50 mL of H2O to be the most promising in this first approach.

Higher amounts of water were also evaluated. In reactions #9 and #10, we observed that less concentrated reactions had no influence on the reaction rate because the conversion reached 99% after 48 h of reaction.

The possible influence of additives was also investigated. The addition of isopropanol and glucose could help cofactor (NAD+/NADH) recycling during the reaction. However, the reaction proceeded in the same manner as that with only water, carrot and substrate. Analogously, sucrose and tryptone did not affect the reaction. Thus, to minimize costs, further experiments were performed without additives.

For further experiments, we fixed the reaction time to 48 h. Reactions lasting more than 3 days showed little degradation of the catalyst, and extraction of the corresponding alcohol was observed to be more difficult.

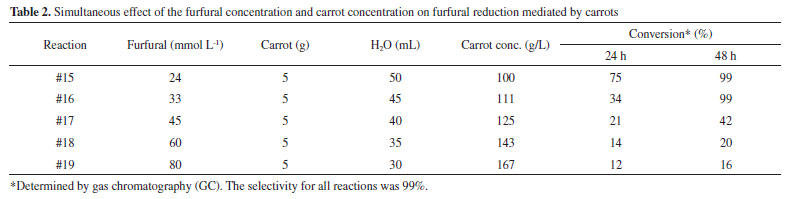

The results obtained thus far suggest a detailed study with simultaneous variation of the concentrations of the substrate and catalyst. Table 2 below shows the conversion values when the substrate and carrot concentrations were varied.





Based on the conversion values after 48 h, the results presented in Table 2 suggest that the optimum concentration of furfural for reduction was between 33 and 45 mmol L-1 (reactions #15 and #16). Higher concentrations (60 mmol L-1 or more) of furfural led to low conversion, even after 48 h of reaction. The carrot concentration, on the other hand, did not vary sufficiently in regard to its influence on the reaction. We believe that the concentration of carrots (up to 167 g L-1) investigated in this part weakly affected the conversion to the desired alcohol. Therefore, we investigated the effect of higher concentrations of carrot by performing higher scale reactions as described below.

Gram-scale reaction

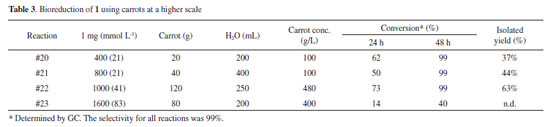

Next, two reactions were conducted using high quantities of furfural (400 mg and 800 mg) and the optimized conditions obtained from small-scale reactions (100 µL of furfural/5 g of carrot /50 mL of H2O) (Table 3). In these reactions, the conversion values reached 99% after 48 h, as expected.





The crude product of both reactions was extracted and analyzed by NMR 1H and 13C (see the supporting information). Although the crude product indicated the production of furfuryl alcohol at high purity, the isolated yields were low. We believe that the low yields were related to the high solubility of furfuryl alcohol in water. Another reason to the low yield can be attributed to a possible polymerization of the furfuryl alcohol. However, the polymerization is commonly observed in the presence of acid catalysts11 or in high temperatures12

Therefore, tests to improve the yield were performed. The use of an ultrasonic bath or the addition of a saturated solution of NaCl in the liquid-liquid extraction, for example, did not lead to an increase of the isolated yield. Instead, we only observed a crucial dependence on the amount of ethyl acetate. Extracting three times with ethyl acetate yielded higher amounts of product than when the reaction was extracted only once.

To validate the dependence of the concentrations of furfural and carrot, one gram of furfural was reacted with the highest amount of carrot that could be added without compromising orbital stirring. Thus, with 41 mmol L-1 furfural and 480 g L-1 of carrot, we obtained the corresponding alcohol at a reasonable isolated yield (63 %). This result demonstrates that this reaction can be performed at the gram scale. However, when we used twice the concentration of furfural, the reaction led to only 40% conversion.

Reproducibility

Another advantage of this presented methodology is that the carrot is available worldwide.13 To demonstrate the reproducibility of our results, we tested the reduction of furfural with four different carrots obtained from four different markets. In addition to the carrot used in the reactions presented in Table 1, we used four different carrots for comparison. Figure 2 below shows the conversion performance for each carrot tested.




Figure 2. Conversion performance for each carrot tested. Experimental conditions: 100 mg of 1, 5 g of carrot, 50 mL of H2O. Conversion determined by GC



As expected, all of the carrots tested led to furfuryl alcohol, with a high conversion after 48 h of reaction. There is evidence for endophytic microorganisms being the source of the carrot's activity.14,15 However, practically, the plant root is the more likely candidate as the source of activity due to simplicity and not requiring the use of microbiological techniques. Nevertheless, the main limitation is associated with the large biocatalyst/substrate ratio (B/S). Catalytically, it is quite controversial that the reaction has a larger mass of catalyst than substrate. Indeed, even if we consider the high water content of vegetables, the dry weight of the catalyst remains high compared with that of the substrate. However, the catalyst is biodegradable and therefore easily disposable. Thus, we consider this limitation to have a smaller impact on the environment than the use of inorganic catalysts.

Function group effect (ketone/aldehyde)

The results obtained so far indicate that furfural is more reactive in contact with carrots than other substrates (ketones and aldehydes) already reacted by this protocol. To evaluate this, a carrot was equally distributed in two reactions containing furfural and 2-furyl methyl ketone (1a) (Figure 3).

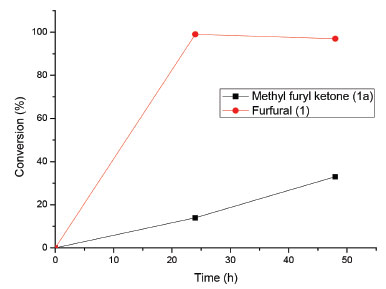

Figure 3. Reactions containing furfural and 2-furyl methyl ketone. Experimental conditions: 21 mmol L-1 of substrate, 5 g of carrot, 50 mL of H2O. Conversion determined by GC



Figure 3 clearly shows that the reaction with aldehyde 1 performs better than that with the corresponding ketone 1a. This result can be explained either by the difference in reactivity between aldehydes and ketones, by their solubility difference in water, or by both. In our view, it appears that the solubility of the substrate in water plays a more critical role than the reactivity difference between the functional groups (ketone vs aldehyde). In a previous study, reduction of N,N-dimethylamino benzaldehyde using carrots was relatively slow, and the data corroborated the low solubility of this compound in water (0.3 g L-1).16 However, furfural, another aldehyde, performs better mainly because of its high solubility (> 79 g L-1 at 20 ºC)17 in water compared with that of the corresponding ketone 1a, which is less soluble (39 g L-1). A similar behavior of a higher reactivity of aldehydes than ketones was observed using different plants as biocatalysts.18

The solubility issue of the substrate was explored recently.19,20 However, furfural is industrially produced at a large scale; thus, we believe it is best to keep the reaction system as simple as possible (water and carrot only).

Piancatelli rearrangement

One of the several applications of furfuryl alcohol is the conversion to the 4-hydroxy-2-cyclopentenone 3 by Piancatelli rearrangement.21 Reiser and coworkers developed a catalyst-free protocol by heating an aqueous solution of furfuryl alcohol (aprox. 0.25 mol/L) at 220 ºC and 15.5 bar under microwave irradiation.22 Considering the present sustainable reduction of furfural in water, we investigated if the rearrangement can be conducted directly from the bioreduction reaction.

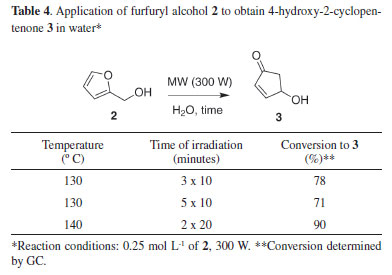

Initial attempts to achieve such subcritical conditions using commercial furfuryl alcohol in water (0.25 mol L-1) failed in our hands. To our surprise, however, we observed the formation of the desired cyclopentenone even at lower temperatures. The results are summarized in Table 4.





Since the concentration of the bioreduction reaction is lower than 0.25 mol L-1 of furfural, the Piancatelli rearrangement of furfuryl alcohol could be achieved faster. To validate the feasibility of this hypothesis, in a single run, 250 mL of aqueous solution of furfural (0.043 mol L-1) was reacted with carrot bits. After confirming the formation of 2 by GC, a 6 mL aliquot was transferred to an ACE pressure tube without work-up. After 20 min of microwave irradiation at 140 ºC (250 W) we observed 91% conversion to the desired cyclopentenone 3. Removal of the 6 mL of water by lyophilization resulted in 1.08 mmol of 3 (72% isolated yield). This result suggests a feasible and safe protocol to obtain 4-hydroxy-2-cyclopentenone in aqueous solution directly from furfural.



CONCLUSIONS

We presented a simple method to selectively obtain furfuryl alcohol from furfural after 48 h by using only water and carrot bits. This reaction is conducted at room temperature without additives or reducing agents and can be set up at the gram scale. The relatively high solubility of furfural in water contributes to the reaction; however, the high solubility of the corresponding alcohol adversely affects the isolated yield. Although the reaction requires very high amounts of carrot, we believe that this barrier does not outweigh the advantages of using this vegetable. The carrot is available worldwide, abundant, cheap, and renewable and has high selectivity. Additionally, after the completion of the reaction, the aqueous solution of the product can be submitted directly to microwave irradiation leading to 4-hydroxy-2-cyclopentenone in high conversion.



SUPPLEMENTARY MATERIAL

NMR 1H and 13C and GC chromatograms for furfuryl alcohol are available from http://quimicanova.sbq.org.br, free of charge.



ACKNOWLEDGMENT

We express our gratitude to FAPESP (grant ID is 2017/18007-2) for financial support. We also would like to thank Dr. Mirela Ines Sairre for providing furfural.



REFERENCES

1. Mika, L.T.; Cséfalvay, E.; Németh, A; Chem. Rev. 2018, 118, 505.

2. De Bhowmick, G.; Sarmah, A. K.; Sen, R.; Bioresour. Technol. 2018, 247, 1144.

3. Bozell, J. J.; Petersen, G. R.; Green Chem. 2010, 12, 539.

4. Mariscal, R.; Maireles-Torres, P.; Ojeda, M.; Sádaba, I.; Granados, M. L.; Energy Environ. Sci. 2016, 9, 1144.

5. Diaz de Villegas, M. E.; Villa, P.; Guerra, M.; Rodriguez, E.; Redondo, D.; Martinez, A.; Acta Biotechnol. 1992, 12, 351.

6. He, Y. C.; Jiang, C. X.; Jiang, J. W.; Di, J. H.; Liu, F.; Ding, Y.; Qing, Q.; Ma, C. L.; Bioresour. Technol. 2017, 238, 698.

7. Ambre, R.; Yu, C.; Mane, S. B.; Yao, C.; Hung, C.; Tetrahedron 2011, 67, 4680.

8. Becker, N.; Carreira, E. M.; Org. Lett. 2007, 9, 3857.

9. Comasseto, J. V.; Omori, A. T.; Porto, A. L. M.; Andrade, L. H.; Tetrahedron Lett. 2004, 45, 473.

10. De, S.; Saha, B.; Luque, R.; Bioresour. Technol. 2015, 178, 108.

11. Gandini, A.; Belgacem, M. N.; Prog. Polym. Sci. 1997, 22, 1203.

12. Kong, L.; Guan, H.; Wang, X.; ACS Sustainable Chem. Eng. 2018, 6, 3349.

13. Blanchard, N.; van de Weghe, P.; Org. Biomol. Chem. 2006, 4, 2348.

14. Rodríguez, P.; Barton, M.; Aldabalde, V.; Onetto, S.; Panizza, P.; Menéndez, P.; Gonzalez, D.; Rodríguez, S.; J. Mol. Catal. B: Enzym. 2007, 49, 8.

15. Kuila, T.; Bose, S.; Khanra, P.; Mishra, A. K.; Kim, N. H.; Lee, J. H.; Carbon 2012, 50, 914.

16. Omori, A. T.; Portas, V. B.; Oliveira, C. S.; Quim. Nova 2012, 35, 435.

17. Stephenson, R. M.; J. Chem. Eng. Data 1993, 38, 630.

18. Suárez-Franco, G.; Hernández-Quiroz, T.; Navarro-Ocaña, A.; Oliart-Ros, R. M.; Valerio-Alfaro, G.; Biotechnol. Bioprocess Eng. 2010, 15, 441.

19. Costa, M. R.; Omori, A. T.; Food Technol Biotechnol. 2017, 55, 231.

20. Xiong, W.; Wang, X.; Kong, L.; Biotechnol Lett. 2015, 37, 1703.

21. Verrier, C.; Moebs-Sanchez, S.; Queneau, Y.; Popowycz, F.; Org. Biomol. Chem. 2018, 16, 676.

22. Ulbrich, K.; Kreitmeier, P.; Reiser, O.; Synlett 2010, 13, 2037.
