INTRODUCTION

In the last years, the research of new efficient and cost-effective methods for the decontamination of waters has led to develop of several advanced oxidation processes (AOPs). Among the AOPs, electrochemical methods like direct electrochemical oxidation^1,2 (DEO, the organic compounds interact with the anode surface) and indirect electrochemical oxidation^3-5 (IEO, oxidation occurs via the reaction with electro-generated oxidant species) have received a lot of attention, due to their advantageous characteristics.^1,2 Depending on the electrolysis conditions, different oxidant species can be electrochemically produced. For example using boron doped diamond electrode (BDDE) ^•OH can be efficiently formed during water discharge (Eq. 1),^1,5 but others oxidants can be generated, depending on the supporting electrolyte composition. In this way, hydrogen peroxide (H₂O₂) can be produced when dissolved molecular oxygen (O₂) is reduced^1,6 or by the oxidation of water (Eq. 2) or combination of hydroxyl radicals (Eq. 3).^1,7

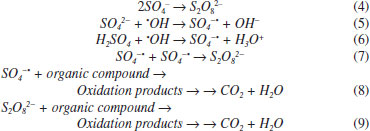

Persulfates are formed by combination of sulfate radicals, produced by direct electron transfer (Eq. 4) or reaction of sulfate anion with hydroxyl radical (Eq. 5 to 7).⁸ Sulfate radicals also can favor the organic compounds degradation as shown in Eq. 8.⁹ Both species acts as strong oxidants for removing efficiently the organic matter in solution. When the solutions contain sulfates, persulfates (S₂O₈^2-) play an important role during the electrochemical degradation of organic pollutants (Eq. 9).^2,5

Peroxide, persulphate and hydroxyl radical can all be considered green oxidants because the products of their electronic transfer are harmless and can be part of a catalytic cycle. Thanks to these characteristics, its use is very attractive in the treatment of contaminated effluents.¹⁰ The electrogeneration of these oxidants by using silicon-supported/BDD electrode (Si/BBD) as anode has been confirmed.^5,9 Then, in consideration of the fact that, the electrode contains an electrocatalytic conductive diamond layer, it was of our interest to study the effect of other material support for the BDD on the oxidants produced by the electrolysis. In this way, the change from Si/BDD to Nb/BDD should not involve dramatic changes in the results if the main degradation reaction pathways follow homogeneous reactions generated by the electrogenated oxidants, on the other hand if direct electrolysis occurs the results should be very different. Nevertheless, both anodes have been successfully used to degrade organic compounds (e.g.: pharmaceuticals, dyes, petroleum, pesticides and herbicides,^1-5,11-15 no attempts have been reported yet regarding the use of different electrolytes to promote the electrogeneration of different oxidants at Nb/BDD anode. Thus, this investigation describes the comparative study of two supporting electrolytes (H₂SO₄ and HClO₄) to determine its role during the electrochemical oxidation of short-chain carboxylic acids acetic acid (AA), oxalic acid (OA) and formic acid (FA) at Nb/BDD anode under different current densities. This strategy let to understand the formation and role of the strong oxidant species electrogenerated in the experimental conditions. The short-chain carboxylic acids were chosen as model compounds, because they have been identified as intermediates or final products of in various AOPs, since they are more difficult to oxidize than the initial contaminants.^4,16 This characteristic make of them interesting compounds to determine the limitation of the AOPs as well as useful to the determination of reactions mechanisms.^18-20

EXPERIMENTAL

Materials

The short-chain carboxylic acids (AA, OA and FA) were purchased from J. T. Baker and used without further purification. Distilled water was used in all solutions and experiments. The synthetic solutions (FA 0.18 mol L^-1, AA 0.18 mol L^-1 and OA 0.18 mol L^-1) were prepared using 0.25 mol L^-1 HClO₄ and H₂SO₄ as supporting electrolytes.

Electrochemical measurements

Linear polarization analyses were performed at room temperature (25 °C) with a Metrohm AUTOLAB potentiostat model PGSTAT302N. The three-electrode cell was constituted by a Ag/AgCl (KCl 3 mol L^-1) as reference electrode, Pt wire as the counter electrode and Nb/BDD (Metakem, Germany) as working electrode with an exposed geometric area of 1 cm². Quasi-steady polarization curves were carried out at a scan rate of 50 mV s^-1 and with a 2.44 mV step potential, by using the aforementioned BDD working electrode in 0.25 mol L^-1 HClO₄ and H₂SO₄ as supporting electrolytes.

Large scale electrolysis system

Bulk EO were carried out in a single compartment undivided cell (batch mode) containing 0.5 L of solution under constant stirring and galvanostatic conditions with a MINIPA MPL-3305M power supply. Nb/BDD film (Metakem, Germany) was used as anode, while titanium was employed as cathode. The electrodes were plates with a geometric area of about 18 cm² and were placed parallel each other with an inter-electrode gap of 1.2 cm. The experiments were performed at 25 °C (thermostatic bath), using a current density (j) range of 30, 60, 90 and 120 mA cm^-2 during 240 min.

Analytical methods

Chemical oxygen demand (COD) and total organic carbon (TOC): The short-chain carboxylic acids concentration elimination was monitored by COD which was determined by pre-COD dosage tubes and these were then heated in a Hanna Instruments HI 839800 thermo reactor for 2 h at 150 °C. Shimadzu TOC-V CPH was used to quantify TOC in samples.

Hydroxyl radicals determination: Hydroxyl radicals were detected by the bleaching of N,N-dimethyl-4-nitrosoaniline (RNO). The original yellow solution was decolorized through reaction between RNO and ^•OH forming a colorless adduct.²¹ The bleaching of the 2 ×10^-5 mol L^-1 RNO solution in 0.25 mol L^-1 H₂SO₄ and in 0.25 mol L^-1 HClO₄ was followed by using the spectrophotometer previously described reading the absorbance at 350 nm.

Hydrogen peroxide determination: The spectrophotometric methodology using ammonium metavanadate proposed by Nogueira et al.²² was used for detection and quantification of H₂O₂ formed in solution. Also, some parameters described by Oliveira et al.²³ were used.

Persulfates determination: The spectrophotometric methodology proposed by Liang et al.²⁴ was used for persulfate quantification.

Efficiency parameters

Energy consumption: Energetic requirements of the each experiment were estimated (in kWh m⁻³) means of the expression:⁴

where t is the time of electrolysis (h), Ec (V) and I (A) are the average cell voltage and the electrolysis current, respectively; and V_s is the sample volume (m³).

Total current efficiency (TCE): Percentage of TCE for electrochemical oxidations of the carboxylic was estimated by using the initial and final COD values, following relationship:⁴

where I is the current (A), F the Faraday constant (96,487 C mol⁻¹), V is the electrolyte volume (dm³), 8 is the oxygen equivalent mass (g eq.⁻¹) and t is the electrolysis time, allowing for a global determination of the overall efficiency of the process.

Mineralization current efficiency (MCE): This parameter was calculated using the relationship established by Brillas et al.^3,4

were n is the number of electrons consumed in the oxidation of the compound (2 for formic and oxalic and 8 for acetic acid), F is the Faraday constant (=96487 C mol^-1), V_s is the solution volume (L), Δ(TOC)_exp is the experimental TOC decay (mg L^-1), 4.32 x 10⁷ is a conversion factor (=3600 s h^-1 12000 mg of C mol^-1), m is the number of carbon atoms in the molecule (1 for FA and 2 for AA and OA), I is the applied current (A) and t is the time (h). The reactions of oxidation of formic, acetic and oxalic acids, respectively, are shown in Eq. 13 - 15:²⁵

RESULTS AND DISCUSSION

Supporting electrolyte effect into the electrogenerated of oxidants species (hydroxyl radicals, hydrogen peroxide and persulfate)

UV-visible measurements were used for detecting hydroxyl radicals formed at Nb/BDD electrode during water anodic discharge. The indirect technique for the detection of low concentrations of hydroxyl radicals is carried out with a spin trapping (RNO) compound in order to produce a more stable radical (spin adduct). The used compound for this task is particularly advantageous and selective, because under these conditions of concentration and pH it is electrochemically inactive at positive potentials, and the addition reaction occurs at a very high rate constant (1.3×10¹⁰ L mol⁻¹s⁻¹).^20,21 Figure 1 shows the adsorption spectrum of aqueous RNO solution (2×10^-5 mol L^-1) during galvanostatic electrolysis with Nb/BDD anode by applying 60 mA cm^-2, in 0.25 mol L^-1 H₂SO₄ (Figure 1a) and HClO₄ (Figure 1b) as supporting electrolytes.

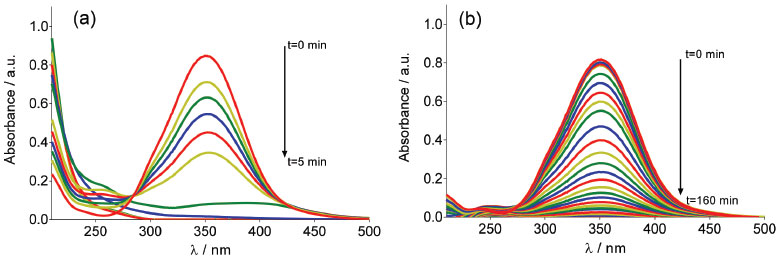

Figure 1. Adsorption spectra of aqueous RNO solution (2×10^-5 mol L^-1) obtained at different electrolysis-time intervals under galvanostatic conditions, in (a) 0.25 mol L^-1 H₂SO₄ and (b) 0.25 mol L^-1 HClO₄ as supporting electrolytes, at Nb/BDD anode by applying 60 mA cm^-2 at 25 °C

A decrease in absorbance at 350 nm during electrolysis is observed in both medium. Although the results showed that, there was accumulation of ^•OH radicals at the Nb/BDD anode surface, when H₂SO₄ was used as supporting electrolyte RNO absorbance decreases faster (5 min), whereas with HClO₄ medium requires more almost 3 hrs. This effect indicates that, when electrolysis is carried out in H₂SO₄, the adduct formed by reaction between RNO and ^•OH radicals is formed faster and can be in first instance be rationalized as a major production of ^•OH species. However, as was mentioned in the introduction, in a solution containing with sulfates the electrogeneration of persulfate ions is feasible.

Taking into consideration this fact, the persulfate formation is attained in parallel, promoting the degradation of RNO under these experimental conditions, and consequently, accelerating the disappearance of RNO absorption peak. In fact, the UV-vis spectrum showed the existence of intermediates that absorb irradiation approximately at 190 and 250 nm. Meanwhile, at HClO₄, the results clearly demonstrated that, only ^•OH radicals are produced at BDD surface, which react with RNO to form adduct species, avoiding their degradation. In fact, no absorption bands were achieved at wavelengths below 280 nm.

Similar behavior was achieved at all j values, indicating that significant concentrations of ^•OH radicals are electrochemically generated in HClO₄, but their concentration depends on the j used (Figure 2). In fact, higher j provoked a more rapid disappearance of the RNO adsorption, confirming that in these conditions the production of ^•OH radicals was favored. These results are in agreement with the proposed model by Comninellis in which the BDD electrocatalytic material is considered a nonactive anode due to the significant production of ^•OH radicals, physically adsorbed, that favor the complete combustion of organic pollutants.^1,5,7,21

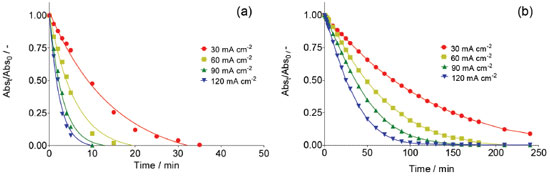

Figure 2. Normalized absorbance decay of RNO solution as consequence of hydroxyl radicals electrogeneration at Nb/BDD anode by applying 30, 60, 90 and 120 mA cm^-2 during electrolysis in (a) 0.25 mol L^-1 H₂SO₄ and (b) 0.25 mol L^-1 HClO₄ at 25 °C

The formation of other oxidants than ^•OH at the BDD surface during the electrolysis is feasible, for example H₂O₂ and S₂O₈^2- (Eq. 1-9).^25,26 For this reason, its quantification is necessary to have a better picture of the oxidizing agents' role during carboxylic acids degradation. Figure 3 shows the evolution of H₂O₂ concentration as a function of electrolysis time for BDD electrodes by applying different j in H₂SO₄ (Figure 3a) and HClO₄ (Figure 3b) at 25°C. This figure shows clearly that the production of H₂O₂ is significantly higher at HClO₄ medium than that formed at H₂SO₄. It also increases when an increase on the j is attained at HClO₄.

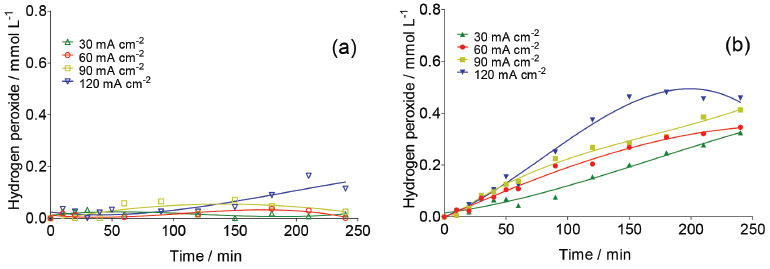

Figure 3. Concentration of electrogenerated H₂O₂ at Nb/BDD surface in (a) 0.25 mol L^-1 H₂SO₄ and (b) 0.25 mol L^-1 HClO₄ by applying 30, 60, 90 and 120 mA cm^-2 at 25 °C

This behavior is can be attributed to the electrochemical formation of free hydroxyl radicals at BDD electrode surface because, the higher concentration ^•OH radicals the higher the recombination between them to form H₂O₂ (Eq. 3). However, it is also expected that after its formation, hydrogen peroxide in solution can be decomposed through reaction at the anode surface (Eq. 16) or cathode surface (Eq. 17); therefore its concentration reaches a plateau.

Concentrations of H₂O₂ are lower at Nb/BDD than those reported in the literature for Si/BDD,⁷ suggesting that the electrochemical activity for hydrogen peroxide formation is minor.

In H₂SO₄ medium, the main reactions at water discharge should be the formation of persulfate (Eqs. 4 and 7) via oxidation of sulfate ions in solution^7,27 and the oxygen evolution (Eq. 18). In contrast, using HClO₄ the main reaction at water discharge should be oxygen evolution (Eq. with concomitant production of ^•OH radicals, due to water oxidation (Equations 1 and 15 respectively).

To evaluate the amount of persulfate formed at water oxidation in H₂SO₄, electrolyzes at different current density were performed. Concentration of these species was determined in the anolyte during electrolyzes by ISCO method.²⁴ Figure 4 shows the influence of current density on the S₂O₈²⁻ concentration. As can be observed, an increase on the S₂O₈^2- concentration is achieved when j increases from 30 to 90 mA cm^-2. However, when higher j is applied, a decrease on the persulfate concentration is attained. This behavior is due to the faster oxygen evolution at higher j, decreasing the electrosynthesis of persulfate.

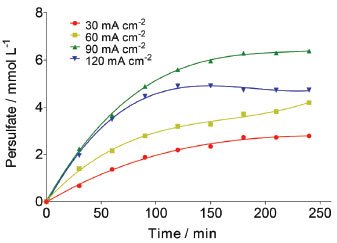

Figure 4. Electrogenerated S₂O₈²⁻ at BDD anode by applying 30, 60, 90 and 120 mA cm^-2 during electrolysis in 0.25 mol L^-1 H₂SO₄ at 25 °C

In order to gain insight about these important reactions in both supporting electrolytes, potentiodynamic measurements of the water discharge were carried out. Figure 5 shows linear polarization curves and the corresponding Tafel plots of Nb/BDD electrode obtained in HClO₄ and H₂SO₄ at a scan rate of 50 mV s⁻¹. Current-potential curves are almost identical, although the reactions that take place in HClO₄ and H₂SO₄ media are different. The value of Tafel slope is almost the same for both media (ca. 0.81 V decade^-1), being 3.5-folds higher than Si/BDD.⁷ Therefore, silicon supported BDD is oxidizes faster water and the difference probably is due to the different semimetal/semiconductor properties between both diamond films.

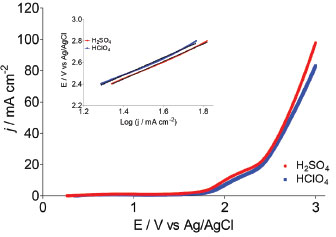

Figure 5. Polarization curves and Tafel analysis for Nb/BDD electrode in 0.25 mol L^-1 H₂SO₄ and 0.25 mol L^-1 HClO₄ at 50 mV s^-1 at 25°C

Taken into consideration the data obtained in potentiodynamic measurements can be concluded that even if the main reaction products are different (O₂ and ^•OH radicals in HClO₄ and O₂ and S₂O₈²⁻ in H₂SO₄); the same electrochemical reaction is generating them in both electrolytes. Then, this indicates that the first step during water discharge on Nb/BDD electrode is the O₂ evolution (Eq. 16 or 18) with simultaneous generation of hydroxyl radicals (Eq. 1). After, and depending on the supporting electrolyte, the electrogenerated hydroxyl radicals can react to produce persulfate in case of H₂SO₄ electrolyte (Eq. 5 and 6), or can generate H₂O₂ by the reaction of hydroxyl radicals in case of HClO₄ electrolyte (Eq. 3). In both cases, recalcitrant organic matter degradation follows indirect electrochemical oxidation pathways that include oxidation with ^•OH and the other electrogenerated strong oxidants. It is important to remark that, in the case of H₂SO₄ medium, the co-existence of direct oxidation mechanism cannot be feasible due to the significant production of persulfate and ^•OH radicals at diamond surface.

COD decay

In order to determine the efficiency of the EO on very difficult to oxidize (recalcitrant) short-chain carboxylic acids (AA, OA and FA) and to understand the participation of the strong oxidants produced at Nb/BDD surface in both supporting electrolytes, bulk electrolyzes were carried out. COD and TOC were monitored during 240 min of electrolysis at different j values. Figure 6 shows the COD decays for the studied carboxylic acids as a function of time at the Nb/BDD anode. The results demonstrate that COD removal is strongly influenced by the j as well as the carboxylic acid added to the electrolyte. In the case of AA in H₂SO₄ media, no significant COD removals were achieved at 30 and 60 mA cm⁻² (26% of COD removal was achieved in each case). At 90 mA cm⁻², 50% of COD was attained; but an increase on the j (120 mA cm^-2) promotes a decrease on the COD removal achieving up to 25%. This behavior suggests that the BDD anode favors a set of electrochemical reactions, involving most probably the oxygen evolution and persulfate formation as was concluded in the previous section (Figure 4).^{7,19,20,28-30} Indirect oxidation of AA via ^•OH and persulfate could be attained by applying 30, 60 and 90 mA cm^-2, however, the production of some intermediates more difficult to oxidize (small amounts of FA and traces of OA),^30,31 limit an higher COD removal. Conversely, with 120 mA cm^-2 oxygen evolution was favored, reducing the production of persulfates (see, Figure 4), as well as hydroxyl radicals and consequently, limiting an efficient degradation of AA and its intermediates. Comparing these results with the behavior observed at HClO₄, very similar elimination profiles of AA were reached (Figure 6), but slight differences (in terms of efficiency) were observed at lower j, where degradation rate was slightly faster when sulfate medium is used. This experiment indicates that AA can be oxidized by the strong oxidants generated in both media, but the production of persulfates in sulfate medium, oxidizes faster in the bulk the short-chain carboxylic acid.

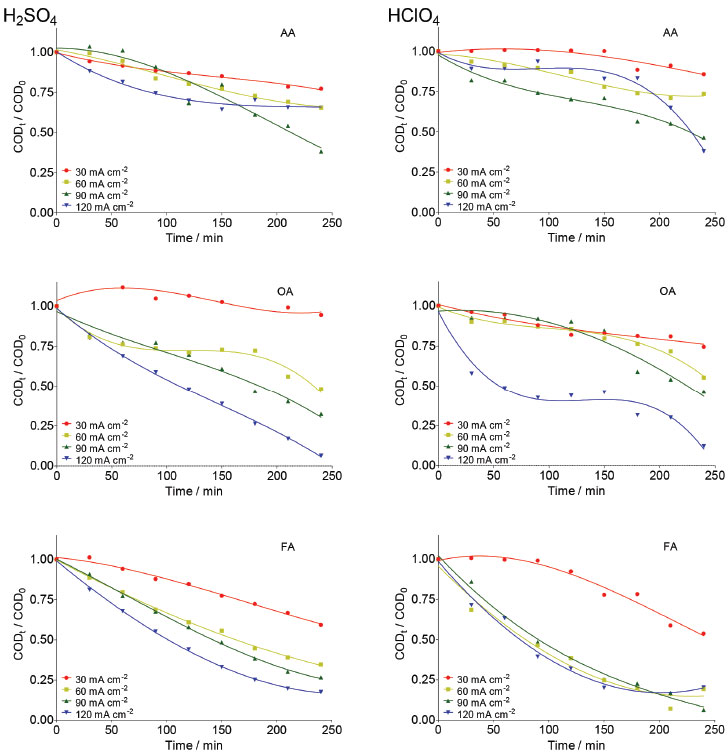

Figure 6. Effect of j on the normalized COD decay as a function of electrolysis time during the EO of AA, OA and FA at Nb/BDD anode surface in 0.25 mol L^-1 H₂SO₄ (left) and 0.25 mol L^-1 HClO₄ (right) applying 30, 60, 90 and 120 mA cm^-2

During Nb/BDD electrolysis for OA elimination (Figure 6) in H₂SO₄, no significant COD removal was observed at 30 mA cm⁻² (5%). However, when an increase on the j is attained, the elimination of OA from solution was gradually increased, achieving 50%, 70% and 98% of COD removals after 240 min by applying 60, 90 and 120 mA cm⁻², respectively. This result indicates that this carboxylic acid requires high concentration of strong oxidant (^•OH and H₂O₂ in HClO₄ or ^•OH and S₂O₈²⁻ in H₂SO₄) to be degraded_. Conversely, at HClO₄, lower COD decays were achieved at 30, 60 and 90 mA cm⁻², while an 87% of COD was achieved at 120 mA cm⁻². In the former behavior, it is clearly that a synergic effect due to the participation of strong oxidants (^•OH and persulfate) promotes a quick elimination of OA (Eq. 19). Meanwhile, the oxidation process, in HClO₄, competes with the side reaction of oxygen evolution (Eq. 18) and H₂O₂ production (considered a weaker oxidant), avoiding a significant elimination of OA, in the proximity of the electrode surface and/or in the bulk of the electrolyte.^19,25,29

Figure 6 also shows the COD removal of FA in solution by applying 30, 60, 90 and 120 mA cm⁻² at Nb/BDD anode in H₂SO₄. Results clearly showed that, COD removal increases when an increase on the j is attained. At both acidic medium, no enough concentration of oxidants is formed at 30 mA cm^-2. Meanwhile, when j increases, the production of ^•OH/H₂O₂ radicals in HClO₄ and ^•OH/S₂O₈^2- in H₂SO₄ are favored, increasing significantly the mineralization of FA. Generally speaking, the behavior observed at H₂SO₄ is similarly achieved at HClO₄ (see, Figure 6) because of the small chemical structure of FA, favoring mainly the formation of CO₂ (Eq. 20) with any strong oxidant formed at the electrode:

From these experiments, it can be proposed that when the electrochemical incineration is mediated solely by ^•OH specie, degradation has a close behavior to a heterogeneous electrochemical reaction, due to the physisorbed ^•OH radicals onto the electrode. In the other hand, in the presence of sulfates the degradation reaction occurs both homogeneously with S₂O₈^2- anion and heterogeneously by means of the physisorbed ^•OH radicals, boostering the organic compounds elimination.

From Eq. 11, total current efficiency (TCE) values were estimated (Figure 7) for the electrochemical incineration of AA, OA and FA using Nb/BDD in H₂SO₄ after 240 min, and these were compared with the values obtained using HClO₄. According to the results, the electrical energy furnished for the electrochemical incineration of AA is more efficiently employed than the other experiments. In fact, good TCE values were obtained for the elimination of AA when 30, 60 and 90 mA cm^-2 were applied in H₂SO₄. This indicates that, the elimination is gradually performed via the participation of ^•OH and persulfate³² in a catalytic way increasing degradation by homogeneous reactions. Over 90 mA cm^-2, the TCE decreased notably (less than 50%), indicating that oxygen evolution is the main electrochemical reaction. For this carboxylic acid and HClO₄ medium, again higher TCE values were obtained, but only with 60 and 90 mA cm^-2 indicating that in this range of j, the ^•OH are produced efficiently. As observed in H₂SO₄ media, higher values of j favored oxygen evolution and lower did not generate enough ^•OH radicals or H₂O₂ is formed which do not oxidizes efficiently AA. In the case of OA, it shown to be a more recalcitrant acid than AA and TCE values close to 40% were the maximal values obtained in HClO₄ media using the highest current density values. Conversely, in H₂SO₄ media, more than 50% is achieved by applying 90 and 120 mA cm^-2 indicating the participation of persulfate improves the elimination. It is well known that one of the most recalcitrant carboxylic acids during organic matter degradation is oxalic acid and is generally detected in the electroincineration using BDD electrodes,⁵ for this reason, it was not efficiently eliminated. For FA, TCE values increased again in H₂SO₄ to values close to 90% at low current densities (60 mA cm^-2) and decreases as result of oxygen evolution when current density increases; FA had a similar behavior to AA in HClO₄.

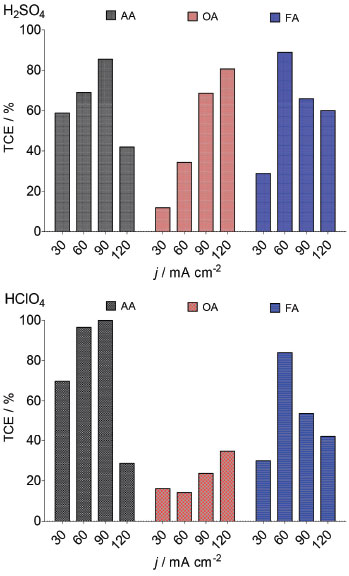

Figure 7. TCE values as a function of applied j during EO of AA, OA and FA in 0.25 mol L^-1 H₂SO₄ and 0.25 mol L^-1 HClO₄ by using Nb/BDD anode estimated at 240 min of electrolysis

Mineralization of the short chain carboxylic acids

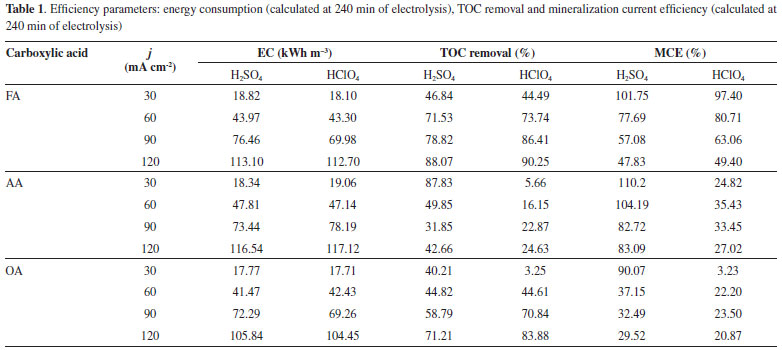

The mineralization current efficiency (MCE) was determined using equation 12, which takes into account the change on TOC during the electrolysis. Table 1 shows TOC removals in both supporting electrolytes studied. In the case of FA in both H₂SO₄ and HClO₄, it was at low j values almost entirely mineralized reaching similar MCE values. At the higher j values, the process was limited by mass transport at the end of the process showing a decrease in the MCE. This confirmed that secondary reactions (such as oxygen evolution) occurs in concomitance as was discussed previously.^25,33-35

For AA, MCE was significantly high in H₂SO₄ than that achieved in HClO₄, but it was achieved at lower j. This indicates that the mineralization of organic matter (from AA molecule) to CO₂ and water, is accomplished in slower, suggesting that it is converted to other simpler compounds that limit the EO process or/and this reaction is in competition with oxygen evolution.^24,33,34 In the case of OA, lower mineralization is achieved at 30 and 60 mA cm^-2 at both supporting electrolytes. However, an increase on the j promotes an increase on the mineralization level²⁹ after 240 min of electrolysis (Table 1). This result confirms the COD removal efficiencies achieved in H₂SO₄ and HClO₄, but in the case of sulfuric acid, the participation of strong oxidants in reaction cage (^•OH and S₂O₈^2-) is attained. However, it is evident that, the mineralization of OA into CO₂ and H₂O is not complete favored due to the complexity of the OA structure.^19-21

Efficiency parameters

In order to evaluate the efficiency of EO, we compare the results obtained by the energy consumption (EC), at the end of each one of the electrochemical treatments. Table 1 also shows the EC required for removing AA, OA and FA using Nb/BDD anode. As can be observed, during the electrolysis of synthetic wastewater solutions, EC is directly proportional to the j applied, then, an increase on j spent higher electrical energies. Also, EC is independent of the carboxylic acid degraded because similar values were achieved. However, when EC is compared with the % COD removed at each one of the carboxylic acids, it is evident that higher removal efficiencies were achieved for FA oxidation with lower EC. Meanwhile, similar behavior is observed between AA and OA, in terms of COD removals at the end of the electrolysis, but the increase on the energy requirements is directly proportional for OA elimination. Conversely, a significant variation of EC is achieved at AA oxidation with different COD removals.

CONCLUSIONS

The supporting electrolyte has important role on the oxidative process pathway due to the strong oxidants produced at Nb/BDD surface. In fact, in the case of HClO₄, higher concentrations of hydroxyl radicals and hydrogen peroxide were detected, whereas persulfate production and hydroxyl radicals are the main reactions when H₂SO₄ is used in solution as electrolyte. The formation of persulfate is performed due to the direct oxidation of sulfate on diamond electrode surface, but the reaction between hydroxyl radicals and sulfate ion is also feasible. This reaction can be conveniently for electrochemical incineration used, treating a synthetic solution containing carboxylic acids, separately. The experiments with sulfuric acid demonstrated a faster removal of organic matter, in terms of COD and TOC, which can be attributed to the simultaneous action of persulfates and hydroxyl radicals. Comparing the results using H₂SO₄ and HClO₄, similar behaviors were achieved in terms of electrochemical degradation for FA, and AA, nevertheless, OA showed to be a more recalcitrant organic compound.
