INTRODUCTION

The term "perichromic" has been applied to dyes that are capable of sensing their microenvironment by changing their color in solution.¹ The most common example of perichromism is probably solvatochromism, i.e., color changes of a dye in distinct solvents, where the changes arise from its interactions with the solvating medium.² However, other environmental perturbations can also affect the spectral response of a perichromic dye. The addition of an electrolyte may induce color changes through a phenomenon termed halochromism.³ Salts added to a solution of a halochromic dye can induce color changes that can be traced to interactions with the cation (cationic halochromism) or with the anion (anionic halochromism). Organic compounds, such as tetraalkylammonium or tetraalkylphosphonium salts, can also produce halochromic shifts that differ from those observed with alkali or alkaline-earth salts.⁴ Variations in the temperature (thermochromism)⁵ or in the pressure (piezochromism)⁶ of a solution of a perichromic dye can also induce color changes.

Despite such a variety of environmental changes, all spectral changes can ultimately be interpreted as arising from interactions between the dye and its environment; thus, these compounds are valuable indicators of the particular microenvironment that surrounds them. This indicating ability is especially true in solvent mixtures, where the observed spectral response of the dye does not reflect the bulk composition of the mixture but rather the composition of the solvating mixture in the cybotactic region of the molecule. By recording and comparing the colors of solutions of the dye in different solvent mixtures, we can deduce the dye's preference for one of the cosolvents, or its "preferential solvation."⁷

In the present communication, we describe the simple preparation of a perichromic dye, 2, by condensation of an amine with an aldehyde followed by in situ treatment of various solutions of the obtained imine 1 with a base.

The imine precursor can be prepared by conventional refluxing of the two reagents in ethanol or by a microwave heating of a mixture of the solid reagents. The simplicity of these procedures allows an adequate illustration of the phenomenon of perichromism in an undergraduate laboratory through a "colorful" experiment that stimulates the student's capacity for abstraction by demanding he or she interpret the results on the basis of solute-solvent interactions in a solution.

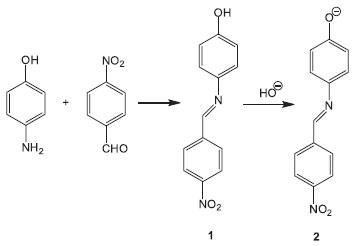

Scheme 1. Preparation of dye 2

EXPERIMENTAL

The melting point of 1 was recorded with an electrothermal apparatus and was not corrected. UV-Vis absorption spectra of dye solutions were obtained with a Perkin-Elmer Lambda-35 spectrophotometer. An Anton Paar Microwave 300 synthesis reactor or a commercial Groven microwave oven were used for the preparation of imine 1.

4-Aminophenol, 4-nitrobenzaldehyde, and the 1.0-M methanolic solution of tetrabutylammonium hydroxide were purchased from Sigma-Aldrich.

Preparation of N-(4-hydroxyphenyl)-4-nitrobenzaldimine 1 - (a) A mixture of 4-aminophenol (0.4 g, 3.7 mmol) and 4-nitrobenzaldehyde (0.4 g; 2.7 mmol) in ethanol (50 mL) was refluxed for 90 min. The solution was cooled, and the precipitated product was filtered and dried to give 0.35 g (44% yield) of imine 1. (b) Alternatively, a mixture of 4-aminophenol (0.4 g, 3.7 mmol) and 4-nitrobenzaldehyde (0.4 g, 2.7 mmol) were thoroughly ground in a mortar and the resulting mixture was heated in a 100-mL Erlenmeyer flask in a conventional microwave oven for 3 min at high average power. The dark-red residue was triturated in ethanol and filtered to give 0.5 g of imine 1 (62% yield). (c) In addition, a mixture of 4-aminophenol (0.200 g; 1.83 mmol) and 4-nitrobenzaldehyde (0.200 g; 1.32 mmol) was heated in a microwave synthesis reactor for 1 min at 100 ºC. The dark-red residue was triturated in ethanol and filtered to give 0.17 g of imine 1 (42% yield).

The imine was recrystallized in ethanol to give the pure product in the form of dark-red crystals; m.p. 172 ºC, lit.⁸ 176 ºC.

a) Solvatochromism of 2 - Solutions of 1 in ethanol, 2-propanol, and dimethylformamide were prepared at a concentration of 2.0 × 10^-4 mol L^-1 (ca. 1.0 mg in 20 mL). To 3 mL of each of these solutions in a test tube were added 5 µL of a 1.0 mol L^-1 methanolic solution of tetrabutylammonium hydroxide (5 × 10^-6 mol). The resulting colored solutions were compared, and the λ_max values of the solvatochromic band of the dye were recorded.

b) Preferential solvation of 2 in a binary solvent mixture - Solutions of 1 (2.0 × 10^-4 mol L^-1) in acetone and 2-propanol, prepared as previously described, were mixed in variable proportions to a final total volume of 3 mL. To each of these solvent mixtures was added 5 µL of a 1.0 mol L^-1 methanolic solution of tetrabutylammonium hydroxide. The resulting colored solutions were compared, and the λ _max values of their solvatochromic band were recorded.

c) Halochromism of 2 - To a 3-mL solution of 2 in acetone, as prepared in procedure (a), was added increasing amounts of dry sodium iodide (1 mg and 8 mg). The resulting colored solutions were compared, and the λ_max values of their solvatochromic band were recorded.

d) Thermochromism of 2 - Two test tubes, each containing 3 mL of a solution of 2 in 2-propanol, as prepared in procedure (a), were immersed in ice water and in hot water (70-80 ºC). After 2 min, the color of the two solutions was compared and the λ_max values of their solvatochromic band were recorded.

RESULTS AND DISCUSSION

Solvatochromism of 2

The variation of the charge-transfer band of dye 2 with the solvent is readily visualized in Figure 1. The solvent polarity decreases in the order ethanol > 2-propanol > dimethylformamide such that the charge-transfer band of 2 exhibits a red or bathochromic shift as the polarity of the medium is reduced (i.e., negative solvatochromism).

Figure 1. Color variation of solutions of 2 in solvents with decreasing polarity. From left to right: ethanol (λ_max 466 nm), 2-propanol (λ_max 494 nm), dimethylformamide (λ_max 587 nm)

The cause of this negative solvatochromic behavior can be attributed to the interactions between the dye and the solvent. A major factor that affects the internal charge transfer from the donor phenolate to the acceptor nitrophenyl group of 2 is the electronic availability of the donor group. In a protic solvent such as ethanol, which forms strong hydrogen bonds with the phenolate oxygen, this electronic availability is diminished, the highest occupied molecular orbital (HOMO) of the molecule is stabilized by this interaction with the solvent, and the corresponding electronic transition energy to the lowest unoccupied molecular orbital (LUMO) of the dye increases (Figure 2).

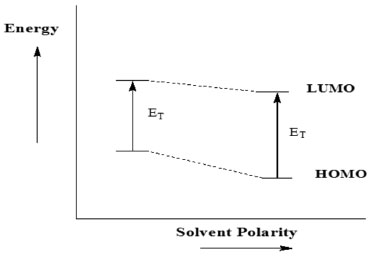

Figure 2. Schematic of the variation of the HOMO-LUMO transition energy E_T of 2 in two solvents with different polarities

Preferential solvation of 2 in a binary solvent mixture

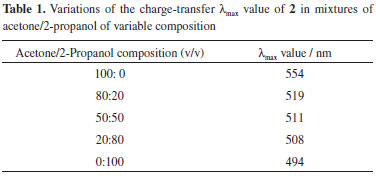

Solutions of 2 in binary solvent mixture, such as acetone/2-propanol, exhibit different colors according to the mixture composition. The corresponding charge-transfer λ_max values are listed in Table 1; these values indicate that a blue or hypsochromic shift of the band occurs as the proportion of 2-propanol is increased.

Notably, the variation of the λ_max value does not correlate linearly with the mixture composition. For the dye in a 50:50 mixture of acetone and 2-propanol, for example, the observed λ_max value (511 nm) is closer to the value for the dye in pure 2-propanol (494 nm) than to that for the dye in pure acetone (554 nm), indicating that the dye "sees" more alcohol molecules than acetone molecules in its immediate environment (i.e., the cybotactic region), or is preferentially solvated by 2-propanol.

Halochromism of 2

When increasing amounts of a salt such as dry sodium iodide are added to a solution of dye 2 in acetone, significant color changes are observed (Figure 3), thereby indicating halochromic behavior.

Figure 3. Cationic halochromism of dye 2 in acetone when increasing amounts of NaI are added to a 3-mL solution of the dye. From left to right: 1 mg (λ_max 537 nm) and 8 mg (λ_max 514 nm) of NaI added

The halochromic effect is quantified by recording the spectra of these solutions. The λ_max value of the halochromic band shifts bathochromically (red shift) from λ_max = 537 nm in the case of 1 mg of NaI in acetone to λ_max = 514 nm in the case of 8 mg of NaI. These spectral changes can be rationalized by invoking an ion-pair association between the Na⁺ cation and the phenolate group of the dye; this spectral shift is therefore an example of cationic halochromism.

Thermochromism of 2

The variation in color of two solutions of 2 in 2-propanol at different temperatures is shown in Figure 4 as a demonstration of the thermochromism of the dye.

Figure 4. Color change of a solution of 2 in 2-propanol when cooled in ice water (left) and when placed in a hot-water (70-80ºC) bath (right)

In ice water (ca. 0 ºC), the solution absorbs at 491 nm, whereas it absorbs at 497 nm at 70-80 ºC. The student might conclude that colder solutions are more "polar." In fact, heat disrupts the hydrogen bonds between the protic solvent and the phenolate oxygen, which results in a bathochromic (red) shift of the charge-transfer band of the dye when the solution is heated.

CONCLUSIONS

The described experiment involves the simple and fast preparation of a perichromic dye and subsequent characterization of its behavior as an environmental sensor. Variations of the solvent (solvatochromism), the solvent composition in binary mixtures (preferential solvation), the temperature (thermochromism), or the ionic composition of the solvent by the addition of salts (halochromism) induce substantial color changes of its solutions, which are readily perceived by the student. The rationalization of these "colorful" results will lead the student to a deeper understanding of molecular solute-solvent interactions and their effect on electronic transition energies.
