INTRODUCTION

Trace amounts of arsenic can be detected in soil, water, animals, and plants, as well as human bodies due to the ingestion of food and drinking water. Studies have shown that moderate amounts of arsenic have a positive effect on human growth and development because it contributes to the synthesis of hemoglobin. However, excessive intake of arsenic and its inorganic compounds can cause poisoning and cancer.^1,2

The presented arsenic speciation includes methyl arsenate (MMA), dimethyl arsenate (DMA), arsenobetaine (AsB), and inorganic arsenic ( As (III) and As (V) ).^3,4 Arsenic toxicity is related to both its total amount and also its chemical form. For example, mono-arsenic is non-toxic, but arsenic compounds have varying degrees of toxicity, pentavalent arsenic is less toxic than trivalent arsenic, and organic arsenic is less toxic than inorganic arsenic. Arsenic compounds become enriched in algae due to their ingestion from the surrounding environment and are then converted into a variety of fat-soluble and water-soluble compounds. Therefore, it is importance to detect arsenic species in algae for protecting the health and safety of consumers.^5,6

Current methods for detecting inorganic arsenic in food include atomic fluorescence spectroscopy (AFS),^7-9 liquid chromatography-atomic fluorescence spectroscopy (LC-AFS),^10-13 and liquid chromatography-inductively coupled plasma mass spectrometry (LC-ICP-MS).^14-16 AFS is widely used but is often used only to determine the total amount of inorganic arsenic. LC-ICP-MS is highly sensitive, but its equipment and operating requirements are expensive, resulting in a high detection cost. LC-AFS can be used for morphological analysis and as a hydrogenation atomic fluorescent spectrometer and has a simple operation and flexible conversion.¹⁷ In order to ensure that the form of arsenic does not change during the extraction process, different extractants can be selected according to the actual situation of sample matrix.^18-22 In this paper, LC‑HG‑AFS was used to analyze the amounts of As(III), As(V), MMA, and DMA in algae samples. The algae samples were extracted by dilute nitric acid, four arsenic species in extracting solution were separated by HPLC. After separation, the four arsenic species were subjected to potassium borohydride hydrolysis to produce gaseous arsenic compounds that were measured by atomic fluorescence spectroscopy. The liquid chromatography conditions were optimized, and four arsenic species showed excellent separation, enabling the quantitative analysis of arsenic species in algae samples. The developed method can be used for reference for the determination of arsenic speciations in foods, and provided technical support for carrying out safety assessment.

EXPERIMENTAL

Instruments

LC-HG-AFS was performed using a 9560 instrument (Beijing Haiguang Instrument Co., Ltd, China). An incubator with a temperature control system from Shanghai Precision and Scientific Instrument Corporation was used. Samples were treated with a Z36 HK centrifuge (HERMLE Co., Germany), IKA T25 Homogenizer (EIKA Equipment Co., Germany). Samples were weighed using an ML204 electronic analytical balance (Mettler-Toledo Co., USA), and a Vortex-Genie 2 Vortex Agitator (Scientific Industries, Inc., USA).

Materials

Kelp, Porphyra, and Undaria pinnatifida were purchased from a wholesale market in Daqing, China.

As(III) standard solution (GBW08666, 1.011 µmol g^-1), As(V) standard solution (GBW8667, 0.233 µmol g^-1), MMA standard solution (GBW08668, As: 0.335 µmol g^-1), and DMA standard solution (GBW08669, 0.706 µmol g^-1) were purchased from the National Institute of Metrology of China.

Ammonium dihydrogen phosphate, potassium borohydride, and sodium hydroxide were purchased from Tianjin Kemio Chemical Reagent Co., Ltd. Nitric acid and hydrochloric acid were purchased from Fisher Scientific, USA. A 0.22-µm microporous membrane was obtained from Dikma Technologies (Beijing, China). The test water is ultrapure water. The chromatographic column (Hamilton PRP-X100 4.1 mm x 250 mm, 10 µm) was purchased from Beijing Haiguang Instrument Co., Ltd.

Sample pre-treatment

1.000 g of Kelp (Porphyra or Undaria pinnatifida) were added into a 50 mL PTFE centrifuge tube, and then 10 mL of 0.15 mol L^-1 nitric acid was were successively added and placed overnight. Afterward, the 50 mL PTFE tube were dipped in a constant-temperature bath at 90 ºC, then taken out and shaken for 1 min every 0.5 h, 2 hours later, and then cooled down to the room temperature. The 50 mL centrifuge tube was centrifuged for 15 min at 10,000 rpm. The upper 5 mL supernatant was further transferred into a 15 mL PTFE centrifuge tube, and then 5 mL hexane was added and shaken for 1 min, centrifuged for 15 min at 10,000 rpm, and the upper hexane layer was discarded. This process was repeated once, and the subnatant was filtered by a 0.22 µm organic membrane before LC-AFS analysis. The blank and spiked sample were conducted in the same way.

Standard solution preparation

The standard solution containing the above four arsenic speciation was diluted with 0.15 mol L^-1 nitric acid into a series of standard working solutions of 2, 5, 10, 50, 100, 150 and 200 µg L^-1. A standard curve was constructed from the concentration of the four arsenic speciation in the series of standard working solutions and the corresponding peak area.

Instrumental conditions

Liquid chromatography conditions

Chromatographic column: Hamilton PRP-X100 4.1 mm x 250 mm, 10 µm, Beijing Haiguang Instrument Co., Ltd; 150 µL injection volume, 1.0 mL min^-1 mobile phase flow rate; mobile phase: disodium hydrogen phosphate-potassium monohydrogen phosphate (pH = 6.0), using isocratic elution.

Atomic fluorescence conditions

Negative high voltage: 300 V; As lamp current of 80 mA; atomizer height of 9 mm, carrier gas flow rate of 300 mL min^-1; shield gas flow rate: 900 mL min^-1. 10% (V/V) hydrochloric acid as carrier liquid, mixed solution of 15 g L^-1 potassium borohydride and 0.5 % (m/m) potassium hydroxide as the pre-reducing agent and the hydriding agent.

where E^m+, EH_n are signals out from the analytic element and gaseous hydrides.

RESULTS AND DISCUSSION

Optimized liquid chromatography conditions

Choice of Mobile Phase: This is why bubbles in the mobile phase can interfere with separation, cause baseline drift, peak changes, and deviations in detection, so the mobile phase was ultrasonically degassed for 30 minutes. The effects of two different flow rates relative to chromatographic peaks and the response strength of NH₄H₂PO₄-NaH₂PO₄ and KH₂PO₄-NaH₂PO₄ were compared. When using KH₂PO₄-NaH₂PO₄ as the mobile phase, the baseline was stable, the peak symmetry was good, and the target compound obtained a higher response value, so KH₂PO₄-NaH₂PO₄ was selected as the mobile phase.

Choice of Mobile Phase pH: A PRP-X100 anion exchange column was used, which has a wide pH range from 1 to 13. The pH value of the mobile phase was very important for separation of target compound. Samples were extracted with 0.15 mol L^-1 nitric acid, and the pH of the extracted sample solution was around 2. The effect of the mobile phase pH (3, 4, 5, 6, 7, 8) on the analysis results was optimized. The optimal pH was adjusted 6.

Choice of Flow Rate: The flow rate of mobile phase have significant influences on the symmetry of arsenic species signal peak as well as the recovery of four arsenic species and then finally affects the accuracy of final result. Flow rates of 0.6, 0.8, 1.0, 1.2, and 1.4 mL min^-1 were used to examine their effect on the peak shape and response intensity of the four arsenic speciation. The relationship between the flow rate of mobile phase and the symmetry of arsenic speciation signal peak (KH₂PO₄-NaH₂PO₄, pH = 6.0, isocratic elution) are shown in Figure 1. As can be observed, the optimal flow rate was determined to be 1.0 mL min^-1.

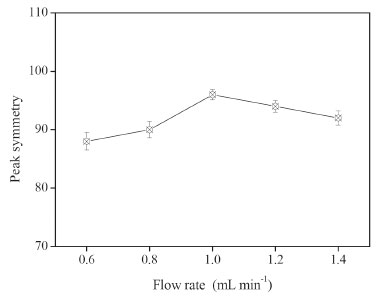

Figure 1. Effect of fiow rate of mobile phase on the peak symmetry (KH₂PO₄-NaH₂PO₄ mobile phase, isocratic elution, pH=6, injection volume 150 µL)

Linear relationship and detection limit

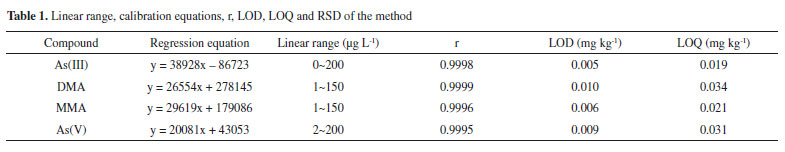

The standard stock solution of four arsenic speciation was diluted using 0.15 mol L^-1 nitric acid solution. The standard working solution with concentrations of 0, 2, 5, 8, 10, 15, 30, 50, 100, 150, and 200 µg L^-1 were obtained. Using the optimal conditions, the concentration corresponding to the arsenic response value was used to obtain the standard equation with good linear relationship and low detection limit. (Table 1).

Precision and accuracy of the method

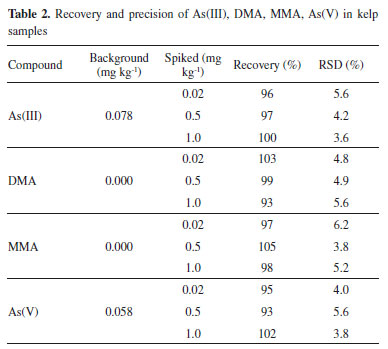

To estimate the precision and accuracy of the proposed method, kelp samples was analyzed with spiked concentration levels of 0.02, 0.5 and 1.0 mg kg^-1, respectively. Under the optimized conditions established above, the recovery and relative standard deviation of arsenic were calculated and listed in Table 2. The recovery rate was measured to be between 93-105%, and the precision was between 3.6% and 6.2%. This shows that this method can be applied to analyze and detect arsenic in algae samples.

Determination of arsenic in algae samples

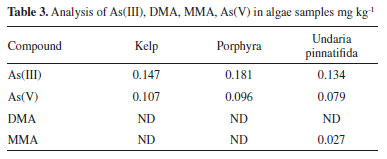

After demonstrating the feasibility of this method, algae samples were purchased from a wholesale market for processing. 150 µL supernatants from 4 kelp samples were absorbed, and the four arsenic speciation content was measured and analyzed using the LC-HG-AFS method (Figure 2). The content of trivalent arsenic and pentavalent arsenic in the kelp samples were obtained and the levels of arsenic speciation in the algae samples were calculated (Table 3).

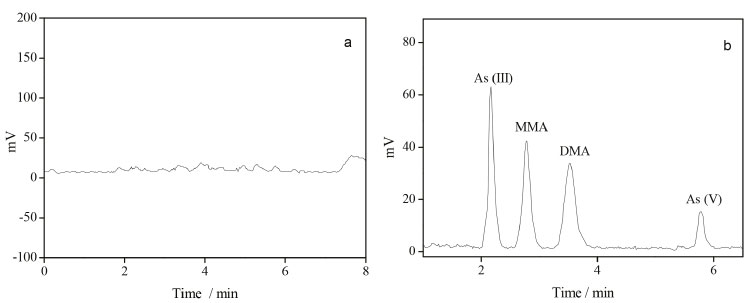

Figure 2. HPLC-HG-AFS chromatograms of (A) blank sample, (B) spiked sample with the four arsenic species (KH₂PO₄-NaH₂PO₄ mobile phase, isocratic elution, pH=6, injection volume 150 µL, fiow rate 1.0 mL min^-1)

Comparison of the proposed method with others

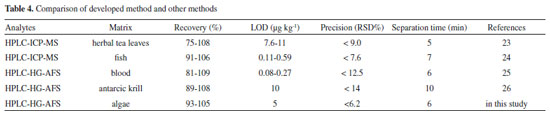

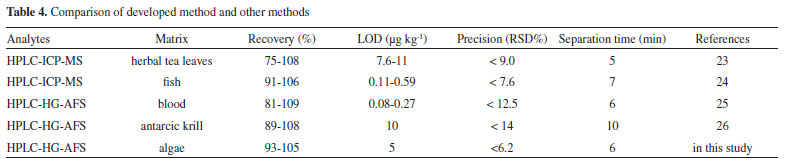

Listed in Table 4 are the experimental results of HPLC-ICP-MS,^23,24 HPLC-HG-AFS,^25,26 and the proposed method. In comparison with those reported methods for the separation and determination of arsenic species, the proposed method has some advantages in higher precision, more accuracy, and shorter separation time.

CONCLUSION

To evidence the performance of the present method applicable to the detection of four arsenic species in algae samples were analyzed with the proposed procedure. After the nitric acid extraction as described above in the section of sample preparation, these samples were subjected to LC-HG-AFS analyses under the optimized liquid chromatography and atomic fluorescence conditions. The four arsenic speciation were separated and determined within 6 minutes. This method has a simple operation, in higher precision, stable data collection, and shorter separation time, and can be applied to analyze and study arsenic species in algae samples.

ACKNOWLEDGMENTS

This work was supported by Heilongjiang Bayi Agricultural University Support Program for San Heng San Zong (No. ZRCQC201910, No. PTJH201905)
