INTRODUCTION

Biodiesel consists of a mixture of fatty acid methyl or ethyl esters, industrially produced by transesterification of oils and fats.^1-4 The most common triglycerides present in oils and fats are structurally derived from 6 to 24 carbon chain fatty acids. Acyl groups are usually linear and have an even number of carbons. These can be saturated, monounsaturated, or polyunsaturated. In the last case, double bonds are not conjugated. Normally, the double bond configuration is cis.⁵ Biodiesels made from most oils and fats have 16 or 18 carbon chains. From feedstock such as soy or corn oils, chains are predominantly polyunsaturated. From canola oil, chains are mainly monounsaturated. Palm and tallow fats biodiesels are made up of 50% of saturated-chains fatty esters. Some palm trees fats, such as palm kernel and babassu, produce biodiesel consisting of more than 50% short chain, 8 to 14 carbons, saturated esters.^6-8

Biodiesel has been used as total or partial substitute for fossil diesel in compression-ignition engine. As a fuel, it has the advantages of higher cetane number, lubricity and flash point.^9-15 It is free of sulfur compounds and contributes to the reduction of hydrocarbons and particulate matter emissions.^10,12,14,15 On the other hand, it has higher hygroscopicity and cold filter plugging point and a lower oxidative stability.^9,15-19 In particular, the latter two characteristics are highly dependent on the feedstock.

Biodiesel oxidative stability is normally tested under accelerated conditions in an equipment called Rancimat. At 110 °C, a sample is subjected to an air flow. The volatile secondary oxidative products are transferred from the biodiesel and bubbled into water in a second cell. The aqueous solution has its conductivity measured over time. The stability is expressed as the induction period (IP), which is the interval when the aqueous solution conductivity is greatly enhanced.^4,20-22

Under storage conditions, the oxidation is induced by factors such as air contact, temperature, light, and contaminants such as metals.^4,16,19,20 Biodiesel degradation results in the formation of deposits and gums that cause the darkening of fuels, filters and injectors plugging, and engine corrosion.^16,19,20,23

The chain length of diesel hydrocarbons ranges from 10 to 22 carbons. This complex isomeric mixture includes paraffins, isoparaffins, naphthenes and aromatics compounds.²⁴ Biodiesel, on the other hand, consists of a much simpler blend of linear chain fatty esters, which tend to crystallize at moderately cold temperatures.^15,16,19,25 Such crystals can reduce the fuel fluidity and damage the engine.^10,16,25,26

The tendency to crystalize is greatly influenced by the biodiesel composition. Double bonds with cis configuration, such as those found in oleate (C18:1), linoleate (C18:2), and linolenate (C18:3), put an angular geometry on the chain and hinder crystallization.^15,16 Conventional oils therefore produce biodiesel with better cold proprieties than fats. Chain length is an important factor as well. The shorter the chain, the lower the melting point,^15,27 and this can be attributed to the less intense Van der Waals forces. Biodiesels derived from coconut or palm kernel fats, in addition, have better cold properties than the one from palm, for example.²⁸

Cold Filter Plugging Point (CFPP) is the most widely used test to describe the tendency of biodiesel to crystalize at low temperature. In the assay, 20 mL of biodiesel is filtered under standard conditions at a defined temperature. The experiment is repeated at lower temperatures. CFPP is the temperature that requires more than 60 s to complete the filtration process. The lower the temperature, the longer the filtration time, as the liquid viscosity is higher and the small crystals begin to appear.^27,28

In order to minimize crystallization tendency, some strategies have been suggested. Winterization, for instance, is the separation of crystals by filtration after biodiesel is subjected to low temperatures. The filtrate has the CFPP diminished; however, part of the fuel is lost. Alternatively, flow enhancers can be added to inhibit crystals growth. Additives are often costly. On the other hand, cold flow properties can be enhanced by using branched alcohols in the transesterification reaction. Again, the process is more expansive. Finally, biodiesel from different feedstock can be blended.^4,9,16,29-31 By optimizing the content of saturated and polyunsaturated chains, the blend composition can minimize the crystallization tendency and maximize the biodiesel stability under oxidative conditions.

In this paper, we evaluated oxidative stability and the cold filter plugging point of biodiesel blends made from a fat such as palm, palm kernel, babassu, tallow, lard, and soy oil in different proportions.



EXPERIMENTAL

Biodiesel synthesis

Commercial lard, palm, palm kernel fat and soy oil were used as received. Raw tallow was melted and filtered before use. The biodiesel samples were obtained by transesterification double steps process (TDSP) as described by Guazatto et al.³² About 200 mL of the feedstock were introduced into a 1.0 L glass reactor preheated at 65 °C. Then, a solution of 1.1 g of KOH in 80 mL of MeOH was transferred to the reactor. The mixture was vigorously stirred at 65 °C for 30 min. After this time, a solution of 1.0 mL of H₂SO₄ in 40 mL of MeOH was added over the mixture. The mixture was further stirred at the same temperature for 60 min. After that, the stirring was stopped, and the mixture was allowed to separate. The upper layer was isolated, filtered, and washed three times with 100 mL of hot water (70 °C). Finally, biodiesel was subjected to evaporation in a vacuum in order to eliminate volatile impurities.

Esters content and composition: the content of palm kernel and babassu biodiesel esters were determined by Hydrogen Nuclear Magnetic Resonance as described by Guzatto et al.³² The spectra were acquired using a Varian Mercury 400 MHz Spectrometer. Samples (50 mg) were prepared in CDCl3 (0.5 mL). Lard, tallow, soy and palm biodiesel esters contents were determined by GC-FID as described by Braun et al.^6,33 Analyses were performed in a Shimadzu 2010 gas chromatography equipped with a flame ionization detector, AOC 20i auto-sampler and OV CARBOWAX 20 M (30 m x 320 µm x 0.25 µm). Hexadecyl acetate or hexadecyl propionate was used as internal standard. Biodiesel compositions were determined by relative peak areas of individual fatty esters. For babassu and palm kernel biodiesels, response factors were used as described by Visentainer.³⁴ Free and total glycerin were determined in palm kernel and babassu biodiesels as described in the standard method, EN 14105.³⁵ Induction period: oxidative stability expressed as induction period was determined in a Rancimat model 873 Metrohm using the standard method EN 14112.³⁶ Cold filter plugging point were determined with FPP 5GSA ILA by PAC using the standard method ASTM 6371.³⁷ Blends of fat biodiesels with soy oil biodiesel were prepared by mixing the appropriate volumes of each.



RESULTS AND DISCUSSION

Methyl biodiesel of lard, tallow, palm, palm kernel and babassu fats and soy oil were easily prepared using the TDSP methodology. Palm, tallow, lard and soy biodiesels had their ester contents estimated as 98% or higher by gas chromatography. The ester contents of palm kernel and babassu biodiesels cannot be determined by GC-FID, unless the peak areas are corrected by response factors. However, this is not the EN 14103 standard³⁸ orientation, and the ester content of 94.6 and 92.5% was found for palm kernel and babassu biodiesels, respectively. Ester content can also be estimated by ¹H NMR. In this case, values of 99.4% and 97.7% were obtained for palm kernel and babassu, respectively. TDSP is a well-established method and the quality of biodiesel obtained by this way is well known. Just for control, these two biodiesels had their monoglyceride (MG), diglyceride (DG), triglyceride (TG), and glycerol contents determined by GC. DG and TG were not detected. MG was estimated as 0.11% for palm kernel and 0.06% for babassu. Glycerol content was estimated as 0.01% for the latter but was not detected for the former.

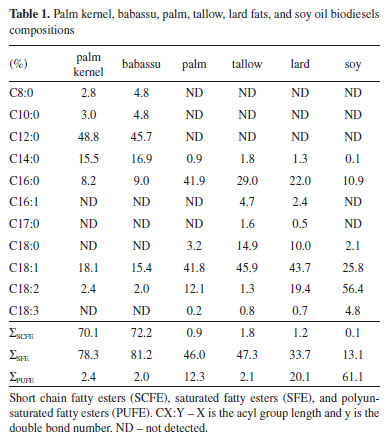

Table 1 shows individual fatty esters content for each biodiesel.





The composition of the palm kernel and babassu biodiesel is markedly different from the others. Oleate is the main fatty ester present in lard and tallow biodiesel (ca. 45%). Palm biodiesel is also rich in C18:1. Tallow biodiesel has low linoleate content compared to the other two. Soy biodiesel, on the other hand, is predominantly polyunsaturated.

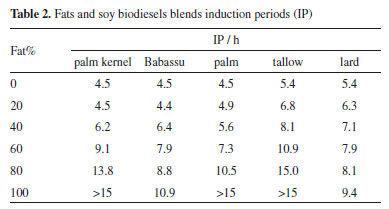

Table 2 shows the blends induction periods (IP). Experiments were conducted for 15 h. Pure soy biodiesel (0% fat) showed an IP of approximately 5 h. Depending on the sample, minor variations were found. Small additions of fat biodiesel caused slight increments. Pure fat biodiesels (100%) showed an induction period of 9 h or more. Blends comprised by 60% of fat biodiesel by volume had their IP increased from 1.5 (lard) to 2 times (palm kernel), compared to soy one.

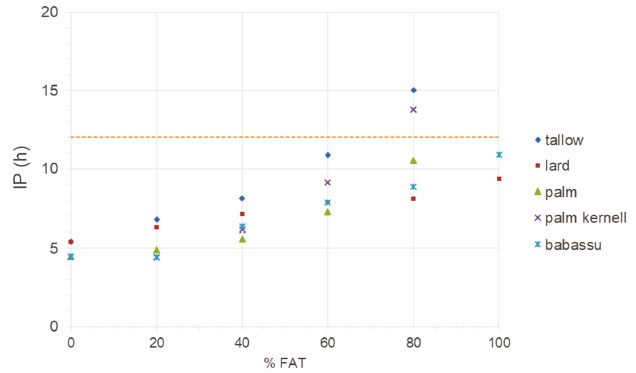

Figure 1 shows the induction period (IP) of biodiesel blends as a function of the fat biodiesel content on the blend. Of course, in all the cases, IP is enhanced with addition of fat biodiesel over the soy biodiesel, since the content of the polyunsaturated chains responsible for the oxidation process, is reduced.





Among the fats, lard is the richest in linoleate and is the most susceptible to oxidation. Palm kernel and babassu present polyunsaturated content as low as tallow. However, addition of these vegetable fats biodiesels over soy seems not to be as effective as the latter. It is noteworthy that induction period is a parameter that indirectly evaluate the biodiesel oxidative stability. In the assay conditions, shorter chains, like those in palm kernel and babassu biodiesels, can be arrested by the Rancimat air current from the sample cell to the aqueous solution sample and enhance its conductivity, consequently diminishing the induction period.

ASTM D6751-18, the Standard Specification for Biodiesel (B100)³⁹ specifies 3 h as the lower induction period limit. Soy biodiesel, or any of its blends, thus meets the specification. Brazilian legislation,⁴⁰ by its turn, defines 12 h as the inferior limit (dashed line in Figure 2). This is observed only in 80% of palm kernell or tallow blends.





Unlike the hydrocarbons that make up diesel, the fatty esters that constitute biodiesel can be unsaturated and the composition is strictly dependent on the feedstock. In the presence of oxygen, the oxidative degradation of the ester chain is carried out by a radical mechanism, Scheme 1.

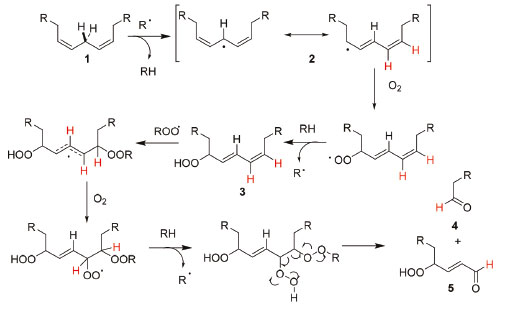

A C-H homolytic fission removes an allylic or bis-allylic hydrogen (1), producing a free radical (2) which is stabilized by resonance. The stabilization is especially high in bis-allylic free radical. In this case, the radical formation activation energy is reduced and thus the reaction rate is increased.^19,20 For this reason the relative oxidation rates of oleate (C18:1), linoleate (C18:2), and linolenate (C18:3) are 1:41:98.^{13,15,16,19-21} The higher the polyunsaturated fatty esters content, the lower the biodiesel stability. Biodiesel obtained from fats like tallow or palm is more stable under oxidative conditions than those produced from oils, such as soy or corn.¹⁹ Primary

oxidation products are hydroperoxydes (3); however, as the oxidation progresses, short chains carbonyl compounds like ketones, aldehydes and carboxylic acids (4, 5) are formed.^16,18-22

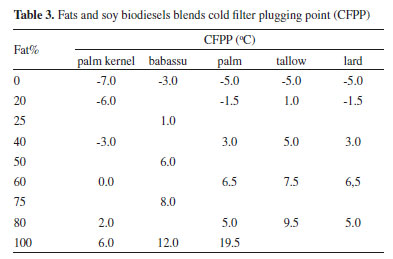

Table 3 shows the cold filter plugging points (CFPP) of soy biodiesel and its blends with palm kernel, babassu, palm, tallow and lard. Pure soy biodiesel (0% fat) showed CFPP from -7 to -3 ºC, depending on the sample. Small additions of fat biodiesel caused slight CFPP increments.

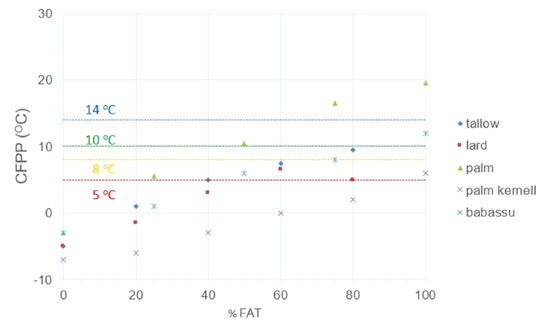

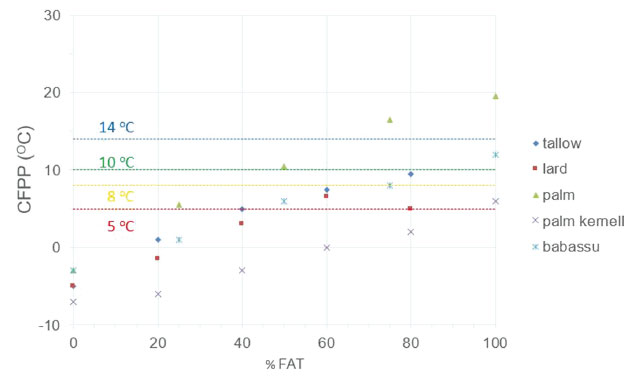

Figure 2 shows the cold filter plugging point (CFPP) of biodiesel blends as a function of the fat biodiesel content.

It is expected that palm and tallow should have greater impact on cold flow properties than lard, since they have higher contents of saturated chains. Babassu and palm kernel, on the other hand, even though they are highly saturated, mostly contain short chains, and lower temperature filter plug. ASTM D675137 establishes the cloud point as a parameter to evaluate the cold flow properties of biodiesel instead of the cold filter plugging point. In Brazil, CFPP higher limit depends on the period of the year and the region. It cannot be higher than 14 ºC (blue dashed line) in the summer time. Besides palm, all soy/fat biodiesel blends exhibit CFPP below the limit. In the winter, the limits are 10, 8, or 5 ºC (green, orange and red lines, respectively) depending on the reagion. Palm kernell biodiesel can be added to soy in any proportion. Tallow, lard, and babassu can be added from 40 to 80% depending on the region.



CONCLUSIONS

Blends of fats and soy oil biodiesels were prepared and evaluated for their oxidative stability and cold filter plugging point. The addition of fats biodiesel over soy oil biodiesel improved its stability; however, its crystallization tendency was enhanced. Of the fats, tallow biodiesel addition showed the highest effect over the induction period (IP). In this case, IP was measured as 12 h or more only in 80% of palm kernell or tallow blends. The higher cold filter plugging point (CFPP) observed in the fats biodiesel is a disadvantage. CFPP was observed to be 5 and 8 °C for the blends containing up to 40 and 60% of the fat biodiesel, respectively, except for the palm biodiesel, which required not exceeding the 20% content. Palm kernel biodiesel, on the other side, required up to 90%. In summary, it can be concluded that palm kernel biodiesel blend with content of 80% reached the specifications for the two properties, IP and CFPP.
