INTRODUCTION

Genus Astragalus L. (Fabaceae) is comprised of more than 3500 species, distributed in every continent except Antarctica.¹ In Europe the genus is presented with 135 species, 31 of which are distributed in Bulgaria.^2,3 The plants have been known to accumulate mainly three groups of pharmacologically active compounds - polysaccharides, flavonoids and saponins.⁴

Recently, N-(8-methylquercetin-3-O-[α-L-rhamnopyranosyl-(1→2)-[α-L-rhamnopyranosyl-(1→6)]-β-D-galactopyranosyl])-3-hydroxypiperidin-2-one and N-(8-methylkaempferol-3-O-[α-L-rhamnopyranosyl-(1→2)-[α-L-rhamnopyranosyl-(1→6)]-β-D-galactopyranosyl])-3-hydroxypiperidin-2-one were isolated from A. monspessulanus subsp. monspessulanus.⁵ Flavoalkaloids are a rare group of plant secondary metabolites, known previously only as aglycones.⁶ This leads to a further investigation of possible accumulation of flavoalkaloids in other representatives of the genus.

Long considered a chemotaxonomical marker of genera Rosa and Plathyrodon (Rosaceae), flavonoids acylated with 3-hydroxy-3-methylglutaric acid were also isolated from Astragalus species.^7-9 Quercetin-3-O-α-L-rhamnopyranosyl-(1→2)-[6-O-(3-hydroxy-3-methylglutaryl)-β-D-galactopyranoside and kaempferol-3-O-α-L-rhamnopyranosyl-(1→2)-[6-O-(3-hydroxy-3-methylglutaryl)-β-D-galactopyranoside were obtained from the overground parts of A. monspessulanus subsp. illyricus.⁵ This presents a new opportunity to establish the chemotaxonomical significance of these acylated flavonoids for the genus.

Flavonoid triglycosides occur quite rarely and their biosynthesis is undoubtedly a result of interconnecting pathways.¹⁰ Quercetin-3-O-α-L-rhamnopyranosyl-(1→2)-[α-L-rhamnopyranosyl-(1→6)]-β-D-galactopyranoside (alcesefoliside) and kaempferol-3-O-α-L-rhamnopyranosyl-(1→2)-[α-L-rhamnopyranosyl-(1→6)]-β-D-galactopyranoside (mauritianin) were isolated from the aerial parts of A. monspesulanus subsp. monspesulanus.⁵ Kaempferol-3-O-[2-O-β-D-galactopyranosyl-6-O-α-L-rhamnopyranosyl]-β-D-glucopyranoside (camelliaside A) was isolated from the herbs of A. glycyphyllos.¹¹

Studies of Bulgarian Astragalus species showed that they have an intermediate content - some contain pentacyclic triterpenoid saponins, while in other species the accumulation of cycloartane saponins was proved.^12,13 Previously, 17(R),20(R)-3β,6α,16β-trihydroxycycloartanyl-23-carboxilic acid 16-lactone 3-O-β-D-glucopyranoside was isolated from the herbs of A. glycyphyllos.¹¹ From a taxonomical point of view the saponin content of other species is of particular interest.¹⁴

The aim of this study was to conduct an UHPLC-HRESIMS screening for the presence of selected rare secondary metabolites in species of genus Astragalus occurring in Bulgaria

EXPERIMENTAL

Plant material

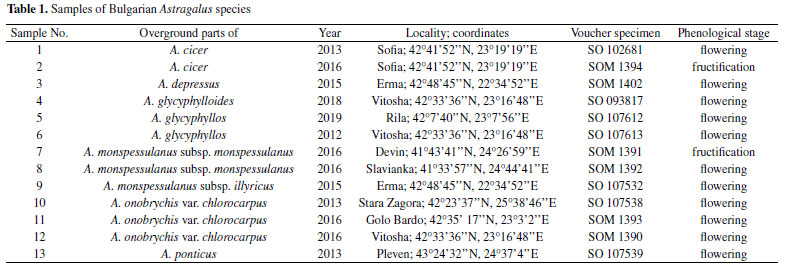

The overground parts of seven Astragalus species (Table 1) were collected either in flowering or in fructification, from marked plants and/or from different localities in Bulgaria. The species were identified by Dr. D. Pavlova from Faculty of Biology, Sofia University, Bulgaria and two of us (A. S. and I. K.). Voucher specimens were deposited in the Herbarium of the Sofia University (SO) or at the Herbarium of the Institute of Biodiversity and Ecosystem Research at the Bulgarian Academy of Sciences (SOM).

Extraction

Overground parts were dried at room temperature and then individually reduced to a powder. A sample of each (200 mg) was refluxed twice with 3 mL 80% MeOH on a boiling water bath (100 °C) for 30 min each. The extracts obtained were filtered, combined in a volumetric flask and the volume adjusted to 10.0 mL with the same solvent. An aliquot of 2 µL was injected to UHPLC.

Ultra high performance liquid chromatography-high resolution electrospray ionization mass spectrometry (UHPLC-HRESIMS)

A Q ExactiveT Plus Orbitrap mass spectrometer with a heated electrospray ionisation (HESI) ion source (ThermoFisher Scientific, Bremen, Germany) coupled with a UHPLC system (Dionex UltiMate 3000 RSLC, ThermoFisher Scientific, Bremen, Germany) was used. The full scan MS was set at: resolution 70000 (at m/z 200), AGC target 3e⁶, max IT 100 ms, scan range 250 to 1700 m/z. The MS² conditions were: resolution 17500 (at m/z 200), AGC target 1e⁵, max IT 50 ms, mass range m/z 200 to 2000, isolation window 2.0 m/z and (N)CE 20. The ionization device (HESI source) was operating at: +3.5 or -2.5 kV spray voltage and 320 °C capillary and probe temperature, 38 arbitrary units (a.u., as set by the Extactive Tune software) of sheath gas and 12 a.u. of auxiliary gas (both Nitrogen); S-Lens RF level 50.0. UHPLC separations were performed using a Kromasil^© C₁₈ column (1.9 μm, 2.1 x 50 mm, Akzo Nobel, Sweden) maintained at 40 °C; mobile phase H₂O added 0.1% HCOOH (A) and MeCN added 0.1% HCOOH (B) with a flow rate of 0.3 mL/min and gradient elution (10% B for 0.5 min, then increase to 30% B for 7 min, isocratic with 30% B for 1.5 min, increase to 95% B for 3.5 min, isocratic with 95% B for 2 min, then return to 10% B for 0.1 min).

Reference substances

The structures of the reference substances are shown in Figure 1 and the chemical names are given in Table 2. They were isolated from the plant source (purity more than 99 %, HPLC) and their structures were confirmed by extensive spectral analyses and comparison to data reported before.^5,11 Rutin (99.8% purity) was purchased from Sigma Aldrich. Standard solutions of each reference substance were prepared in MeOH (100 ng mL). Two µL of each solution were injected in the UHPLC-HRESIMS system three times.

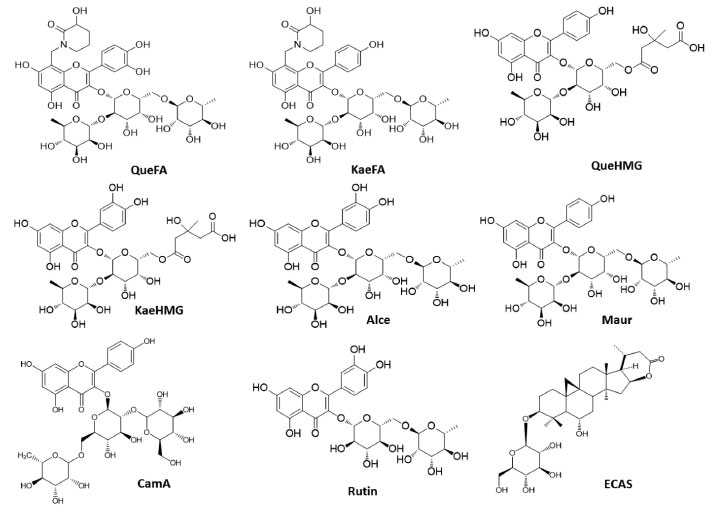

Figure 1. Reference substances used to perform the screening; abbreviations are given in Table 2

Detection

Detection of the compounds in the samples was based on the full scan chromatograms in both positive and negative mode, considering the retention time, compared to the standards. Identification was supported by MS² experiments which revealed the aglycone part of the molecule in question as well as the successive loss of monosaccharides of the sugar moiety. The fragmentation pattern was compared to that of the reference substance (Table 2). The following criteria were adopted for the identification: coincidence of both the retention time and of the fragmentation pattern with that of the standard in both positive and negative modes.

Software

The software Xcalibur^©, Version 4.2 (Thermo Scientific) was used to collect raw data and to process the results.

RESULTS AND DISCUSSION

Method development

Liquid chromatography coupled with mass spectrometry is considered to be one of the most accurate methods to identify multiple compounds in complex samples.¹⁵ A novel UHPLC-HRESIMS method was developed for determination of selected secondary metabolites in plant extracts. The method was rapid and efficient. As recommended by the The International Council for Harmonization of Technical Requirements for Pharmaceuticals for Human Use (ICH) the validation was performed on several parameters.¹⁶ Specificity against each reference substance was examined on blank solutions. There were no peaks in the chromatogram of the blank solution with retention time (Rt) similar to any of the reference compounds (Table 2). The limit of detection, based on three times the signal-to-noise ratio, was calculated for each reference substance (Table 2) by injecting 2 µL of each standard solution three times. The repeatability (SD %) on six solutions containing rutin was ± 1.1%.

Rutin, as a well-known flavonoid was initially used to develop the method.¹⁰ An ion [M-H]^- (m/z 609.1470, C₂₇H₂₉O₁₆^-) and in MS² ions with m/z 300.0280 (C₁₅H₈O₇^-•, [Que-H]^-•) and with m/z 301.0349 (C₁₅H₉O₇^-, [Que-H]^-) were observed, while in the positive mode a precursor ion [M+H]⁺ with m/z 611.1605 (C₂₇H₃₁O₁₆⁺) and in the MS² a corresponding ion with m/z 303.0496 (C₁₅H₁₁O₇⁺) for [Que+H]⁺ were registered.¹⁰ The flavonoid was identified in all extracts except those of A. depressus and A. glycyphylloides (Samples 3 and 4, Table 3). These findings are with accordance with previous results.^4,17-19 Moreover, the results of rutin content and their coincidence with the literature prove the accuracy of the screening method presented.

Mass spectral analysis of reference substances

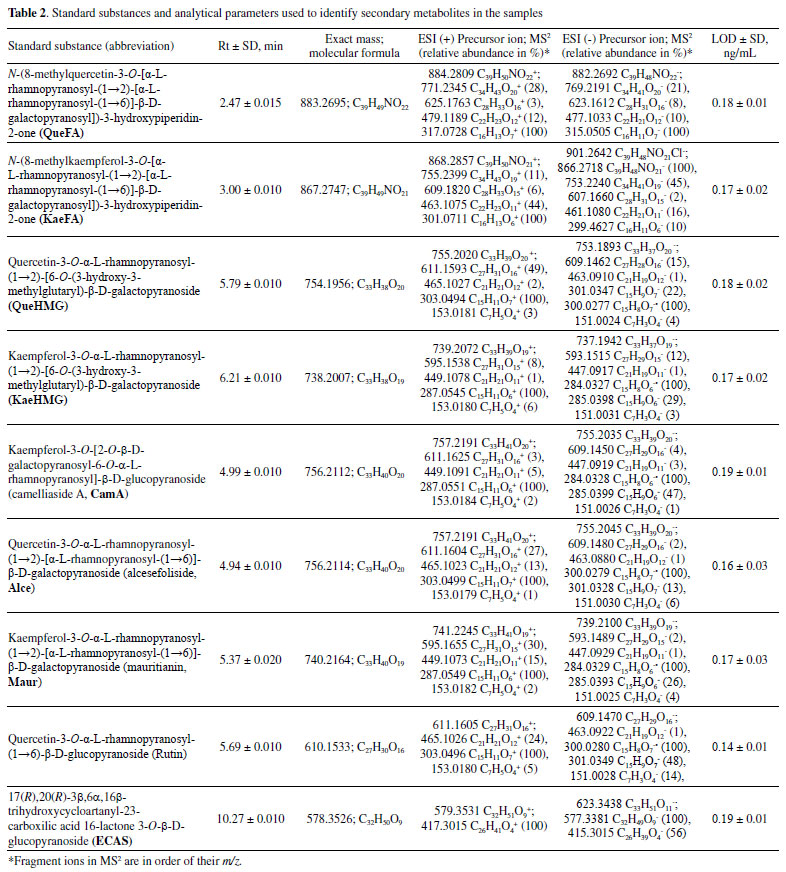

The mass fragmentation of the standards was investigated and the experimental findings are presented in Table 2. The principal fragmentation patterns of flavoalkaloids and flavonoids are shown on Figure 2, except for rutin, since its fragmentation was previously described.¹⁰ The fragmentation of ECAS is presented in Figure 3. In the negative MS² spectrum of all flavonol glycosides described above, a fragment ion with m/z 151 (C₇H₃O₄^-) and in the positive MS² spectrum a fragment ion with m/z 153 (C₇H₅O₄⁺), both due to retro-Diels-Alder (RDA) fragmentation of their aglycone (^1,3A^- or ^1,3A⁺) were observed.²⁰ This was not registered for the flavoalkaloids investigated.

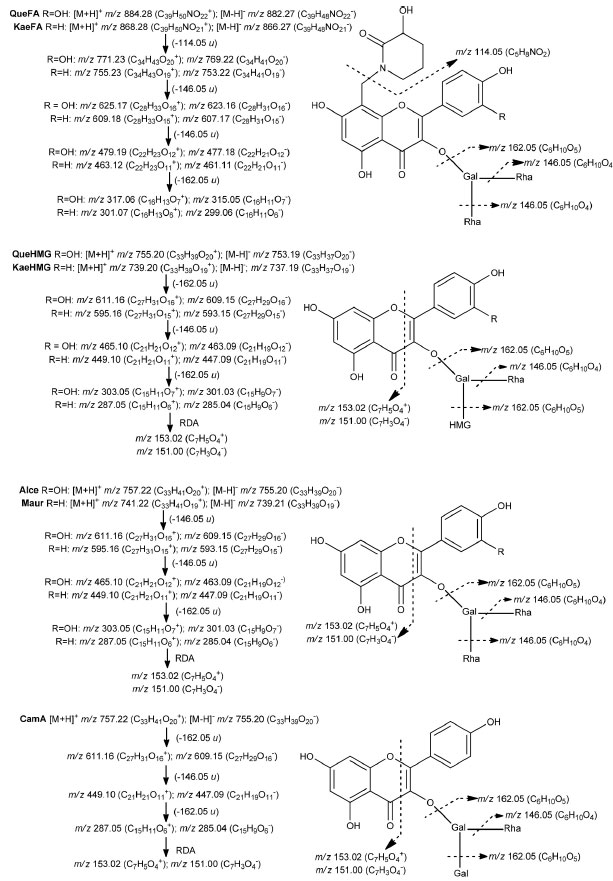

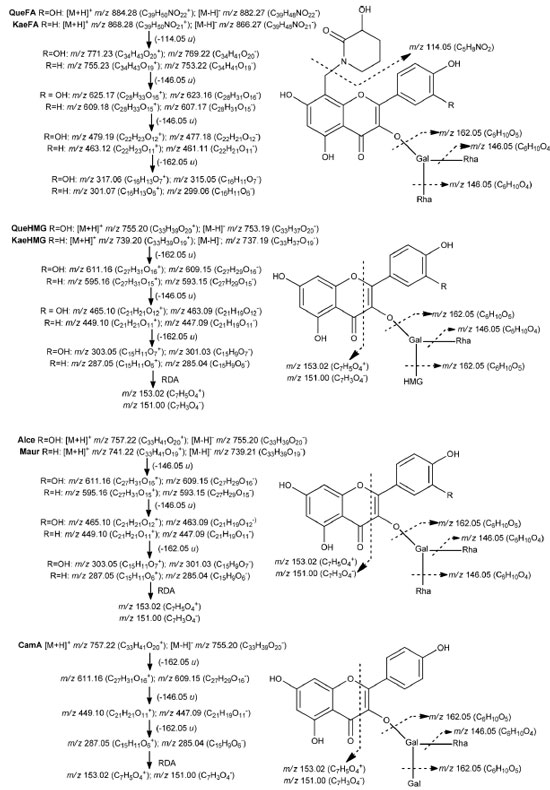

Figure 2. Fragmentation patterns of flavoalkaloids and flavonoids investigated; abbreviations are as in Table 2

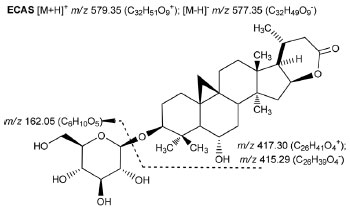

Figure 3. Fragmentation of ECAS; abbreviation is as in Table 2

In the mass spectrum of QueFA, a deprotonated ion [M-H]^- m/z 882.2692 (C₃₉H₄₈NO₂₂^-) with low abundance was observed. The fragmentation led to an ion with m/z 315.0505 (C₁₆H₁₁O₇^-), corresponding to deprotonated methylquercetin [methylQue-H]^- after cleavage of the hydroxypiperidine-2-one moiety.^21-23 A protonated ion [M+H]⁺ m/z 884.2809 (C₃₉H₅₀NO₂₂⁺) and aa fragment with m/z 317.0728 (C₁₆H₁₃O₇⁺, [methylQue+H]⁺), were registered in the positive mode (see Figure 2 and Table 2).¹⁰ In the spectrum of KaeFA, no deprotonated molecular ion [M-H]^- was observed (theoretically, m/z 866, C₃₉H₄₈NO₂₁^-), but a stable and abundant ion with m/z 901.2642, corresponding to [M+Cl]^- (C₃₉H₄₈NO₂₁Cl^-) was found (Table 2). In the MS² spectrum of this adduct the most abundant was the [M-H]^- ion (m/z 866.2718, C₃₉H₄₈NO₂₁^-). The aglycone - a deprotonated methylkaempferol [methylKae-H]^- with m/z 299.4627 (C₁₆H₁₁O₆^-, also formed after cleavage of the hydroxypiperidine-2-one moiety) was registered as well.²⁴ A precursor ion [M+H]⁺ (m/z 868.2857, C₃₉H₅₀NO₂₁⁺) was observed in positive ionization mode. Its fragmentation led to the formation of [methylKae+H]⁺ (m/z 301.0711, C₁₆H₁₃O₆⁺) as shown in Figure 2 and Table 2).²⁴ A deprotonated molecular ion (m/z 753.1893, C₃₃H₃₇O₂₀^-) was observed in the spectrum of QueHMG and after cleavage of the 3-hydroxy-3-methylglutaric residue (HMG), an ion corresponding to deprotonated rutin (m/z 609.1462, C₂₇H₂₉O₁₆^-), a fragment ion with m/z 301.0347 (C₁₅H₉O₇^-) [Que-H]^-), and an ion of the type [M-(rha-gal-HMG)-H]^-• (m/z 300.0278, C₁₅H₈O₇^-•, most abundant in MS²) were registered.^21-23 A precursor ion [M+H]⁺ (m/z 755.2020, C₃₃H₃₉O₂₀⁺) and an ion with m/z 303.0494 (C₁₅H₁₁O₇⁺, [Que+H]⁺) were observed in the positive polarity (see Figure 2 and Table 2).²¹ In the negative mode in the spectrum of KaeHMG an ion [M-H]^- (m/z 737.1942, C₃₃H₃₇O₁₉^-), and an ion with m/z 593.1515 (C₂₇H₂₉O₁₅^-, after HMG cleavage) were recorded. Characteristic ions of the deprotonated aglycone (m/z 285.0398, C₁₅H₉O₆^-) and [Kae-H]^-• with m/z 284.0327 (C₁₅H₈O₆^-•) were observed.^10,22,23 In the positive mode, a precursor ion [M+H]⁺ with m/z 739.2072 (C₃₉H₃₉O₁₉⁺), an ion with m/z 595.1538 (C₂₇H₃₁O₁₅⁺, [Kae-rha-gal+H]⁺, after HMG elimination), and a fragment ion with m/z 287.0545 (C₁₅H₁₁O₆⁺, [Kae+H]⁺) were observed (see Figure 2 and Table 2).²⁴ In the spectrum of camelliaside A an ion [M-H]^- (m/z 755.2035, C₃₃H₃₉O₂₀^-) was determined and. An ion of [Kae-H]^-, m/z 285.0399 (C₁₅H₉O₆^-) and [Kae-H]^-• with m/z 284.0328 (C₁₅H₈O₆^-•) were detected.¹¹ A precursor ion [M+H]⁺ with m/z 757.2191 (C₃₃H₄₁O₂₀⁺) was observed in positive polarity, which gave a fragment ion for [Kae+H]⁺ with m/z 287.0551, C₁₅H₁₁O₆⁺ (see Figure 2 and Table 2).¹⁰ In the spectrum of alcesefoliside an ion [M-H]^- was identified (m/z 755.2045, C₃₃H₃₉O₂₀^-).¹⁰ The ions [Que-H]^-• with m/z 300.0279 (C₁₅H₈O₇^-•) and [Que-H]^- with m/z 301.0328 (C₁₅H₉O₇^-) distinguished the compound from camelliaside A, which had similar retention time. A precursor ion [M+H]⁺ (m/z 757.2191, C₃₃H₄₁O₂₀⁺) was observed, as well as in MS² the aglycone with m/z 303.0499 (C₁₅H₁₁O₇⁺, [Que+H]⁺ (see Figure 2 and Table 2).¹⁰ In the negative mode in the spectrum of mauritianin an ion [M-H]^- was observed (m/z 739.2100, C₃₃H₃₉O₁₉^-) and in the MS² ions [Kae-H]^-• with m/z 284.0329 (C₁₅H₈O₆^-•) and [Kae-H]^- with m/z 285.0393 (C₁₅H₉O₆^-) were recorded.^22-24 In the positive mode a precursor ion [M+H]⁺ (m/z 741.2245, C₃₃H₄₁O₁₉⁺), and in the MS² an ion with m/z 287.0549 (C₁₅H₁₁O₆⁺), corresponding to [Kae+H]⁺ were found (see Figure 2 and Table 2).²⁴

In the negative ionization mode, 17(R),20(R)-3β,6α,16β-trihydroxycycloartanyl-23-carboxylic acid 16-lactone 3-O-β-D-glucopyranoside (ECAS) forms a formate adduct [M-H+HCOOH]^- with m/z 623.3438 (C₃₃H₅₁O₁₁^-, formic acid present in the eluent system), therefore Fourier transformed Selected Ion Mode (FT-SIM) was used to detect this saponin.¹¹ In addition a FS as well as MS² chromatogram of each sample was recorded. An ion [M-H]^- was observed (m/z 577.3381 C₃₂H₄₉O₉^-), as well as a fragment ion (m/z 415.3015, C₂₆H₃₉O₄^-), corresponding to the sapogenin. The compound protonated to a small extent under positive ionization to give the [M+H]⁺ ion (m/z 579.3531, C₃₂H₅₁O₉⁺). A fragment ion m/z 417.3015 C₂₆H₄₁O₄⁺ was observed corresponding again to the sapogenin (see Figure 3 and Table 2).

Identification of compounds in the samples

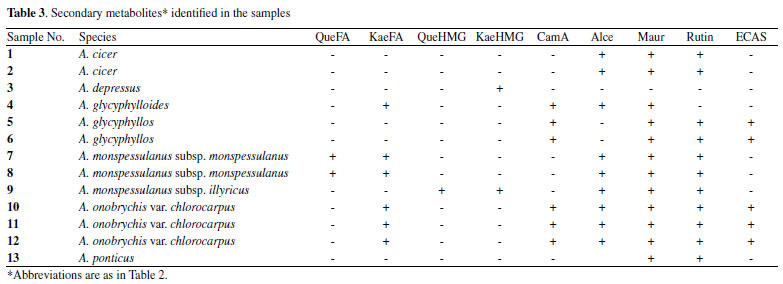

The difference in retention times of the standards (Table 2) and the compounds in the samples was less than 0.05 min (mean value of three injections) and considered acceptable.²⁵ The TIC-FS chromatograms of each sample are in Supplementary. QueFA was identified in extracts from A. monspessulanus subsp. monspessulanus, collected both from Devin (Sample 7) and from Slavianka (Sample 8). This finding corroborates the presence of this flavoalkaloid in the species (Table 3).⁵ No other of the species examined accumulated the flavoalkaloid. KaeFA was discovered in extracts from A. onobrychis var. chlorocarpus (Samples 10, 11 and 12) as well as in extract from the herbs of A. glycyphylloides (Sample 4). This is the first report of the kaempferol flavoalkaloid presence in species other than A. monspessulanus subsp. monspessulanus. Analysis of extracts from the latter (Samples 7 and 8, Table 3) confirmed its accumulation and coincides with previous reports.⁵

The presence of QueHMG and KaeHMG was confirmed in the sample of A. monspessulanus subsp. illyricus (Sample 9, Table 3) and consistent with previous results.⁵ No other of the examined species accumulated QueHMG (Table 3), while for the first time KaeHMG was identified in the extract of A. depressus (Sample 3, Table 3).

Camelliaside A was discovered in samples of A. glycyphylloides (Sample 4, Table 3) and A. onobrychis var. chlorocarpus (Samples 10, 11 and 12, Table 3). Analysis of extracts of A. glycyphyllos concurred its presence in the species with accordance to literature.¹¹ Alcesefoliside was discovered in samples of A. cicer (Samples 1 and 2), A. glycyphylloides (Sample 4) and A. onobrychis var. chlorocarpus (Samples 10, 11 and 12, Table 3). Analysis of the samples of A. monspessulanus (both subspecies, Samples 7, 8, 9, Table 3) confirmed the previously reported data.⁵ Mauritianin was identified in the aerial parts of A. glycyphylloides (Sample 4) and A. onobrychis var. chlorocarpus (Samples 10, 11, 12 of Table 3), in A. cicer (Samples 1 and 2 Table 3) and in A. ponticus (Sample 13, Table 3). The results of the analysis of both subspecies of A. monspessulanus (monspessulanus, Samples 7 and 8, and illyricus, Sample 9, Table 3) coincide with previous reports.¹³

The presence of the epoxycycloartane saponin in the two samples of A. glycyphyllos confirmed a previous report.¹¹ The ECAS was identified for the first time in all extracts of A. onobrychis var. chlorocarpus (Table 3).

CONCLUSIONS

A novel rapid UHPLC-HRESIMS method was applied to detect rare flavoalkaloids, acylated and highly glycosylated flavonoids as well as a cycloartane saponin in samples of Bulgarian Astragalus species. These results will serve as the basis for thorough phytochemical screening of all Bulgarian representatives of this genus.
