The influence of the film formed on the prato cheese surface during the NaCl and KCL salting process: application of the finite element method and neural networks of the self-organizing map (SOM) and multilayer perceptron (MLP) types

Dionisio BorsatoI,*; Hágata C. SilvaI; Ana Carolina G. MantovaniII; Marco A. J. ClementeI; Talita F. de OliveiraI; Karina B. AngilelliI

I. Departamento de Química, Universidade Estadual de Londrina, 86057-970 Londrina - PR, Brasil
II. Departamento de Física, Universidade Estadual de Londrina, 86057-970 Londrina - PR, Brasil

Recebido em 22/09/2021
Aceito em 20/12/2021
Publicado na web em 07/03/2022

Endereço para correspondência

*e-mail: dborsato@uel.br

RESUMO

Sodium chloride is used in the cheese salting process as it promotes sensory changes and food preservation. However, in excess can cause hypertension problems, and for this reason, it has been partially replaced by potassium chloride. In the present work, Prato cheese was subjected to joint diffusion of NaCl and KCl by immersion in static and stirred brine. The salt concentration values on the cheese surface were determined as a function of time. They were tabulated and presented to the self-organizing map (SOM)-type neural networks and the multilayer perceptron (MLP) for analysis and modeling of the film formed on the surface of the cheese during static and dynamic salting. The SOM network showed that the behavior of the diffusive process, on the surface of the cheese, depends on the analyzed position and that the points in which occupy similar positions, concerning the distance from the edge, have similar behavior. Regression models for NaCl and KCl were significant at the 5% level and can be used for predictive purposes.

Palavras-chave: Prato cheese; brine; low sodium; SOM; MPL; neural networks.

INTRODUCTION

Cheese is an important food with high nutritional value and is part of the daily diet around the world. Among the various types of cheese available on the market, Prato cheese stands out for its nutritional value.1,2 Among the components involved in its production, sodium chloride has an outstanding role, as in addition to providing flavor, it participates in aroma development. It also controls moisture, microbial growth, and activity, the activity of various enzymes, and act on product conservation and whey expulsion. Therefore, salting is an important operation in cheese making, generally occurring between the end of pressing and the beginning of ripening.3-5

Cheese consumption represents a major contribution to sodium intake and when consumed in excess can lead to increased blood pressure. To minimize this risk, many consumers have been looking for products with lower sodium chloride content.6 Therefore, the production of Prato cheeses with a reduction or with a partial replacement of this salt is necessary, as long as it maintains the quality in the product's sensory characteristics. KCl can be used as a partial substitute in up to 30% without affecting physicochemical or sensory characteristics due to its similar properties to NaCl, and it is also considered an antihypertensive.7-11

Among the various salting processes is immersion in brine. The factors that most influence the salt absorption by the cheese are the gradient concentration, cheese geometry, salting time, brine temperature, and cheese moisture content.7,12 During salting, the dominant mass transport process is diffusion, due to the difference in salt concentration between the brine and the Prato cheese.3

The solute gain and water loss models are based on the fact that mass transfer can be described by Fick's diffusion law.13 In the mass transfer between the cheese and the brine, a film is formed on the surface and the salt flow must pass through this stationary resistive layer.14,15 To assess the resistance of the film formed on the surface and the factors that interfere with the diffusion, some data analysis tools, which employ unconventional statistics, can be used.15,16

Two of these tools are the multi-layer perceptron (MLP) and self-organizing map (SOM) artificial neural networks (ANN) used for modeling and classifying samples.17 They have been applied to solve various types of problems in different areas of science, such as engineering, medicine, chemistry, bioenergy, etc.17-21 The MLP uses the error-correction learning rule, performing training in a supervised way, applying the error back-propagation algorithm.16 SOM-type networks are based on competitive learning characterized by unsupervised learning with the formation of a topological map of input patterns, which can be one- or two-dimensional.16,22

The objective of this work was to investigate the formation, influence, and behavior of the film during multicomponent diffusion of NaCl and KCl, in static and dynamic brine of Prato cheese, applying ANN (MLP and SOM) with 3D computational modeling, using the Finite Element Method (FEM).



EXPERIMENTAL PART

Prato cheese

It was used 3 kg of Prato cheese with rectangular geometry, provided by Laticínios Campina Alta (Manoel Ribas, Paraná - Brazil). The cheese was divided into standardized geometry samples of 0.04 m x 0.04 m x 0.02 m (Figure 1).

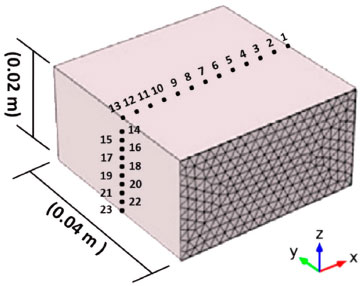

Figure 1. Solid automatically generated by the software and the positions used in the simulation



Prato cheese brine

A solution containing 15 L of brine with 5% (mass/volume) of salts was prepared. The salt composition was divided into 30% of KCl (KCl, Synth, Diadema, Brazil) and 70% of NaCl (NaCl, Panreac, Barcelona, Spain), according to Borsato et al.23 The samples were arranged in a holder, composed of nylon wires, and submerged since the Prato cheese was denser than the brine. The diffusion processes were performed in stirred and dynamic brine, the latter with a solution flow of 520 L h-1, at a constant temperature of 20 °C (± 1 °C), according to Bordin et al.9

Determination of sodium and potassium chloride

The concentration of sodium and potassium chloride in the Prato cheese samples was measured according to Bordin et al.,9 with modifications, using the Micronal photometer, model B-462 (São Paulo, Brazil, Micronal), with an air pressure of 0.8 kgf cm-2 and 1.5 kgf cm-2 air pump pressure, using butane gas.

Finite element method simulation

The simulation was performed using the COMSOL Multiphysics® software version 5.2 (COMSOL, Inc., Burlington, MA).24 The parameters used in the simulation were: main coefficients (D11NaCl = 0.50 × 10-9 m2 s-1 and D22KCl = 0.30 × 10-9 m2 s-1), cross diffusion coefficients (D12NaCl = 1.27 × 10-10 ms-1 and D21KCl = 0.70 × 10-10 m2 s-1), mass transfer coefficients for static brine (hNaCl = 5.14 × 10-7 m s-1 and hKCl = 3.10 10-7 m s-1) and mass transfer coefficients for dynamic brine (hNaCl = 2.10 10-6 m s-1 and hKCl = 1.26 × 10-6 m s-1).8,15 In the simulation, salting times ranged from 0 to 28 hours.

Figure 1 presents the solid generated automatically by the software, showing part of the tetrahedral mesh used, and the equidistant points chosen for the study of NaCl and KCl diffusion on the surface of the film formed in the Prato cheese.

Artificial Neural Networks

The self-organizing map (SOM) proposed by Kohonen22 was used to evaluate the influence and behavior of NaCl and KCl concentrations in the Prato cheese surface. The neural network routine developed by our research group was applied according to the algorithm described by Haykin16 and processed in the Matlab® R2007b software.25

For the salting time modeling, the multilayer perceptron network (MLP) of the artificial neural network module of the Statistica 13.426 software was used. The salting time (hours) was chosen as the continuous target variable, the salt concentrations (g 100-1 g of solution) at points P1-P7 and P13-P18 (Figure 1) were selected as dependent variables, and the static (Z = 1) and dynamic (Z = 2) system were chosen as categorical variables.

For the network MLP training, 200 epochs, a learning rate of 0.05, and a random subdivision of the samples were used, in three groups: 70% for training, 15% for testing, and 15% for validation.16,26

The algorithms used for activating the hidden layer and the output were selected by the application among those that make up its library for the module used, that is, identity, logistic (logistic sigmoid), hyperbolic tangent, sine, and exponential.26



RESULTS AND DISCUSSION

Samples of Prato cheese (Figure 1) were subjected to a diffusion process in brine containing NaCl and KCl, with and without stirring. Samples were collected at different times varying from 0 to 28 hours and the salt concentrations, diffusion coefficients, and film coefficients were determined.

Applying the physicochemical parameters obtained, diffusion simulations were performed by the finite element method (FEM) to determine the salts concentrations on the cheese surface.

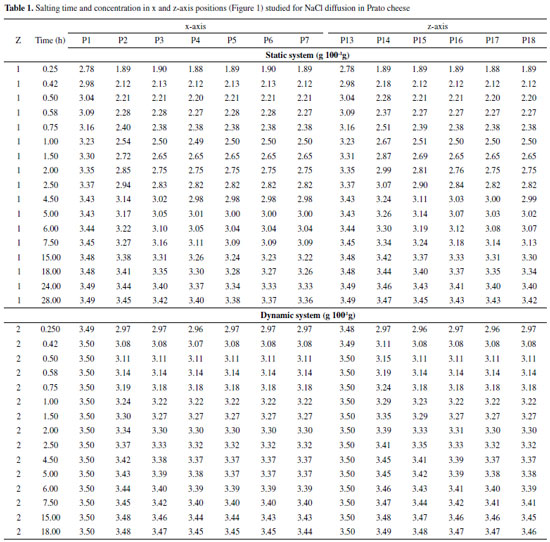

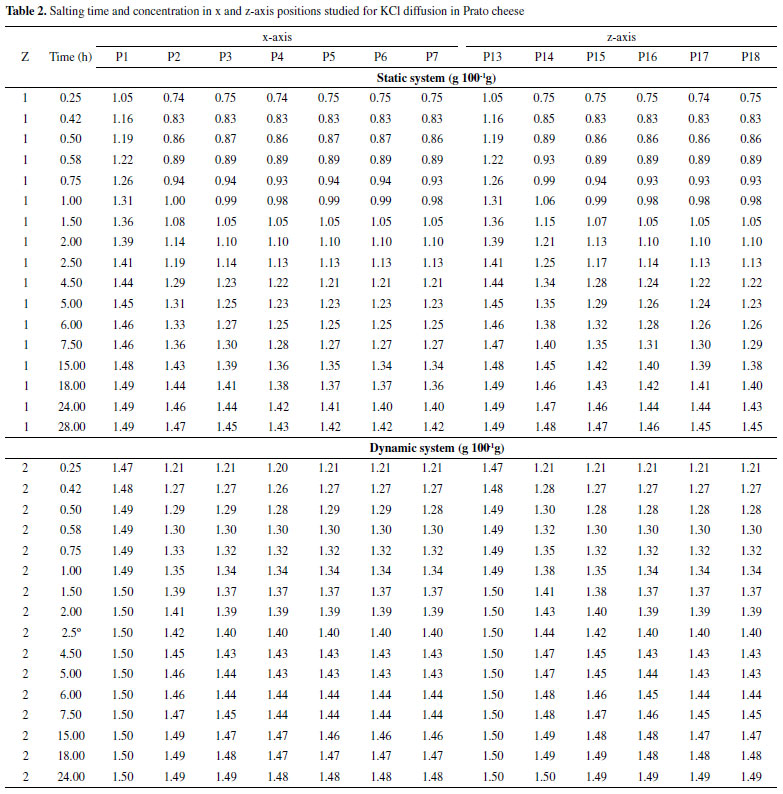

Tables 1 and 2 show the values of times (h) and NaCl and KCl concentrations, respectively, in g 100-1 g of solution, on the surface of Prato cheese during the simulation of the immersion salting process using static (Z =1) and dynamic (Z=2) brine.









The concentration at P1 and P13 are the same because they are at the same point (Figure 1). During the diffusion process, the concentration values at each point increase being higher at the extremities (P1 and P13) and lower at the center of the surface and in the cheese's sides (P7 and P18). As expected, at the same salting points and times, the concentration values are higher when using brine with stirring.

As the concentration of NaCl and KCl in the initial brine is 70% and 30%, respectively, the values observed for NaCl on the cheese surface are higher than those of KCl. Furthermore, equilibrium concentrations are reached more quickly when using stirred brine due to the smaller influence of the physical barrier of the film that is formed on the cheese surface during salting by immersion.

To analyze the influence and behavior of the film at the chosen points (Figure 1), the data in Tables 1 and 2 were processed using the SOM-type ANN routine, inserted in the Matlab® R2007b software25 to obtain the topological maps. The applied network presented a 5 x 5 hexagonal topology with 8000 training epochs, with learning rate training starting at 0.2 and exponentially decaying with the training epochs to 6.71 × 10-5, and with the initial neighborhood relation of 3.5 decaying to 0.045.

Figure 2 shows the topological maps for the points located on the upper and side cheese surfaces (Figure 1), during the multicomponent diffusion process of NaCl and KCl in static and dynamic systems. The map describes the similarity of the points as a function of the neurons-distances (hexagons) in which they are located. For both salts and systems, points P1 and P13 are on the same neuron, indicating that they have the same diffusion behavior over time. The same happens with points P6 and P7, and P17 and P18 except for KCl in the dynamic system.




Figure 2. Topological maps for the diffusion of NaCl and KCl



Furthermore, the points classified into neighboring neurons, surrounded in Figure 2, are part of the same group, which means that they present similarity in terms of concentration variation. According to Figure 2, it is possible to observe the formation of 4 groups for both salts and systems. One of them is formed by points P1 and P13, which are similar points located on the edges of the faces. These are also the points that present the highest concentrations of salts, because due to their position they are exposed to a greater number of shocks and, consequently, greater diffusion speed. A second group is formed by points from P4 to P7 and a third one is formed by points from P15 to P18 plus P3. In the two cases, P2 is included. Nevertheless, in the two cases where P2 was not part of this third group, it is located close to it, still indicating a certain behavior similarity. Point P14 makes up the fourth and last group, but it is located close to the third group in all cases, indicating, as well as P2, a certain behavior similarity.

With these results, it can be concluded that the points that occupy similar positions concerning the distance from the edge present similar behavior. It is important to note that the side and surface have different lengths, so the spacing of the points is in different scales (Figure 1).

For this reason, the points in the center of the upper face (group 2), were not classified as the same group of the side face center (group 4). A more detailed analysis shows that points P6 and P7, which do not have equivalents on the lateral face, are furthest from the points of group 3. On the other hand, P4 is part of group 2 but is closer to the samples of group 3, which corroborates the direct dependence of diffusion to the distance with the solid edge suggested above.

To model the diffusion of sodium chloride and potassium chloride on the Prato cheese surface during the salting process, using static and dynamic brine, the values presented in Tables 1 and 2 were tabulated and presented to the neural network regression module of Statistica software 13.4.26

In the regression module, the multilayer perceptron neural network (MLP) was used, testing 5 to 20 hidden layers. The networks were trained with 70% of the samples for the training group, 15% for testing, and 15% for validation. The choice of samples in each group was performed randomly to avoid that the successive examples presented to the network at an epoch, rarely belong to the same class.16 The test and validation stages aim to verify the ability of the trained network to perform generalizations.16,17,27

In the MLP modeling, 200 networks were trained and the 5 best ones were selected by the software used. The most recommended and applied algorithm to train neural networks is the BFGS, individually proposed by Broyden-Fletcher-Goldfarb-Shanno.27 This method has a better performance than more traditional algorithms such as the gradient method, but it uses more memory and requires more computational time. However, this technique may require fewer iterations to train a neural network due to its fast convergence rate.16,27 Before starting the MLP network, the BFGS algorithms and the sum-of-squares (SOS) error function were selected, which is the most suitable for regression problems.28 In addition, a learning rate of 0.05 was applied with a maximum number of epochs equal to 200. The strategy to create the predictive model was to use the automated network search of the Statistica 13.4 software.26

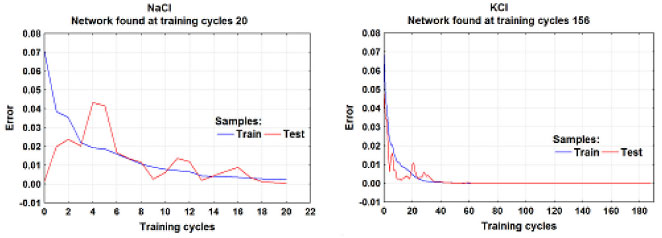

Figure 3 provides a general indication of how training and testing are progressing. It shows the number of epochs used to train and test the network with the best performance, revealing that the network needed only 20 epochs to reach training stability for the NaCl concentration data, and 156 epochs to train the network with KCl concentration data on the cheese surface. Before error stabilization an oscillation was also observed, being greater for the NaCl data.




Figure 3. Error stabilization and the number of epochs used for the network train and test of NaCl and KCl

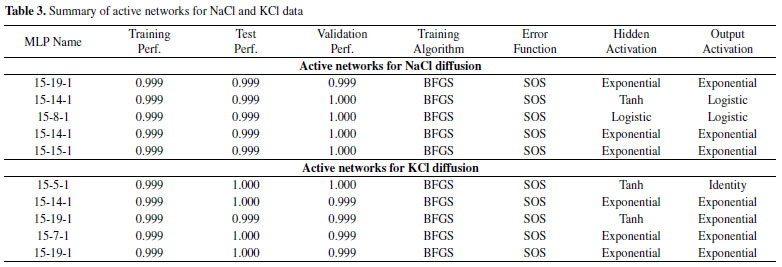

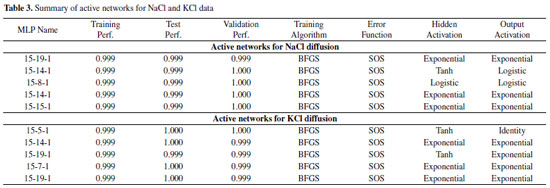

Table 3 shows the 5 networks selected by the software for modeling each salting component, the performance of training, test, and validation. The BFGS and SOS algorithms were fixed and the others were chosen by the automatic module of the Statistica software.26

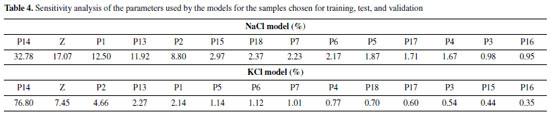

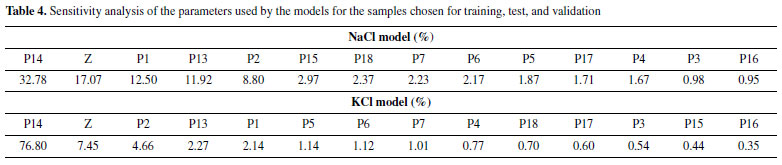

Sensitivity analysis of the data allows the assessment of the contribution of each independent variable in the construction of the predictive model. Thus, considering the 5 trained networks chosen as the best, it was possible to stipulate an order of importance for each input variable in the general model adjustment. Table 4 shows the importance of each parameter, in percentage, obtained from the average value of each network used. The most important parameters in the construction of the model to estimate the salting time of NaCl were P14 > Z > P1 > P13 > P2 and for the KCl model was P14 > Z > P2.





The performance of neural networks is measured by their ability to predict unseen data, that is, values that were not used during training. Thus, test samples randomly chosen by the software were used to verify the performance of the model and its generalization ability. To avoid just a coincidence of test results, a set of unseen validation data was used as well as an extra verification of the model's performance.16,27,28

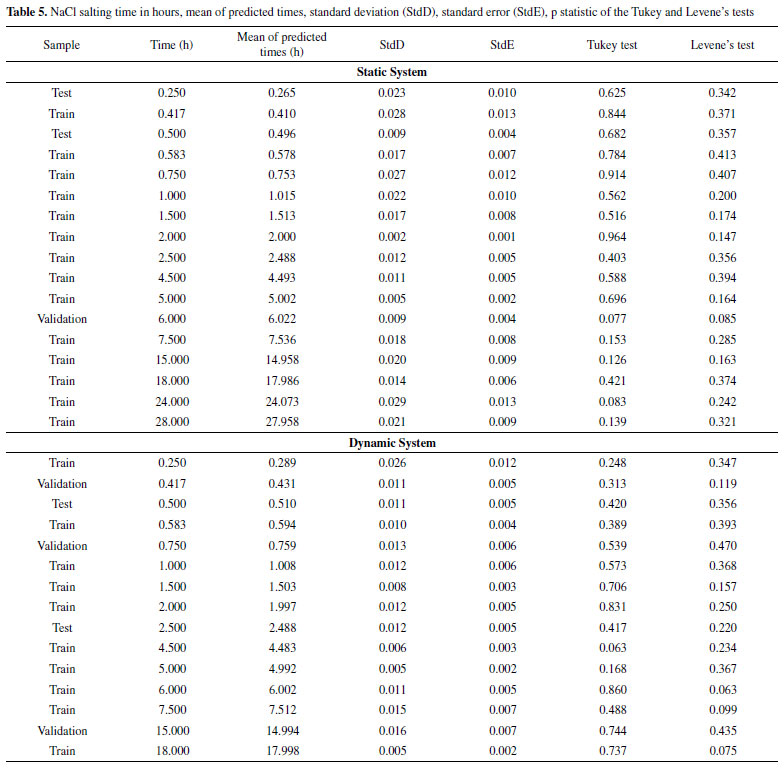

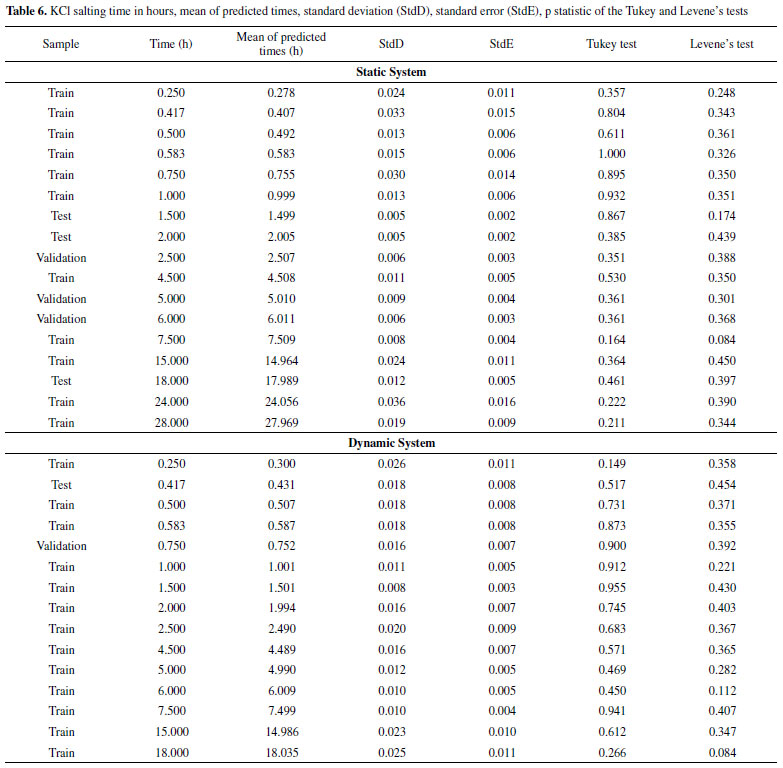

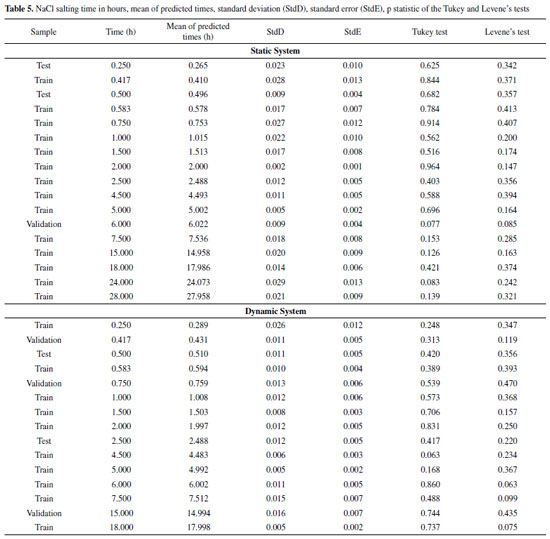

According to Tables 5 and 6, the Tukey test showed no significant difference, at the 5% level, between the averages of the times obtained by the 5 networks with the best performance for NaCl and KCl, showing that the model can be used for predictive purposes. Standard deviation and standard error values were low, making the statistical test very rigorous since the average values are very close to the times used in salting.









For the dependent variable (target), the variance analysis of the absolute deviation values of the respective mean times was performed using Levene's test. For all cases analyzed, the values were not significant, indicating that the hypothesis of homogeneous variances should not be rejected.

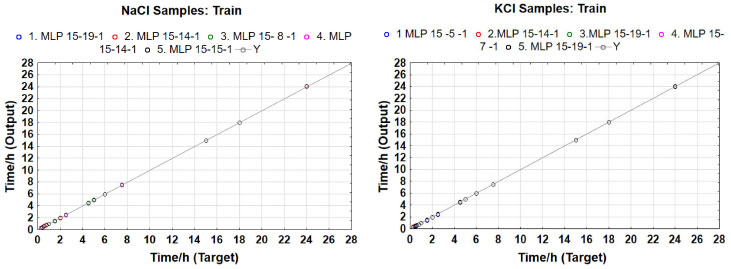

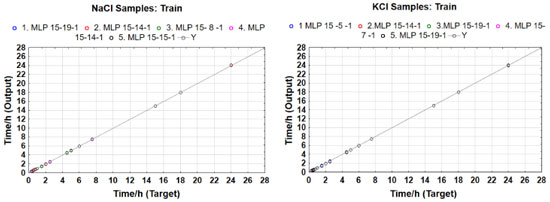

Figure 4 shows the low dispersion between predicted and experimental values of the salting time, during the training of the 5 best neural networks of the MLP type, which is a quality indication of the regression models.




Figure 4. Dispersion graphics between predicted and experimental values for salting time and training of the top 5 networks



CONCLUSIONS

In this work, the salting of Prato cheese by immersion in aqueous solution with and without stirring was studied, with partial replacement of sodium chloride by potassium salt, using computational tools such as 3D modeling by the finite element method (FEM) and neural networks of the SOM and MLP types, to evaluate the films formation on the cheese surface and to demonstrate its influence on mass transfer and diffusion time. The combination of these tools can be interesting to improve food processing techniques and help industries in cheese production.

The analysis using SOM and MLP networks showed that the film formed on the surface behaves differently during diffusion, depending on the analyzed position, and that the discrete variable Z, which represents the agitation condition of the system, influences the time of salting. The applied statistical tests showed that the regression model that estimates the salting time can be used for predictive purposes.
