INTRODUCTION

Whey is obtained from the coagulation of milk used in cheese production. It comprises water, proteins, lactose, minerals, and fats.¹ Whey is widely used in the food industry because it contains all essential amino acids, improves blood pressure, prevents cardiovascular diseases, and has antioxidant properties.^{2, 3} Whey protein can be divided into β-lactoglobulin (ranging from 48 to 58%), α-lactoalbumin (13 to 19%), caseinomacropeptide (12 to 20%), immunoglobulins (8 to 12%), bovine serum albumin (6 to 7%), lactoferrin (1 to 3%), and other proteins (0.5 to 1%).⁴

One of the main applications of whey proteins in food products is whey protein concentrates (WPC).⁵ However, these proteins are thermally destabilized due to their low denaturation temperatures, this denaturation can lead to product defects, as phase separation and loss of sensory characteristics may occur. For example, α-lactoalbumin has a denaturation temperature ranging from 30 to 60 ºC, depending on its variant.^{6, 7}

Microparticulation is an alternative method to enhance the thermal stability of whey proteins.⁸ In this process, heat is applied to denature and aggregate the proteins, followed by high-shear steps to break the aggregated proteins into smaller, more uniform particles.⁹

With this process, microparticulated proteins combine denatured and native proteins with controlled particle sizes ranging from 0.1 to 100 μm.^{10, 11} This native and aggregated protein combination increases thermal treatment resistance because it contains fewer free thiol groups, which are responsible for protein denaturation.¹²

Microparticulation modifies the whey protein structures, resulting in products with functional characteristics distinct from native whey protein,¹³ such as emulsifying activity and gelation properties.¹⁴ These products can provide textural sensations similar to fat and are used as fat substitutes in food products, including concentrated fermented milk, ice cream, desserts, and processed cheeses.^{15, 16}

Several studies have quantified the WPC proteins used as ingredients, which are the main focus of this study. One study¹⁷ quantified WPC to understand how pasteurization, membrane concentration, and spray drying modified the protein concentration in the final powder obtained. Another¹⁸ sought to understand how heat treatment can modify the microstructure, denaturation, and functional properties of goat whey proteins. Finally, Buggy et al.¹⁹ studied how protein concentration and pH interfere with WPI (isolated why protein) protein denaturation under heat treatment. However, a methodology that quantifies β-lactoglobulin and α-lactoalbumin via high-performance liquid chromatography (HPLC) before and after microparticulation has yet to be reported.

Based on this premise, this study sought to develop an HPLC methodology to quantify the two main WPC protein fractions in liquid and powdered form before and after microparticulation and at various protein concentrations. Additionally, we calculated the denaturation percentage of each protein fraction.



EXPERIMENTAL

Reagents, chemicals, standards

Analytical standards of β-lactoglobulin (CAS number: 9045-3-2) and α-lactoalbumin (CAS number: 9051-29-0) were obtained from Sigma-Aldrich (São Paulo, Brazil), trifluoroacetic acid (TFA) and acetonitrile from Merck (São Paulo, Brazil). Water was purified using the Milli-Q system (Millipore, USA).

HPLC equipment

The analytes were separated and quantified using HPLC (Waters, model 1252, Milford, USA), a UV-Vis detector (DAD, diode array detector), and a binary pump. The chromatographic separation employed a Phenomenex column Luna (5 µm, 250 mm × 4.6 mm), kept at 40 ºC. The injection volume was 20 μL; β-lactoglobulin and α-lactoalbumin were detected at a wavelength of 214 nm.

Chromatographic conditions

Gradient elution was performed using a mixture of two solvents at a flow rate of 0.5 mL min^-1. The mobile phase comprised of 0.1% TFA in ultrapure water (solvent A) and 0.09% TFA in 90% acetonitrile:10% ultrapure water (solvent B). A gradient program was initiated as follows: 0-3 min, 20-40% B; 3-5 min, 45-45% B; 5-7 min, 45-50% B; 7-9 min, 50-80% B; 9-14 min, 80-20% B; and 14-15 min, 20-20% B.

Validation procedure

For method validation, the selectivity, linearity, precision (intra- and inter-assay), accuracy, limit of detection (LOD), and limit of quantification (LOQ) were evaluated following the criteria of RDC No. 166, from July 24, 2017, Brazil.²⁰ Selectivity was proven by the retention time equivalence for β-lactoglobulin and α-lactoalbumin as external standards and by the peak area increase in fortified samples. Selectivity was also evaluated for the solutions used in sample preparation and mobile phase; the absence of analytical response at the retention time of β-lactoglobulin and α-lactoglobulin proved it. The analytical curves were constructed using five points, each measured three times, to a concentration ranging from 100 to 300 µg mL^-1. The LOD and LOQ were calculated based on the standard deviation of the response and slope using the following formulas:

where σ is the standard deviation of the Y-axis intercept, and S is the slope of the calibration curve.

The sample dilution integrity was validated in the ratio of 1:5 to a final concentration of 200 µg mL^-1 of β-lactoglobulin and α-lactoalbumin. This parameter was validated according to ICH guideline M10.²¹

Samples

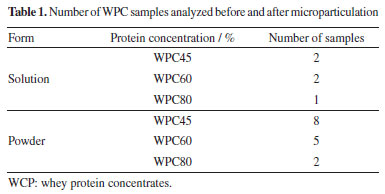

WPC samples of various concentrations (WPC45%, WPC60%, and WPC80%) were analyzed before and after microparticulation. Liquid and powder samples were obtained from a partnering company. The samples analyzed are listed in Table 1.





Sample preparation for RP-HPLC analysis

The liquid samples were centrifuged (22, 000 × g) using a Sigma 2K15 (Sigma, Barueri, São Paulo) for 10 min at 5 ºC. Solutions of the powdered samples were prepared at 2% concentration (m v^-1) and then centrifuged under the same conditions as the liquid samples. After centrifugation, all samples were filtered through 0.22 μm pore syringe filters for subsequent HPLC analysis. Depending on the protein fraction content determined by analysis, the samples were diluted when necessary to meet the working range of the validated analytical curve.

Percentage calculation of additional denaturation from microparticulation process

To determine the denaturation percentage for β-lactoglobulin and α-lactoalbumin, the Equation 3 was applied:⁵

The additional denaturation percentage caused by microparticulation is a relationship between each protein fraction concentration in whey and microparticulated whey. The protein concentration in the whey represents the native protein amount in that product. Whey exhibits some protein denaturation percentage due to pre-processing; this pre-existing denaturation was not considered in the calculation. The protein concentrations in the microparticulate are the native protein amounts remaining after processing.



RESULTS AND DISCUSSION

Separation, identification, and quantification of serum proteins

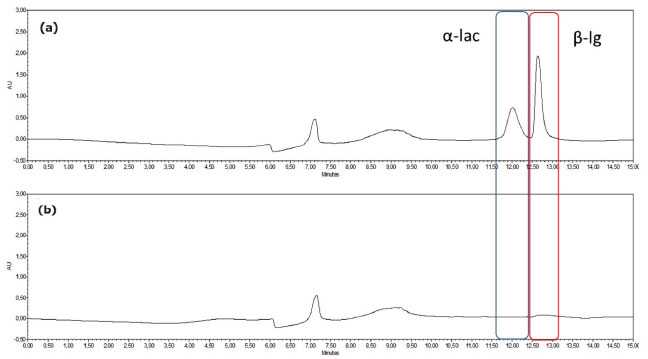

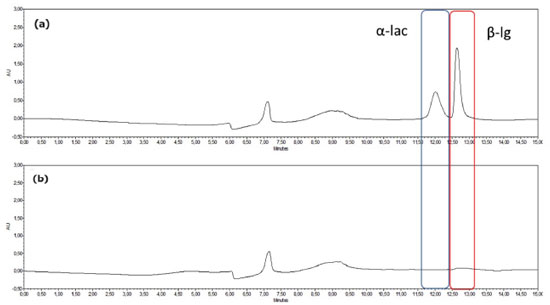

Selectivity was the first parameter evaluated during method validation by comparing the retention time of the diluent solution chromatograms with that of the fortified samples, ensuring that the peak response was exclusively for the compounds of interest, as shown in Figure 1.

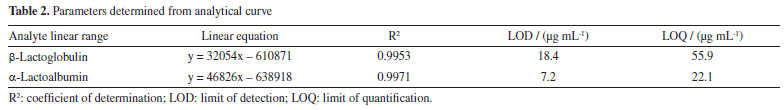

Linearity of the analytical standards β-lactoglobulin and α-lactoalbumin was determined by constructing analytical curves, from which the respective coefficients of determination (R²) were obtained (Table 2). All analyses were performed in triplicate.





The LOD and LOQ were calculated according to Equations 1 and 2 and determined by a method based on the response of three replicates of an analytical curve (Table 2).

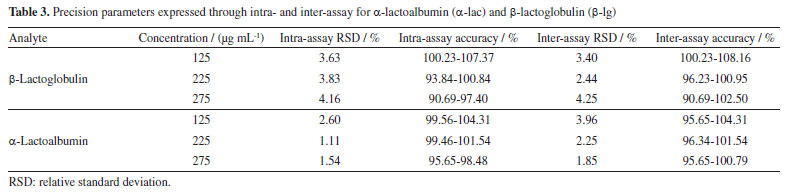

Precision parameters were evaluated using intra- and inter-assays. The intra-assay was undertaken by analyses of six analytical standard replicates at identical concentrations of 125, 225, and 275 µg mL^-1 on the same day under the same experimental conditions. For the inter-assay, solutions with identical concentrations were analyzed on two different days. The data obtained were expressed by estimating the relative standard deviation (RSD) to be less than 5%. The accuracy was in the range of 90-110% associated with precision values, as shown in Table 3.





Table 4 shows the effect of sample dilution on the theoretical concentration compared to the analyzed concentration. The European Medicines Agency²¹ stipulates that the correlation coefficient should be < 15%. The results for both analytes were below the specified values, indicating that the dilution effect produced no interference in the samples.





Quantification of β-lactoglobulin and α-lactoalbumin in WPC samples

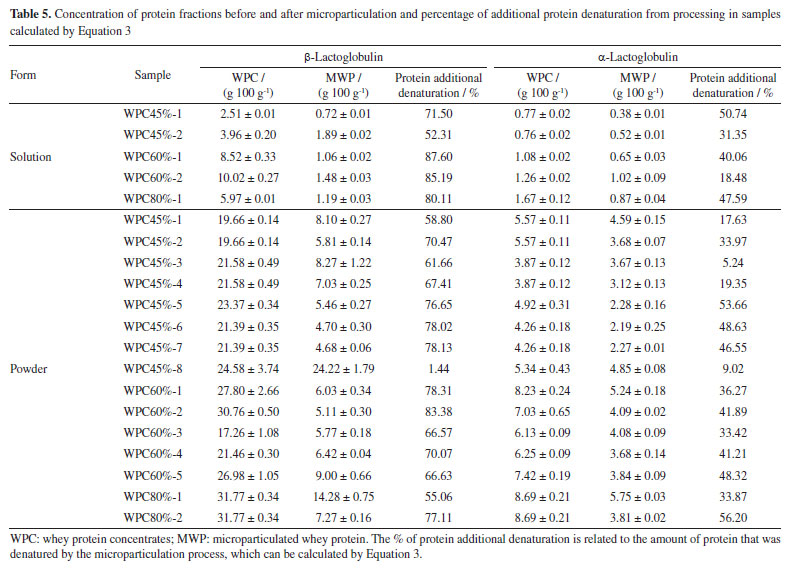

WPCs in solid and liquid forms were analyzed before and after microparticulation at protein concentrations of 45, 60, and 80% (m m^-1). The number of specific samples for each concentration is presented in Table 1 and described in "Sample preparation for RP-HPLC analysis" sub-section. Table 5 shows the protein fraction concentrations for each analyzed sample and their denaturation percentages.





After powder sample reconstitution (2% m v^-1), higher protein fraction concentrations were observed compared with the liquid products. The β-lactoglobulin concentration (48-58%) in the samples was higher than that of α-lactoalbumin (13-19%).^{6, 7}

The concentration of each protein fraction in the samples after microparticulation decreased because of protein denaturation.²² Differences in the sample concentrations before microparticulation can be attributed to the raw materials used. However, the difference in the sample protein concentrations after microparticulation may have resulted from variations in the methods employed, as the collaborating industry did not provide these details.

The denaturation percentage was calculated using the values obtained for each protein fraction. In general, β-lactoglobulin showed a higher denaturation percentage than α-lactoalbumin, except in the WPC45%-1 sample. The denaturation values for α-lactoalbumin ranged from 5.24 to 56.20% and for β-lactoglobulin from 1.44 to 87.50%. This significant variation in the denaturation percentage may be related to microparticulation process factors, such as pH, protein and salt concentrations, heat treatment, and shear rate.²³ Therefore, our development of an analytical method to quantify α-lactoalbumin and β-lactoglobulin can contribute as a guide to the microparticulation process.



CONCLUSIONS

We developed and validated a methodology for quantifying α-lactoalbumin and β-lactoglobulin in commercial and laboratory-produced microparticulated WPC samples. Statistical analyses demonstrated that the method was accurate, selective, linear, and precise, with a recovery rate exceeding 90%.

The commercial samples exhibited significant variations in the denaturation percentage during microparticulation, which can be attributed to the microparticulation parameters employed.



ACKNOWLEDGMENTS

The authors are grateful for the financial support provided by the Brazilian research funding agencies FAPEMIG (APQ-01169-22), CNPq (MAI-DAI 403602/2020-3 and 307334/2020-1) and CAPES (001).
